5pcs 16 Road PWM/Servo/Steering Gear Drive Plate Controller Module Robot IIC PCA9685

20 available / new

R490.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641112163

Overview:

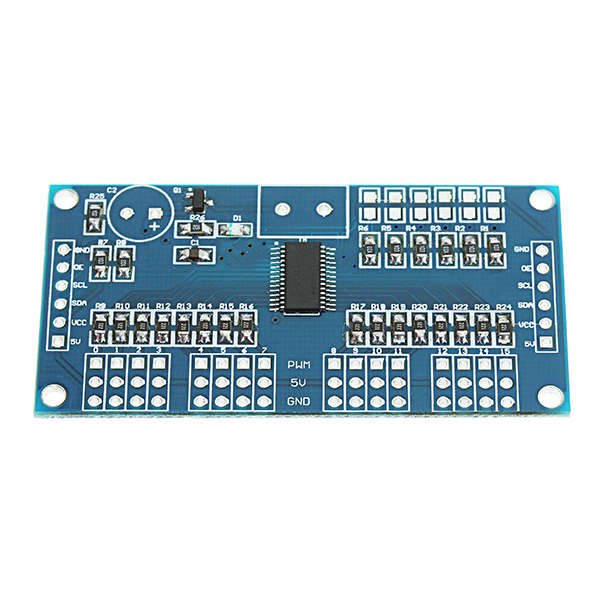

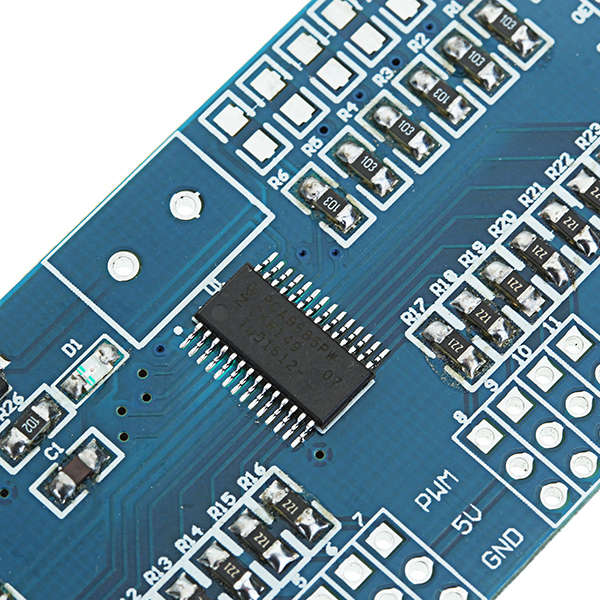

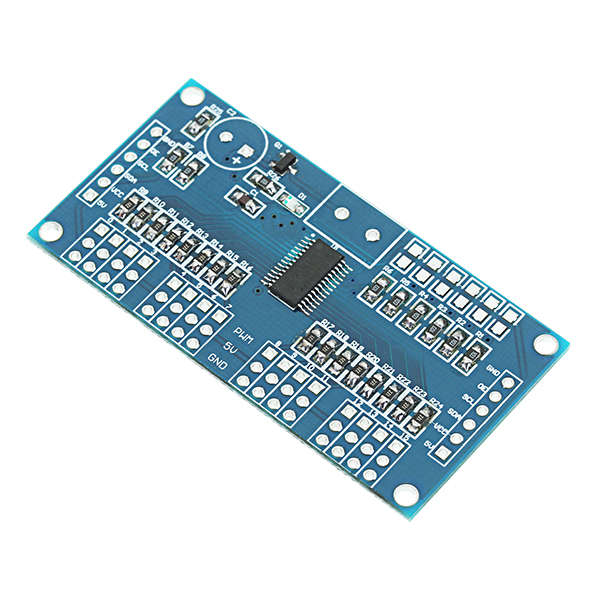

PCA9685 module could control 16 road by PWM, every road programmable output for shut, open. Through the I2C communication.

The function and characteristics:

a Working voltage: 2.3-5.5V
a Communication protocol: I2C
a Cannel number: 16
a Resolution ratio: 12 bit
a V+ Input: According to peripheral voltage, Maximum 6V

Feature:

a The board size: 63.1*31.8mm

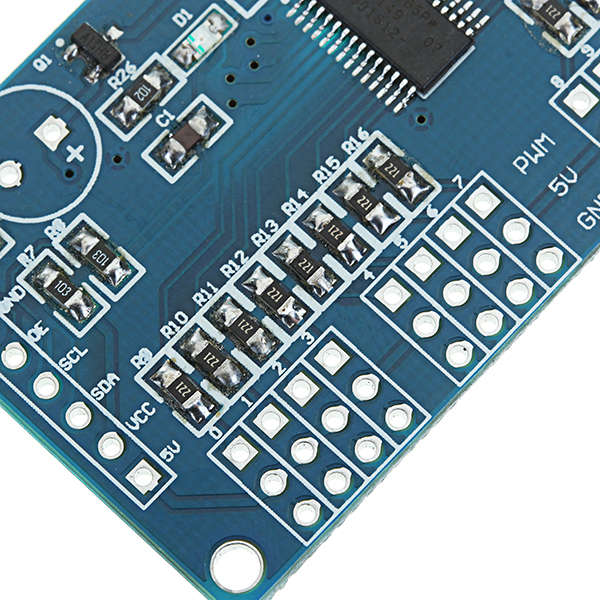

a The board function description:
VCC: The working voltage of the module
GND: Ground
SCL, SDA: I2C communication interface
V+: Steering gear and other peripheral driving voltage
PWM: PWM signal output

VCC connect to the 5V, GND connect to the GND, SDA connect to A4, SCL connect to A5, steering gear with 0-15 arbitrary channel connection, burn write code , steering gear began to turn it.

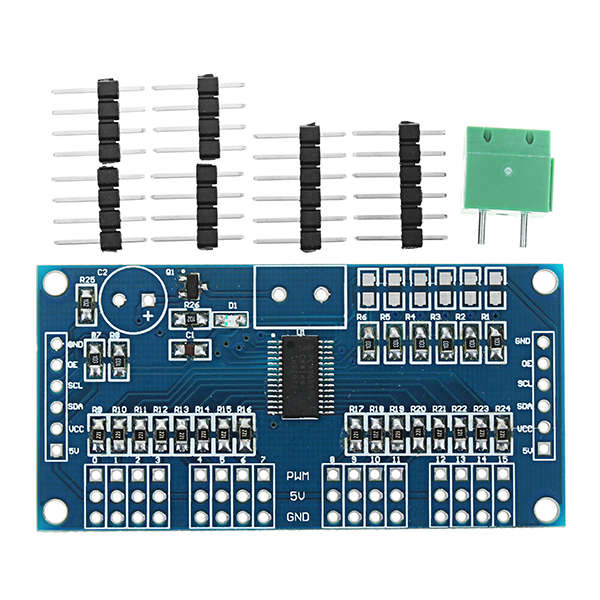

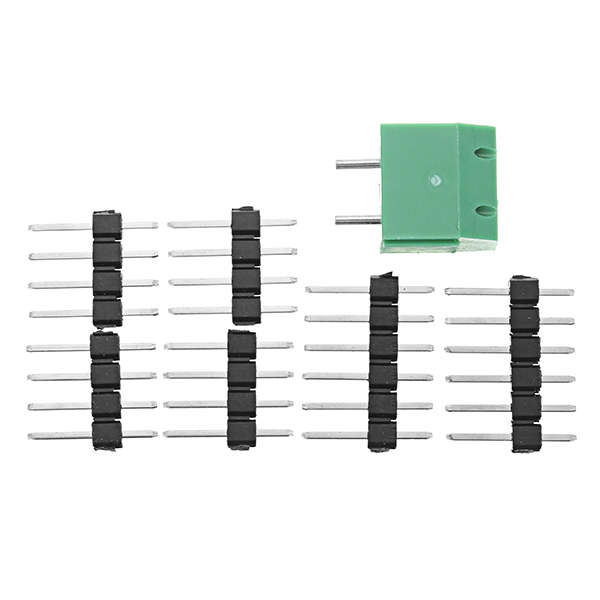

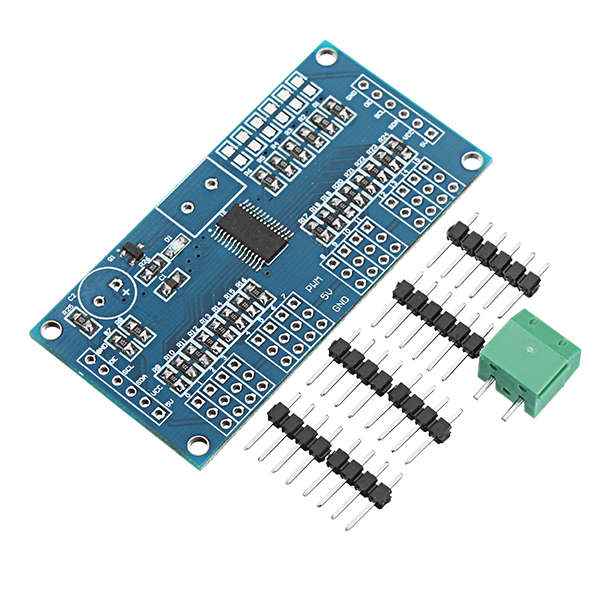

Package included:

5 x 16 Road PWM/Servo/Steering Gear Drive Controller
