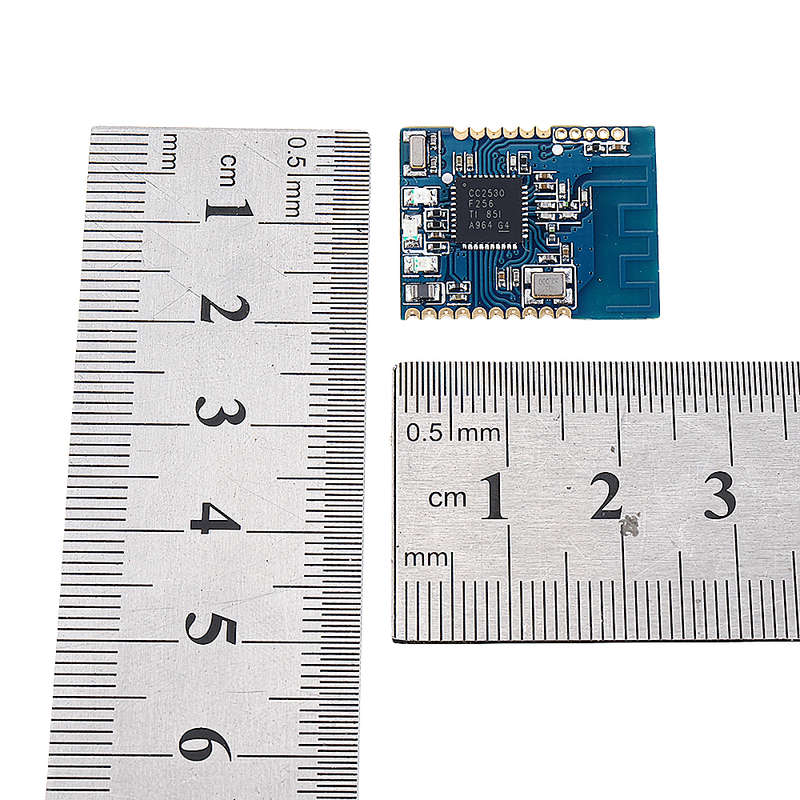

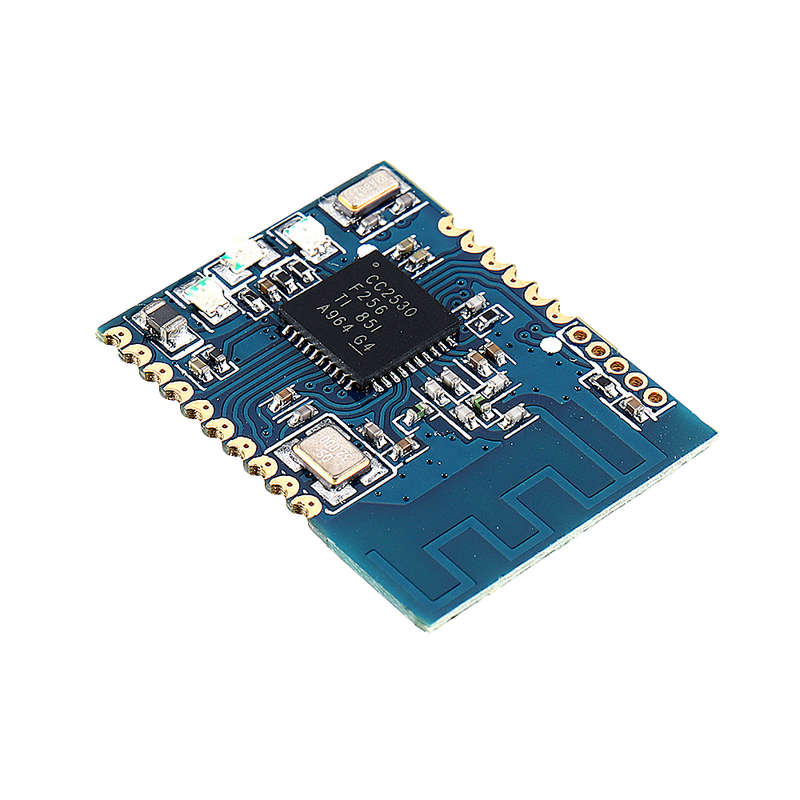

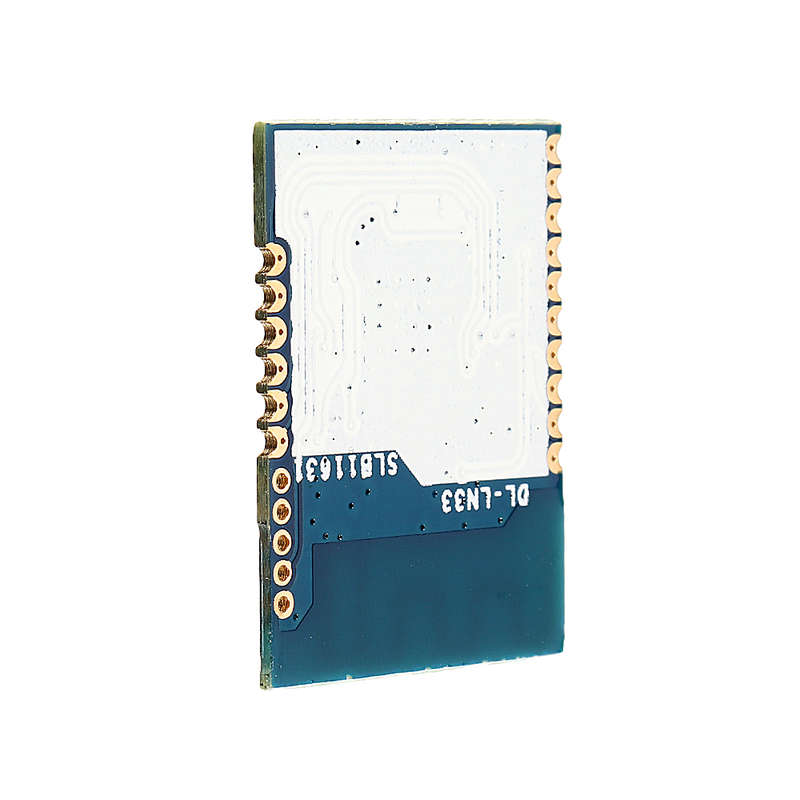

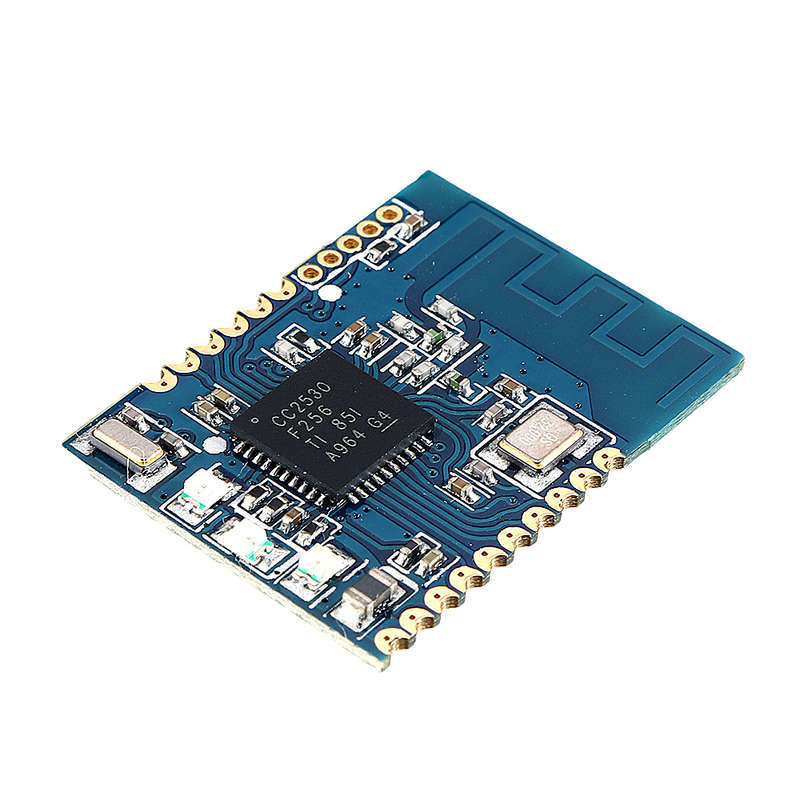

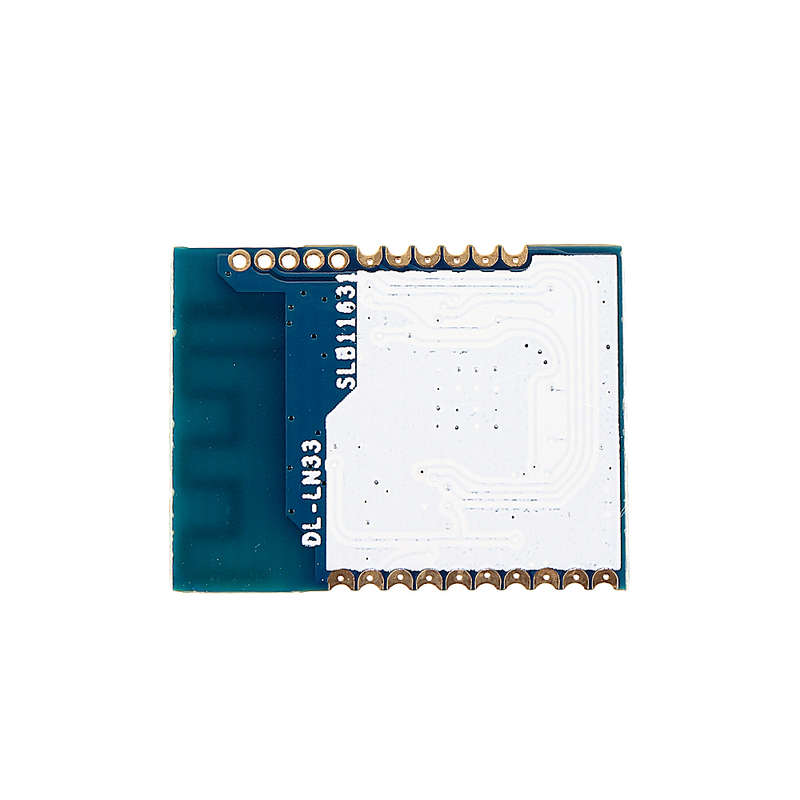

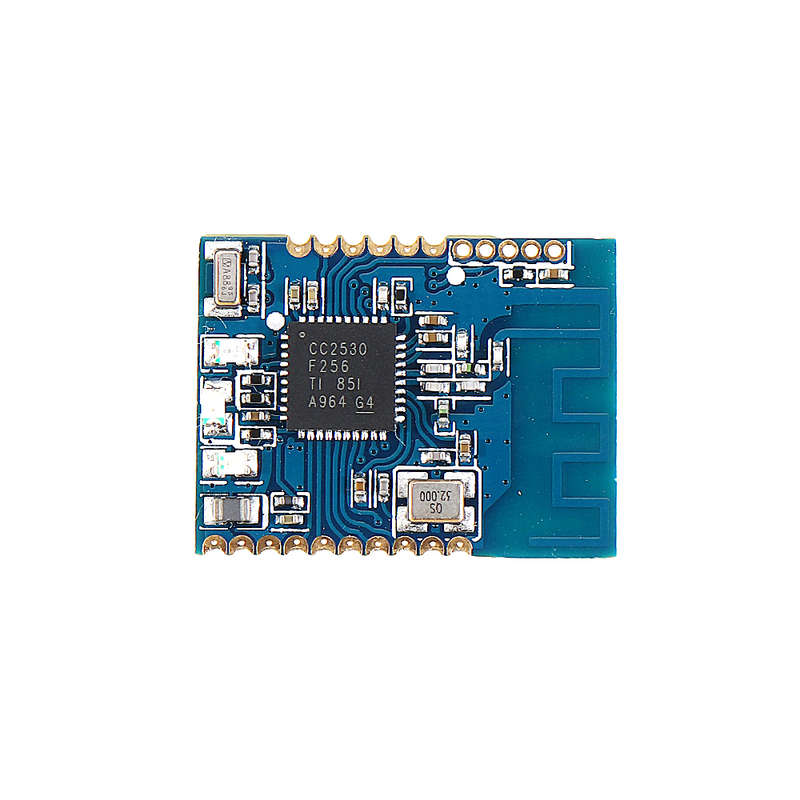

5pcs 2.4G DL-LN33 Wireless Networking Board UART Serial Port Module CC2530

20 available / new

R784.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641112193

Feature:

Num.	Parameter	Parameter value
1	Product number	DL-LN33
2	Chip selection	CC2530
3	Working frequency	2400~2450MHz (16 channels total)
4	Communication Interface	UART serial port (supports 13 baud rates, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 230400, 125000, 250000, 500000)
5	Self-organizing network hops	<=15 jump
6	Single hop transmission distance	70 meters (out of the air, no occlusion test)
7	Number of points that can be accommodated	The typical value is 190. When the network tends to be dense, the number of nodes decreases, and the minimum value is 96.
8	MAX packet length	63Byte (including port address information)
9	Transmission capacity	The transmission rate is higher when only one node sends data: Because the routing information of the transmitted packet occupies a certain bandwidth, the longer the length of each packet, the higher the transmission efficiency. 2400 Bit/s when each package contains 3 bytes of data. 10KBit/s when each package contains 30 bytes of data.
13	MAX send rate	250KBit/s
14	Packet retransmission times	Up to 15 times, at least 5 times when the network load is high
15	Air delay	Single-hop between nodes, less than 10mS
16	Transmit power	4. 5dBm
17	Operating Voltage	2. 5V~3. 6V
18	Working current	Less than 30mA
19	Antenna interface	PCB antenna

Pin Descriptions:

Pin name	Pin position	Significance
NoUsed	1, 2,10,11,13	Not used, please keep it empty (empty refers to not connected to any circuit)
TestMode	3	Test mode, when working in normal mode in empty, grounding works in test mode. Please use it empty when the user is using it.
TestTx	4	Enter test information in test mode, which will be output as a controllable IO port when the user uses it.
TestRx	5	Enter test information in test mode, which will be output as a controllable IO port when the user uses it.
Gnd	6, 9,16	Ground
Vcc	7,8	Power supply
BaudReset	12	If this pin is grounded first and then the module is started, the module will force a 115200 default baud rate to operate. In this mode, the baud rate of the module can be read or set. The baud rate read is the baud rate previously set by the module, not 115200. If the baud rate setting is not performed, the module will be restarted again. Work with the previously set baud rate.
Tx	14	Uart output of the module
Rx	15	Uart input of the module
