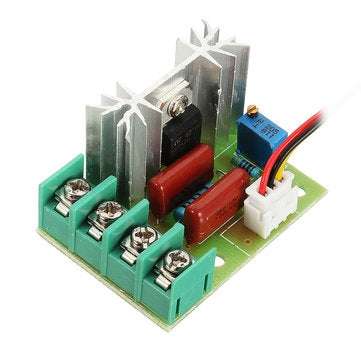

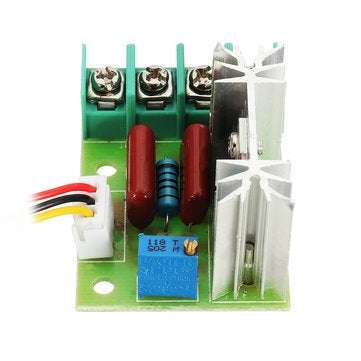

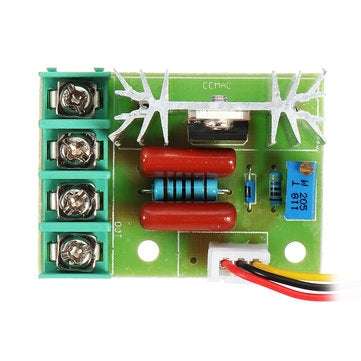

5pcs 2000W Thyristor Governor Motor 220V Regulating Dimming Thermostat Module External Potentiometer

Tips: This product needs to be connected to the load to adjust voltage, such as old-fashioned incandescent lamps or fans! Feature: Use voltage: AC 220V Maximum power: 2000W Voltage regulation: AC 50-220V Specification size: High temperature resistant FR-4 circuit board Circuit board size: about 36 x 48mm Outer size: 48 x 60mm (knob direction) x 28mm (high) Control silicon withstand voltage up to 1200 volts / current 25A 1.6mm thick epoxy copper clad laminate This product is suitable for: Using new bidirectional high-power thyristor, because the current can reach 25 amps, which solves the problem of overcurrent caused by the electric resistance of the electric furnace wire being too small in the case of cooling; the output voltage of the mains can be conveniently adjusted. 90-220 volts can be adjusted freely for use with electrical appliances. Such as: Electric furnace, water heater heating, lighting dimming, small motor speed, electric iron temperature adjustment. Thereby achieving the effects of dimming, temperature regulation and pressure regulation. Large electrical appliances that can be used with electrical power less than 2000 watts are generally large enough to be used in general household appliances or small factories. (Inductive or capacitive load power should be reduced, this regulator is equipped with two-way high-power thyristor, the potentiometer has a nut, can be used without any components, very convenient and practical). Package includes: 5 x Dimming Thermostat Module
