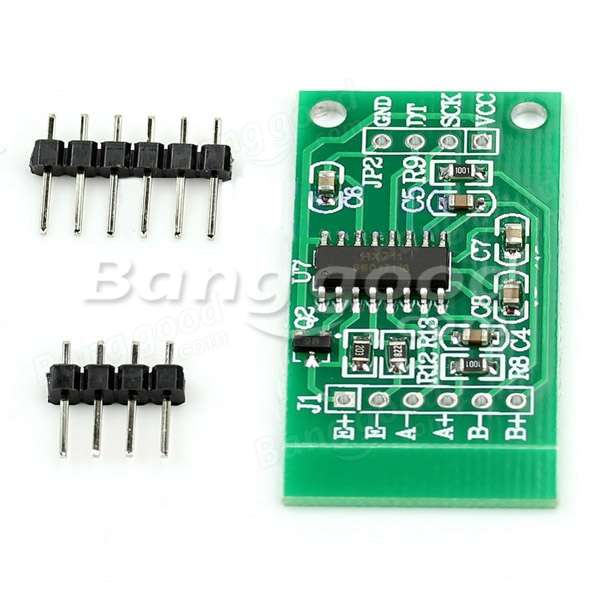

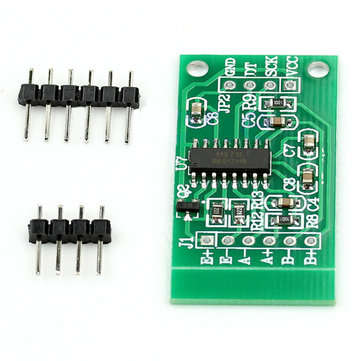

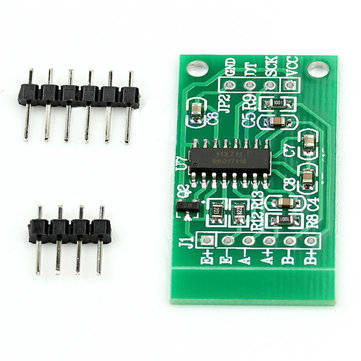

5Pcs 24 Bit AD HX711 Weighing Pressure Sensor Module For Arduino

5Pcs 24 Bit AD HX711 Weighing Pressure Sensor Module For Arduino

Description:

The module uses 24 high-precision A / D converter chip HX711, is designed specifically for high-precision electronic scales, two analog channel input, the internal integration of 128 programmable amplifier gain of. The input circuit can be configured for electrical bridge (bridge pressure as the pressure weighing) sensor mode is ideal for high-precision, low-cost sampling front-end module

Specification:

Module Operating voltage: 4.8V-5.5V
Typical current: 1.6mA
Size: 2.9 x 1.7 x 0.4cm
Typical operating current: <1.7mA, shutdown current: <1?A
Operating voltage range: 2.6V ~ 5.5V
Operating temperature range: -20 to +85 ¿¿¿C

Package included:

5 x HX711 Weighing Pressure Sensor

<

<
