5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection 5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection 5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection 5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection
5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection 5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection 5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection 5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection

5Pcs 3 String 12V 18650 Lithium Battery Protection Board Peak 40A Overcurrent Overcharge Protection

New 20 available
R560.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654087349
Feature:

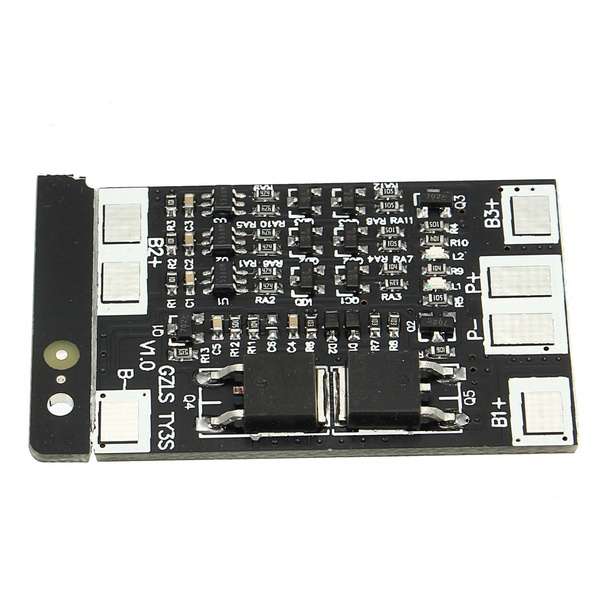

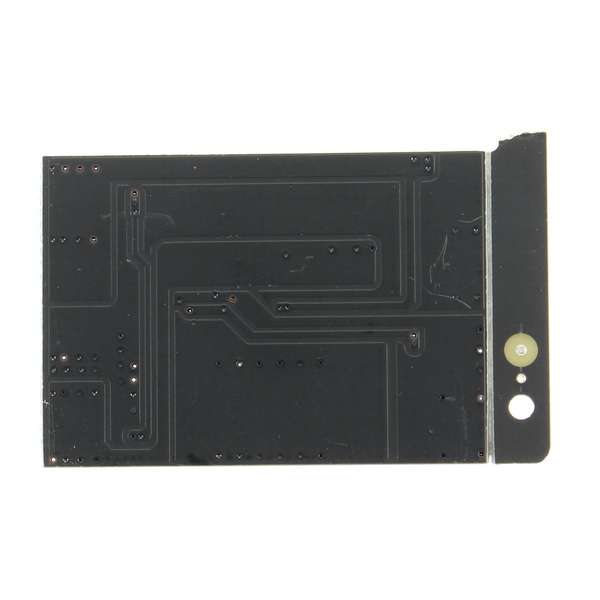

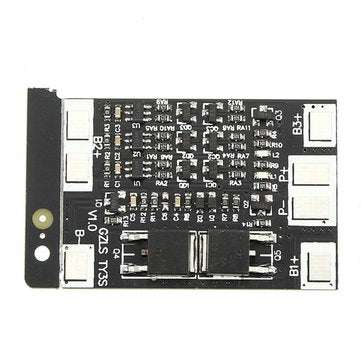

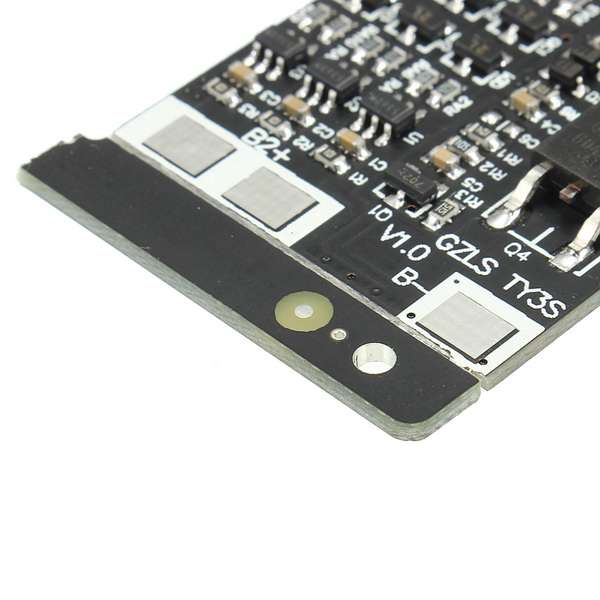

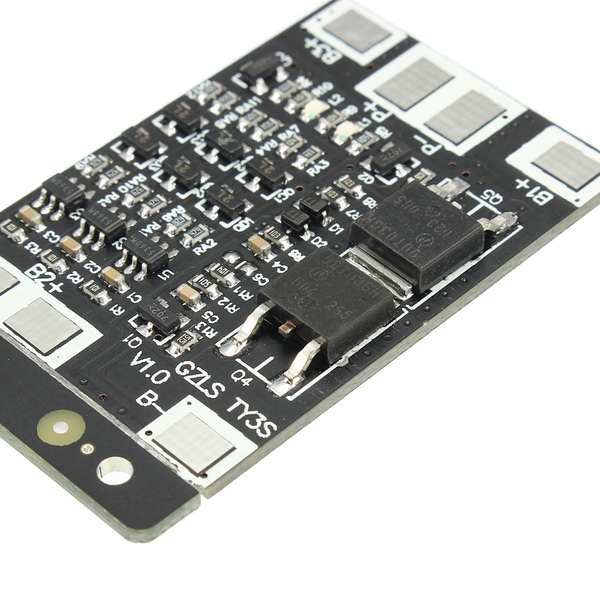

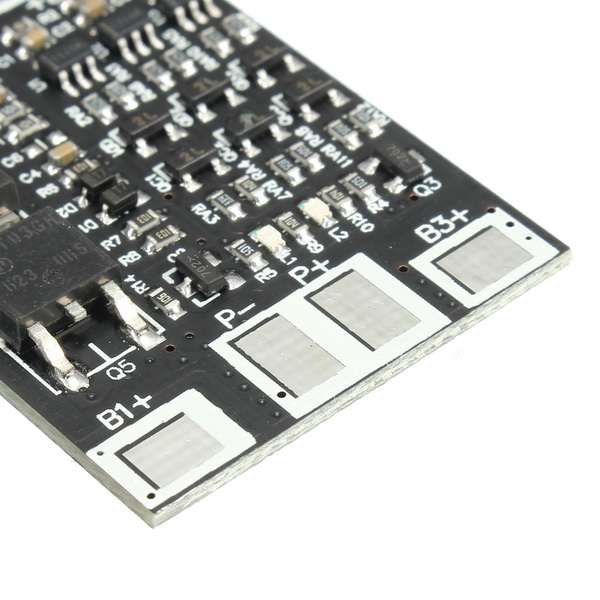

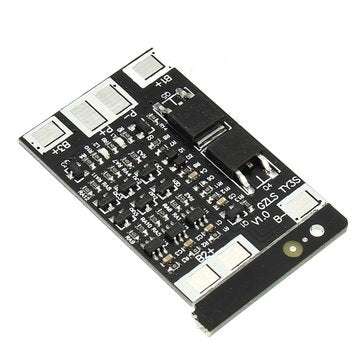

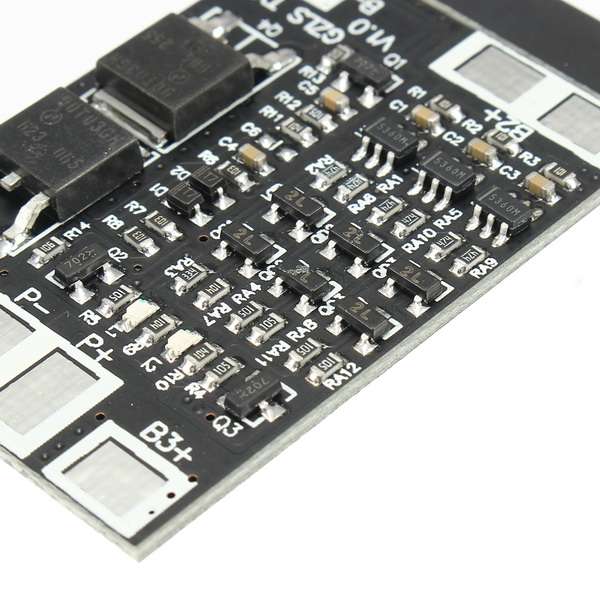

This protection board is 3 string 12V lithium battery protection board, can be applied to 12V lithium battery (Ternary lithium, lithium acid, lithium cobalt oxide, polymer lithium battery)
The board comes with: short circuit protection function, overcharge protection function, over discharge protection function.
Low conduction internal resistance, using a large current, high voltage discharge MOSS, stable quality, reliable quality.

Protection project Polymer / lithium manganate / lithium / lithium cobalt oxide protection board parameters lithium iron phosphate protection board parameters
Single group overcharge protection voltage 4.25V ± 0.005V 3.75V ± 0.05V
Single group overcharge recovery voltage 4.18V ± 0.005V 3.55V ± 0.05V
Overcharge protection delay 500ms ± 50ms 500ms ± 50ms
Single group over discharge protection voltage 2.7V ± 0.5V 2.0V ± 0.05V
Single group over discharge recovery voltage 3.0V ± 0.05V 2.5V ± 0.05V
Over discharge protection board delay 500ms 500ms
Short circuit protection current 50A 50A
Short circuit protection delay 500ms 500ms
Short circuit protection recovery mode disconnect the load automatically restored disconnect the load automatically restored
Rated operating current 8A or less 8A or less
Charge current a8A a8A
Equalization voltage 4.18V ± 0.005V 3.65V ± 0.005V

Package includes:

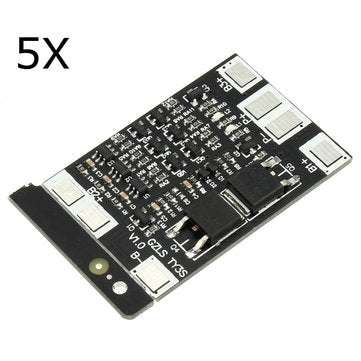

5 x protection board
















, , , , , ,
