5pcs 315MHZ High Power Wireless Transmitter Module 3000M Long Range ASK Transceiver Board
+2

5pcs 315MHZ High Power Wireless Transmitter Module 3000M Long Range ASK Transceiver Board

20 available / new
R769.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643368261
Feature:

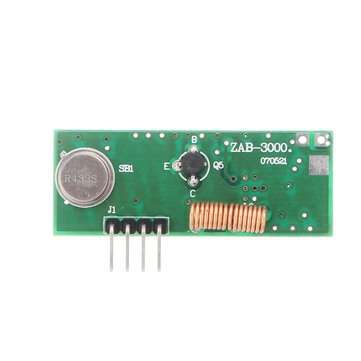

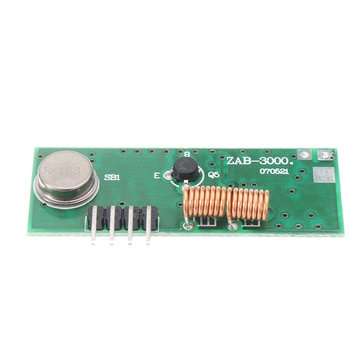

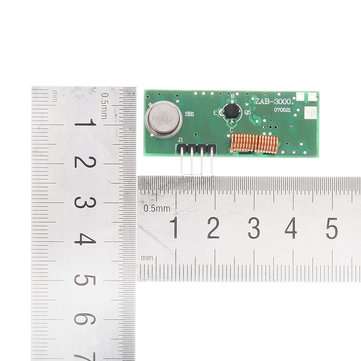

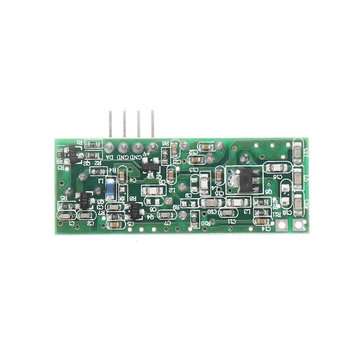

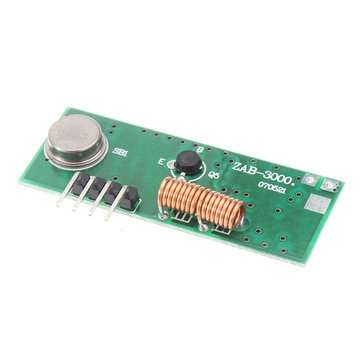

Product Name: Wireless 3000m Transmitter Module Product type ZAB-3000 (without coding) Dimensions : 45mm*17mm*6.2mm Working voltage: DC 9V ~12V Working current: 200~220mA Operating frequency: 315MHz Transmit power: >10mw Launch distance: 2000-3000 meters Radiated power: 1.5 W Modulation method: ASK Quiescent current: 0uA

Rated parameter Symbol Value
DC supply voltage VDD-VSS 5V
Storage temperature range (TS) TSTG -12ᆪC to 75ᆪC
Welding temperature +260ᆪC

PIN Description
1 ANT RF signal input pin, this pin should be connected to the antenna
2 VSS Positive power supply
3/4 GND Negative power supply
5 DATA Data signal output, compatible with CMOS levels

Package includes:

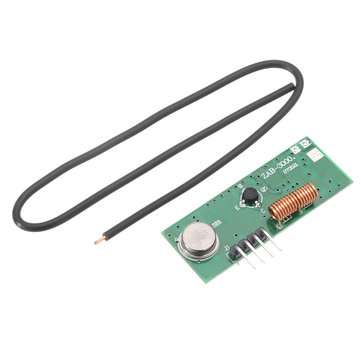

5 xWireless 3000m Transmitter Module
