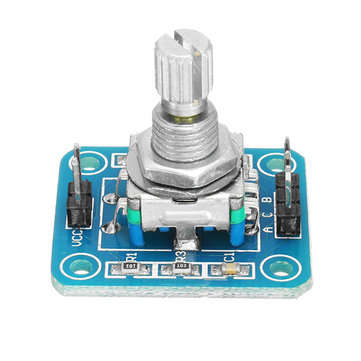

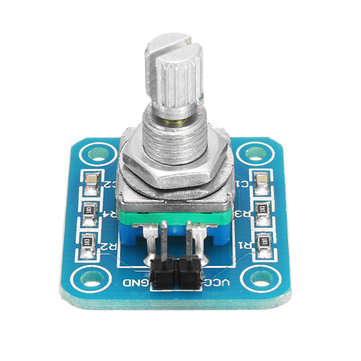

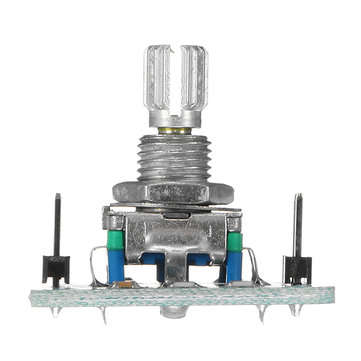

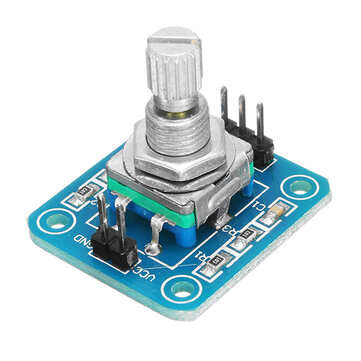

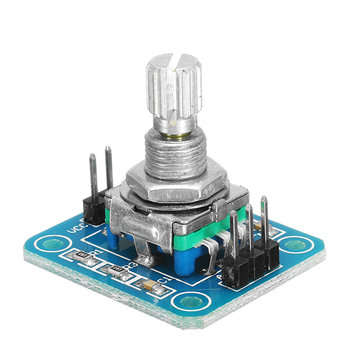

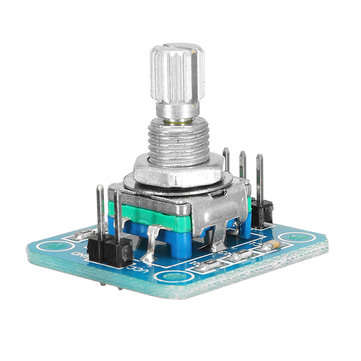

5Pcs 360 Degree Rotary Encoder Module Encoding Module Geekcreit for Arduino - products that work wit

Functional characteristics and technical parameters:
?
1)Nominal voltage: DC 5V
2)Wire A, B: 0.5mA (Max 5mA; Min 0.5mA)
3)Common wire: 1mA (Max 10mA; Min 0.5mA)
4)Temperature range: -30a???to+80a??
5)Output signal:
A , B phase position output square wave, when clockwise rotation, A phase position? pull ahead B phase position? 90 ?ﾣ,
when anti-clockwise, B phase position pull ?ahead A phase position? 90??ﾣ.
Size: 27mm*24mm

?

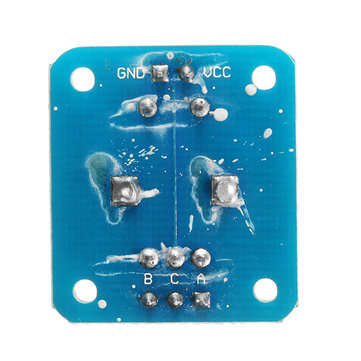

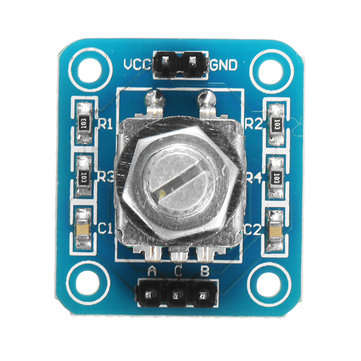

Pin introduction:
?
(1)2P port: VCC (DC 5V)? GND
(2)3P?signal output port: A phase position, B phase position, C(GND).
?
Package included:
?
5 x?360 Degree Rotary Encoder Module For










, , , , ,
