Parameters:
Battery voltage is greater than N3.3V,1 battery on(Note: N is the number of battery cells)(The following data is a reference value, there will be an error range of about 2%,Do not take pictures that require high accuracy)
Battery voltage is greater than N3.5V,2 bars on Battery voltage is greater than N3.7V,3 bars on Battery voltage is greater than N3.9V,4 bars on Battery voltage is less than N3.3V, 4 segments are all off, indicating that the battery is below 3.3V, and it is time to charge the battery. Digital tube color:Outside framered,Inner display gridyellow-greenwithblue2 options, The battery is fully charged and 4 bars are fully lit
4V lead-acid voltage range: Battery voltage is greater than3.3V,1 battery on Battery voltage is greater than3.5V,2 bars on High battery voltagein3.7V,3 bars on High battery voltagein3.9V,4 bars on
6V lead-acid voltage(2 strings of lithium iron phosphate batteries can be used) Battery voltage is greater than5.6V,1 battery on Battery voltage is greater than5.9V,2 bars on High battery voltagein6.2V,3 bars on High battery voltagein6.6V,4 bars on
12V lead-acid voltage range:(4 strings of lithium iron phosphate batteries can be used) Battery voltage is greater than11.0V,1 battery on Battery voltage is greater than11.8V,2 bars on High battery voltagein12.3V,3 bars on High battery voltagein13.1V,4 bars on
24V lead-acid voltage range:(You can use 8 strings of lithium iron phosphate batteries) Battery voltage is greater than22.3V,1 battery on Battery voltage is greater than23.5V,2 bars on High battery voltagein24.7V,3 bars on High battery voltagein26.3V,4 bars on
36V lead-acid voltage range:(12 strings of lithium iron phosphate batteries can be used)note:36V lead acid Over 43V will burn out Battery voltage is greater than33.9V,1 battery on Battery voltage is greater than35.9V,2 bars on High battery voltagein37.9V,3 bars on High battery voltagein39.9V,4 bars on
48V lead-acid voltage range: (You can use 15 strings of lithium iron phosphate batteries)note:48V lead acid Over 59V will burn out Battery voltage is greater than43V,1 battery on Battery voltage is greater than45.6V,2 bars on High battery voltagein48.2V,3 bars on High battery voltagein50.9V,4 bars on

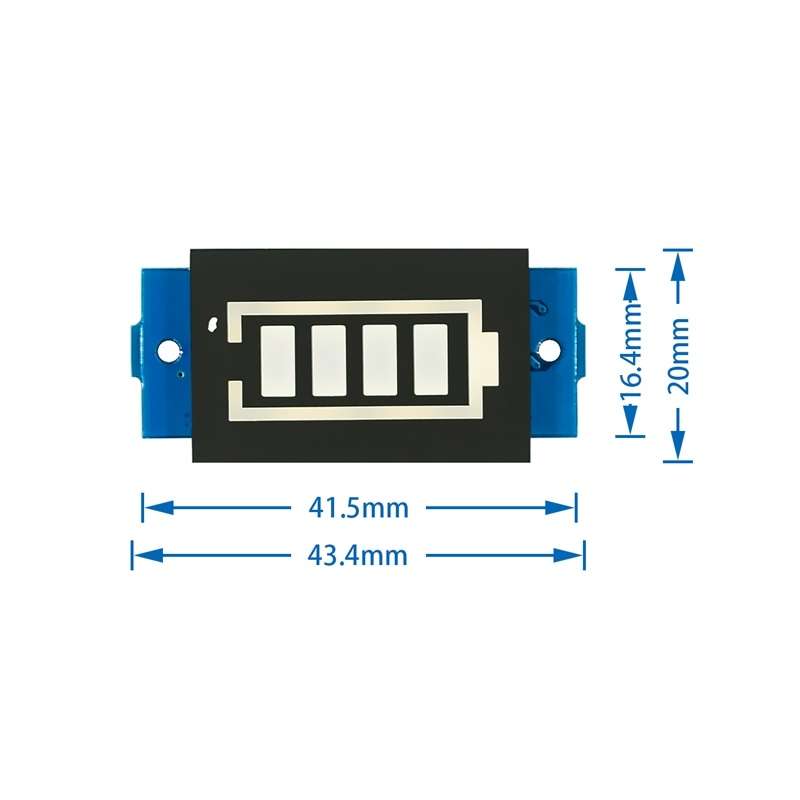

Note: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test,The digital tube displays real-time battery power. This model is not waterproof, please be waterproof if you use it outdoors, because the electronic components need to be used in a dry environment. Lithium battery NiMH battery Available power display panel.
Package included:
5 x Lithium Battery Power Indicator
