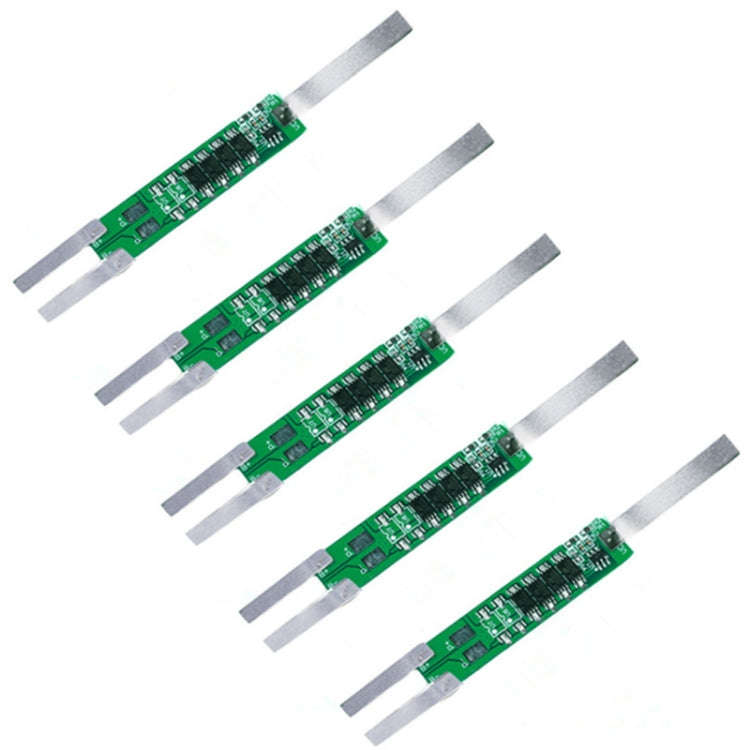

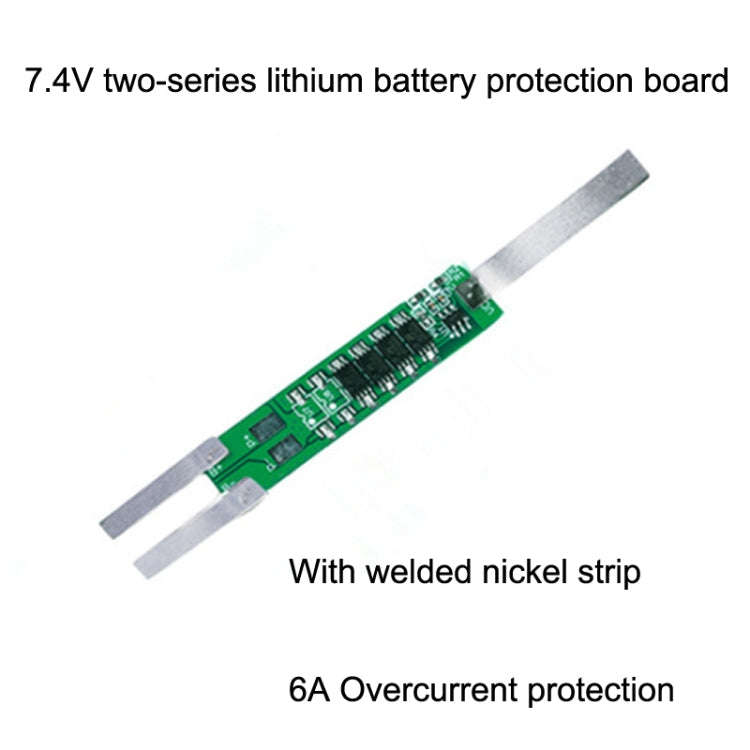

5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti... 5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti... 5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti... 5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti... 5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti...
5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti... 5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti... 5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti... 5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti... 5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti...

5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protecti...

New 10 available
R270.09
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0603761501A
Bob Shop ID
628922709

Parameter:

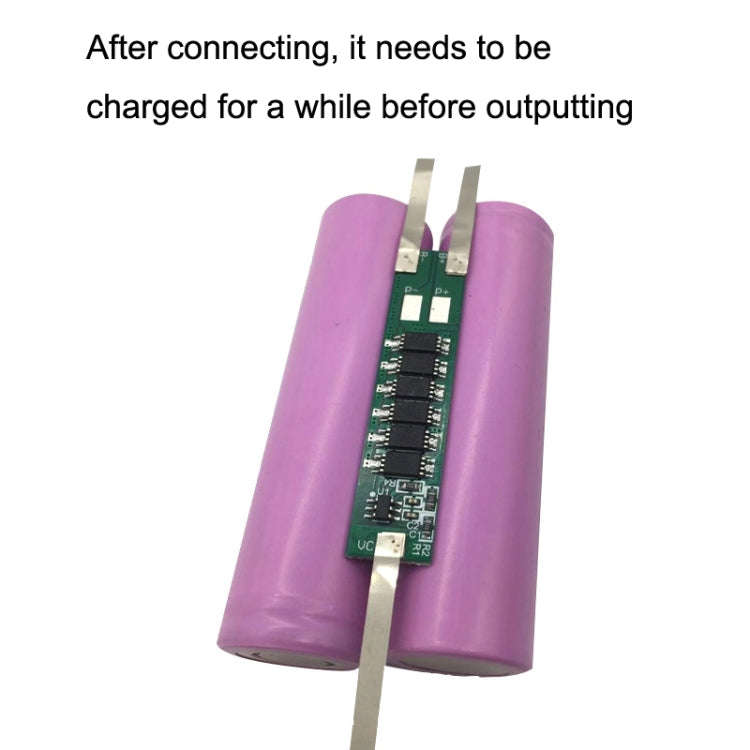

1. After connecting, it needs to be charged for a while before outputting
2. Charging voltage: DC7.4V
3. Continuous discharge current: 6A
4. Overcharge detection voltage: 4.25V x 2
5. Overcharge detection delay time: 1S
6. Overcharge recovery voltage: 4.25V x 2
7. Over-discharge detection voltage: 2.3V--2.35V x 2
8. Over-discharge detection delay time: 100ms
9. Over-discharge recovery voltage: 3.0V x 2
10. Overcurrent detection voltage: 200mv
11. Overcurrent detection current: 6A
12. Overcurrent detection delay time: 10ms
13. Protection circuit (MOSPET): less than or equal to 60 megohms
14. Working temperature range: -40 to 85 degrees Celsius

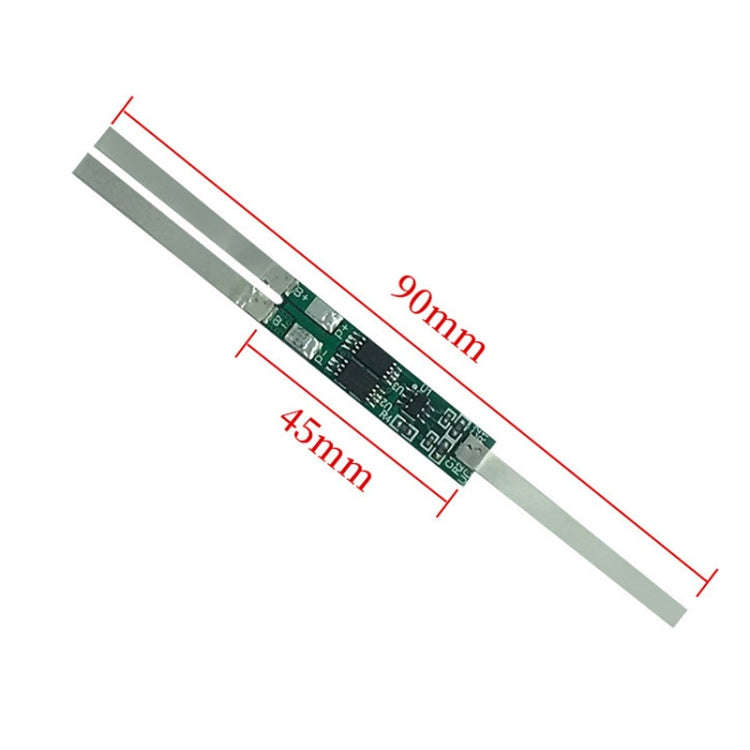

15. Size: 90x45mm

Kind tips:

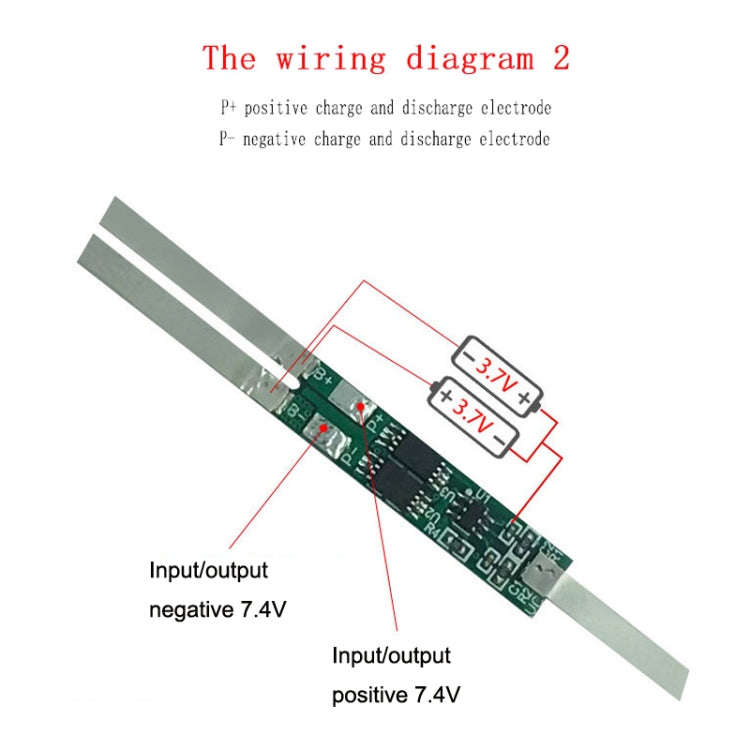

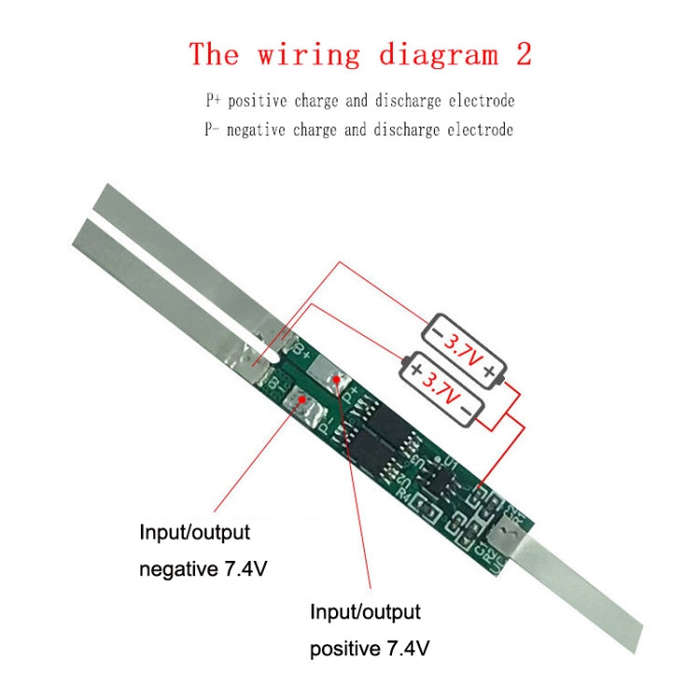

1. Because (lithium battery protection board) belongs to the particularity of semi-finished products in electronic products; be sure to understand the wiring diagram before assembly; avoid wrong wiring
2. Incorrect wiring or unintentional contact of wire ends with components may cause damage
