5Pcs Adjustable Potentiometer Volume Control Knob Switch Sensor Rotary Angle Sensor Module Geekcreit

Description:

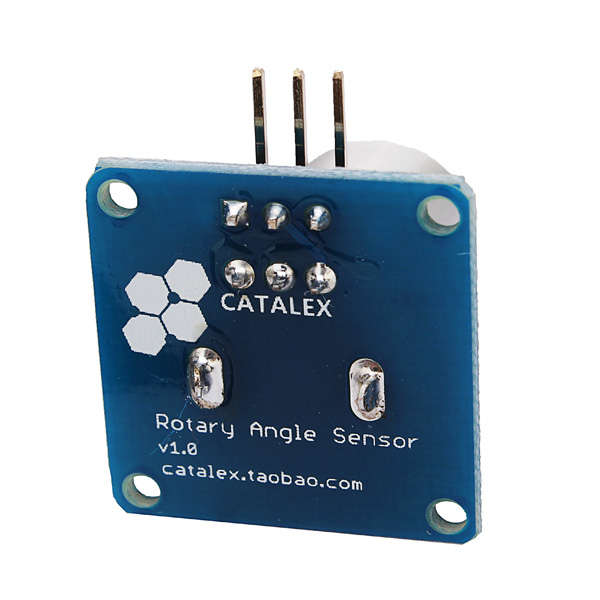

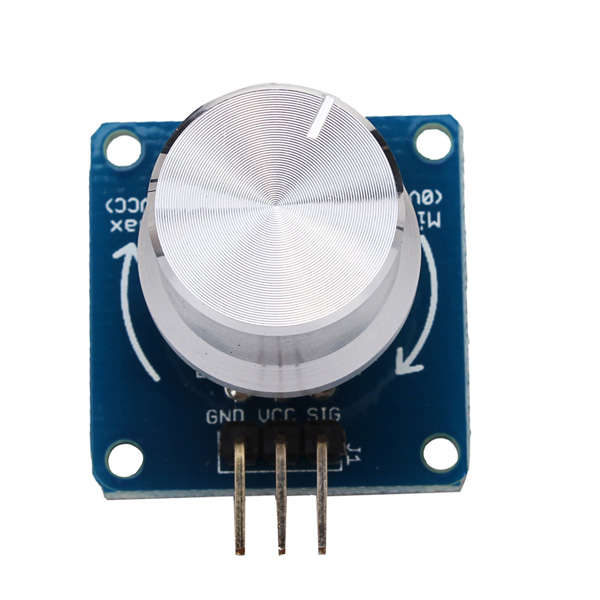

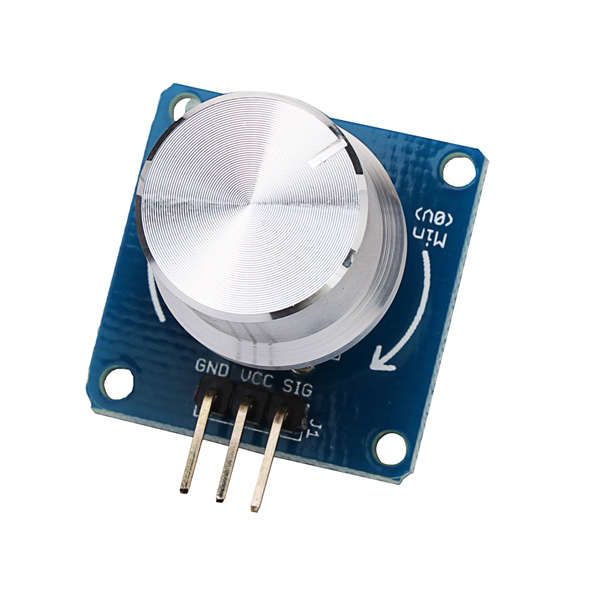

Rotary Angle Sensor is based on the 10k the adjustable potentiometer knob Angle sensor module, the output is 0 ~ VCC simulation values, the output voltage will be as the potentiometer rotation Angle and linear changes. Apply to 3.3 V and 5 V of the SCM system, and the board are compatible. Especially suitable for the volume regulator, such as lighting regulator DIY project

Feature:

Easy to use
Electronic building blocks Interface
Power supply is 3 ~ 5.5VDC
4 M2 screw positioning holes for easy installation

Parameter:

Item	Minimum	Typical Value	Maximum	Unit
VCC	3	5	5.5	V
VOUT	0	N/A	VCC	V
Rotation Angle	0	N/A	280	Deg
Size	24 x 29 x 27			mm

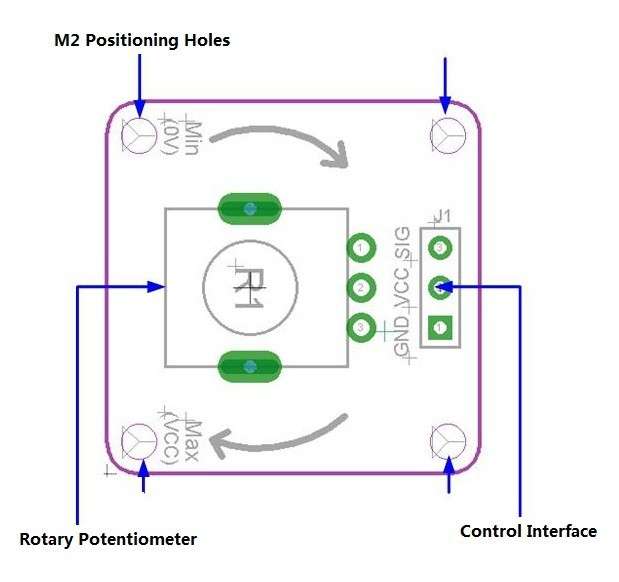

Interface:

Control Interface: GND to ground, VCC power supply, SIG is the signal output pin.

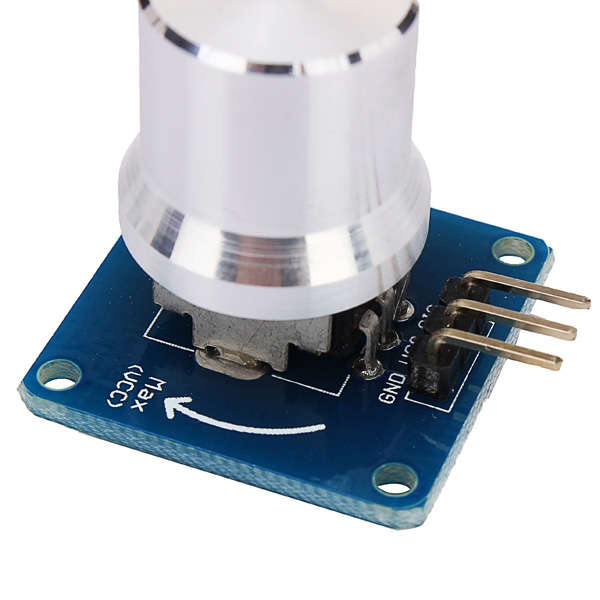

Knob Potentiometer: 10K ohm linear adjustable potentiometer, add aluminum knob cap.
Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, easy to install, implement the module combinations.



Package included:

5 xRotary Angle Sensor








, , , ,
