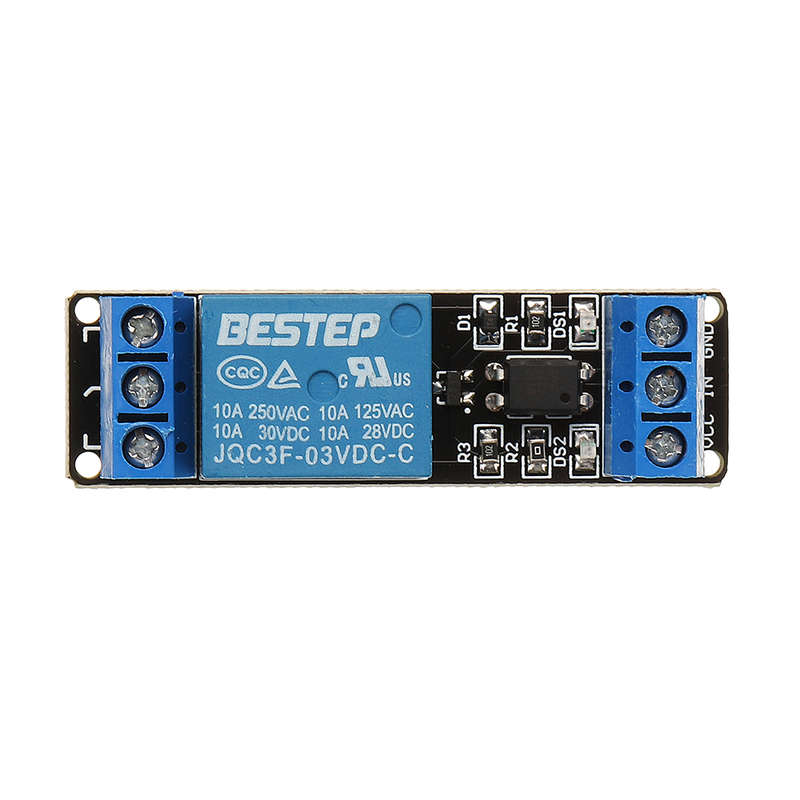

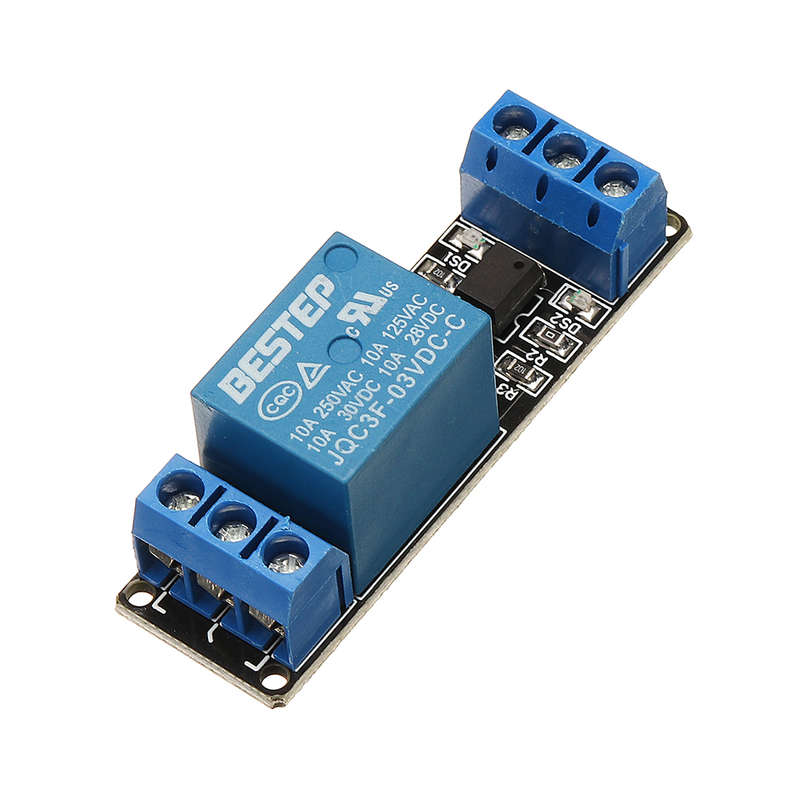

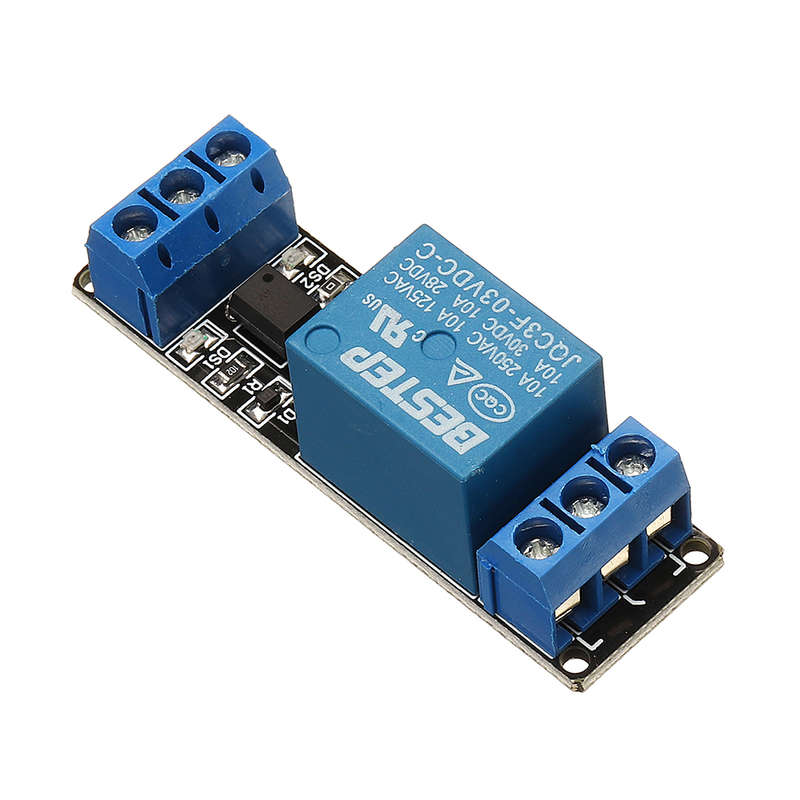

5pcs BESTEP 1 Channel 3.3V Low Level Trigger Relay Module Optocoupler Isolation Terminal

20 available / new

R385.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641112520

Description: Normally open interface maximum load: AC 250V/10A, DC 30V/10A. SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA. Fault-tolerant design, the relay will not move even if the control line is broken. Power indicator (green), relay status indicator (red). The interface is designed humanized, and all the interfaces can be directly connected by wiring terminals, which is very convenient.

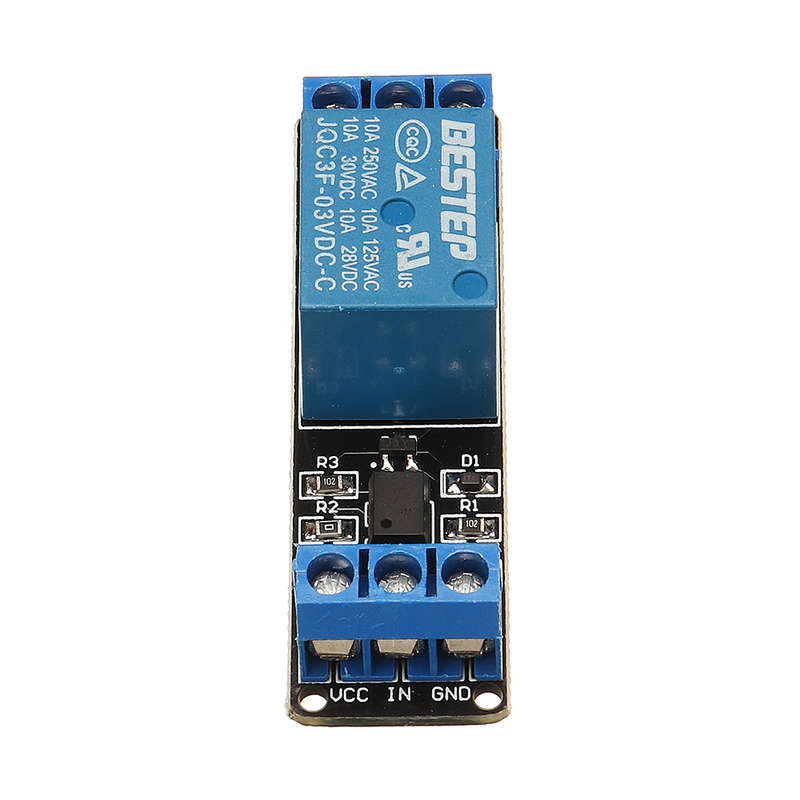

Two module interface: 1. DC+: Connect the power supply positive pole (voltage 3.3V). 2. DC-: Connect the power negative pole. 3. IN: Low level (3.3V) control relay pull in. Relay output terminal: 1. NO:Relay normal open, the relay suspends before pulling in, and then short-connect with the COM. 2. COM: Relay common interface 3. NC:Relay normal close,short connected with COM beforepulling inand suspended afterpulling in. Package Included:

5 x1 Channel 3.3V Relay Module
