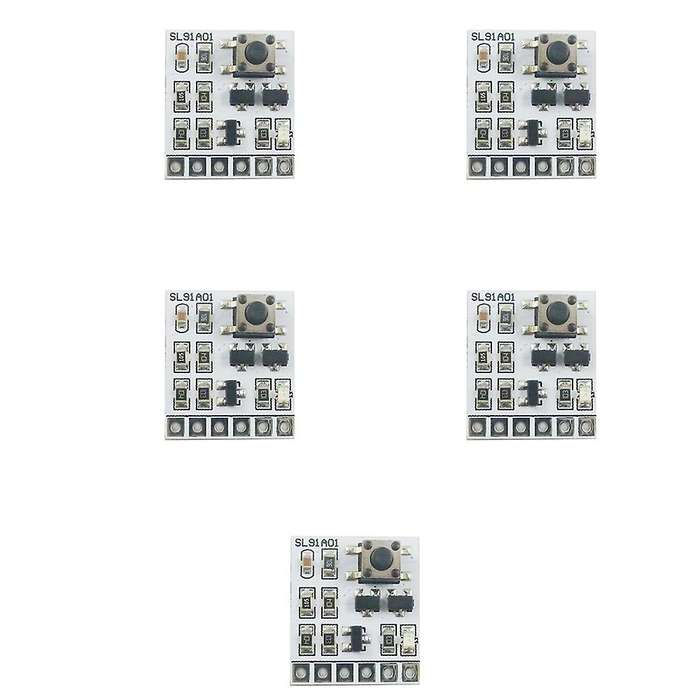

5Pcs DC 2-18V 2A Bistable Self-Locking Switch Module Button Trigger Key for LED Controller Relay Tou

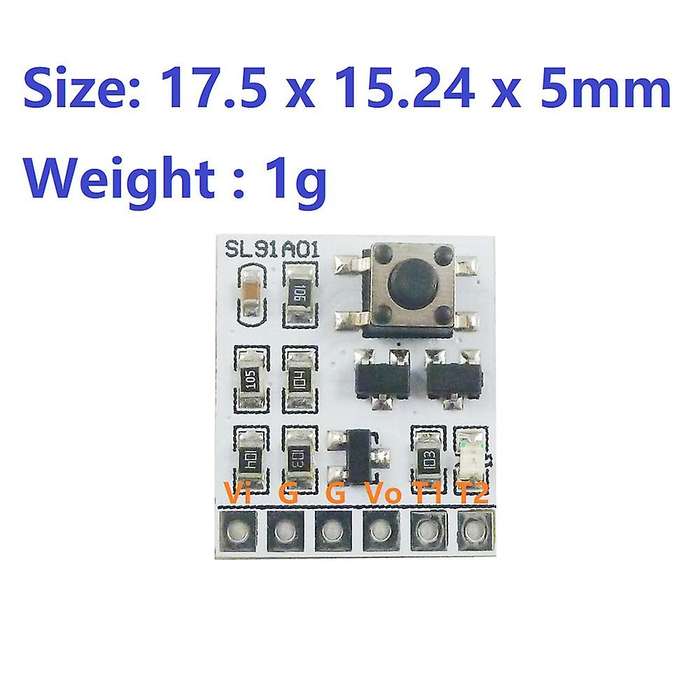

Working voltage : DC 2-18VLoad current :0-2000MAQuiescent current: 10uAOperating ambient temperature : -40 to +85Storage temperature : -65 to +125Module interface:1. Vi : positive power supply (VCC)2. G : negative power supply (GND)3. G : negative Output (GND)4 Vo : positive Output5 Ti : Button port 16 to : Button port 2How to use: After power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again).Note: 1 When powering on, the output state may be on or off,Connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty.Typical applications:Automotive electronicsIndustrial equipmentMotorLEDSmart HomeEmergency lightingMCU development boardToy carSolenoid valvesize: 17.5x15.24x5mm Material:PCB+Plastic+Metalcolour:WhitePackage Contents:5 x Self-locking electronic switch Bistable BoardOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
