Specification:

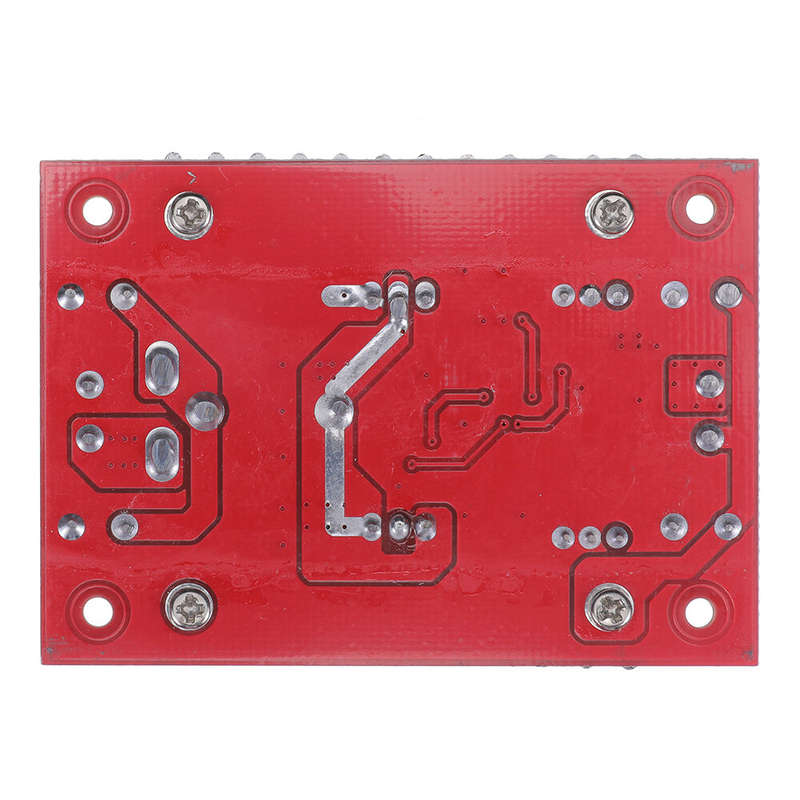

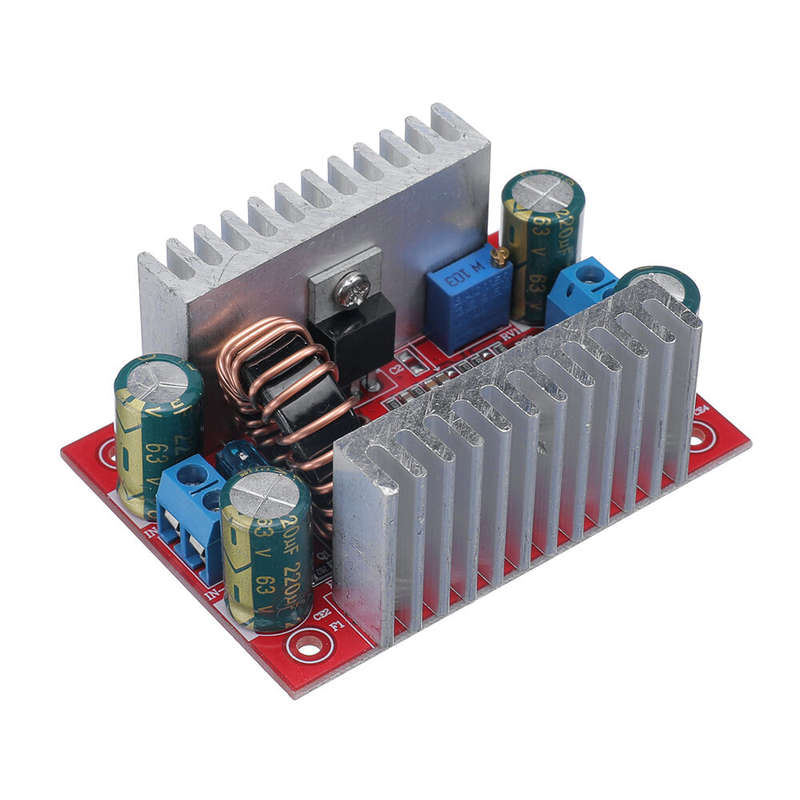

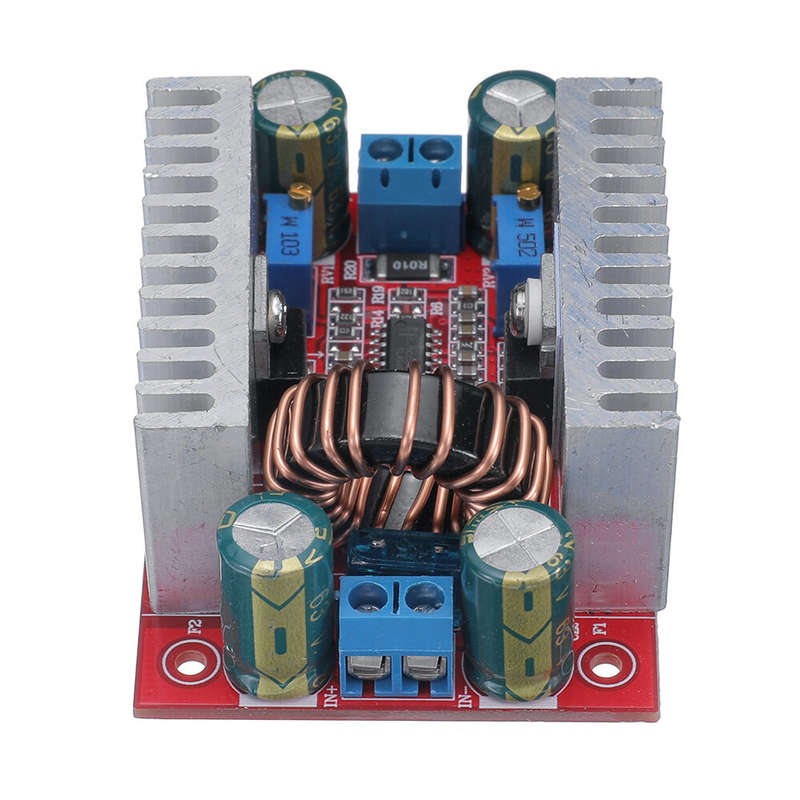

Module Name: 400W Boost Constant Current Module
Module Type: Non-isolated Step-up Module (BOOST)
Input Voltage: DC 8.5V - 50V
Input Current: Up to 15A (Note: Enhance heat dissipation for currents exceeding 8A)
Quiescent Current: 10mA (Increases with higher output voltage)
Output Voltage: 10V - 60V (Continuously Adjustable)
Constant Current Range: 0.2A - 12A
Temperature Range: -40°C to +85°C (Enhance heat dissipation for high ambient temperatures)
Operating Frequency: 150KHz
Conversion Efficiency: Up to 96%
Overcurrent Protection: Yes
Input Reverse Polarity Protection: No
Installation: 4 mounting screw holes (2.55mm)
Connection Method: Output Connection
Module Size: 67mm x 48mm x 28mm (L x W x H)
Weight: 60g (Single Module)
