5Pcs DC-DC 3V-35V To 4V-40V Step Up Power Module Adjustable Boost Converter Adjustable Voltage Board

20 available / new
R574.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643368634
Description:

Input Voltage: DC 3V-35V
Output Voltage: DC 4V-40V (continuously adjustable)
Efficiency: 94%(MAX)
Size: L37mm*W32mm*H15mm
Working Temperature: -40-+85 degrees
Load capacity: Max 80W

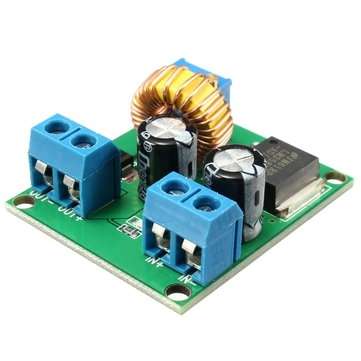

The way of Connection: the connection terminal does not need to be soldered, the IN is the input, and the OUT is the output.

Note:

When the output voltage is closer to the output voltage,the carrying capacity is higher,and the efficiency is also higher.

Measurement reference table:

Input voltage Output voltage Maximum output current Power
3V 5V 1A 5W
5V 12V 1A 12W
5V 9V 1.5A 13.5W
9V 12V 2A 24W
12V 19V 1.5A 28.5W
12V 24V 1.2A 28.8W
19V 24V 2A 48W
24V 30V 2A 60W
30V 35V 2A 70W

Package included:

5 xDC-DC 3V-35V To 4V-40V Step Up Power Module








, , ,
