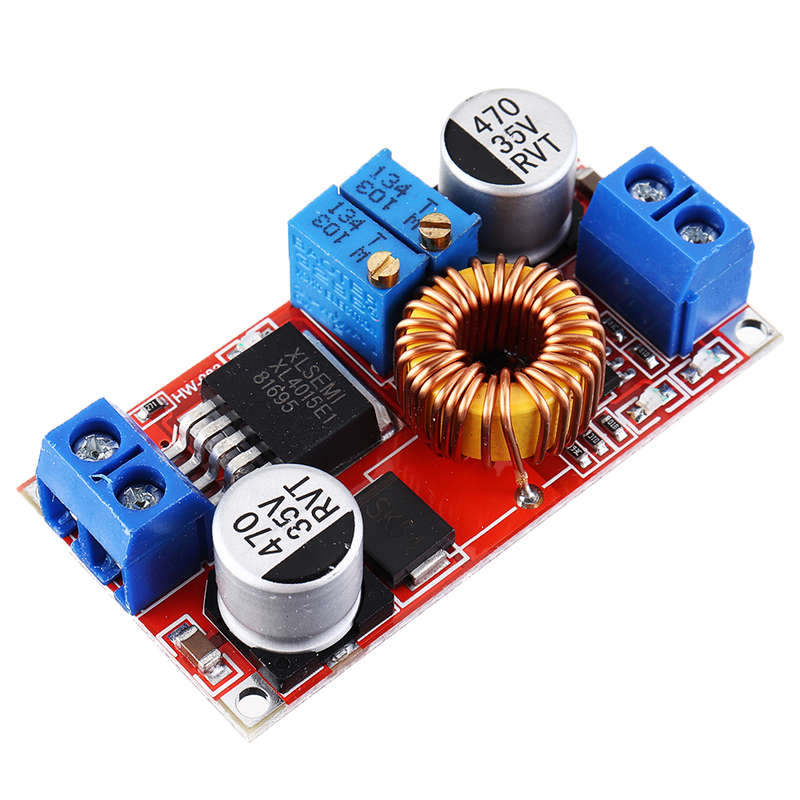

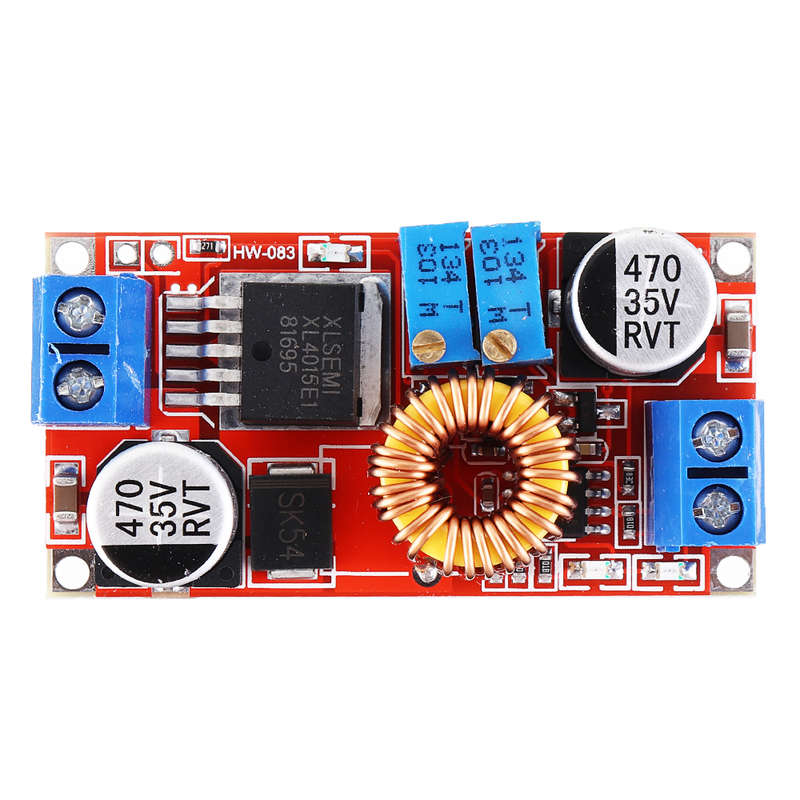

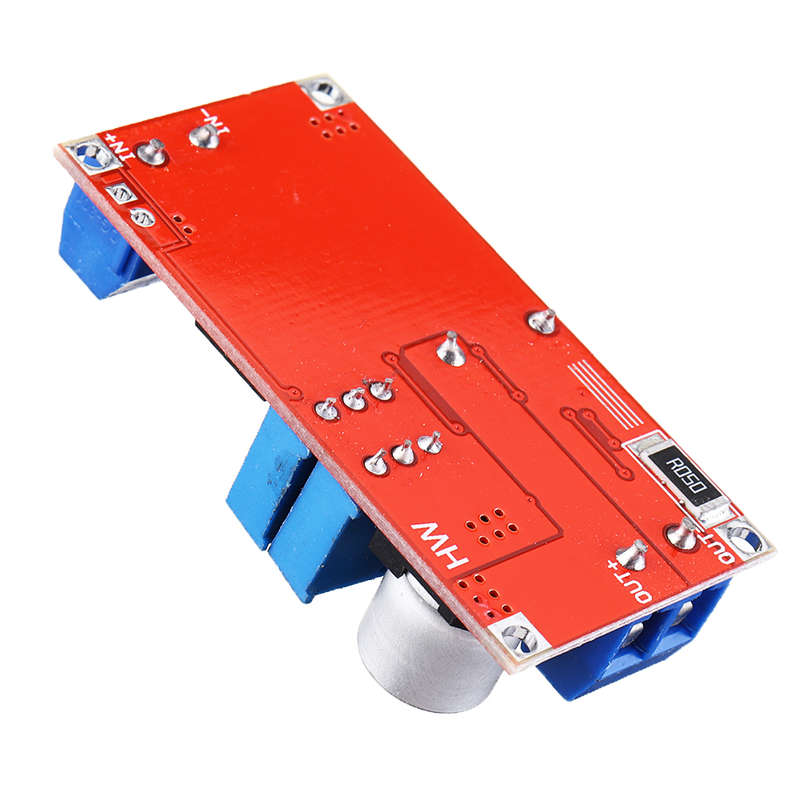

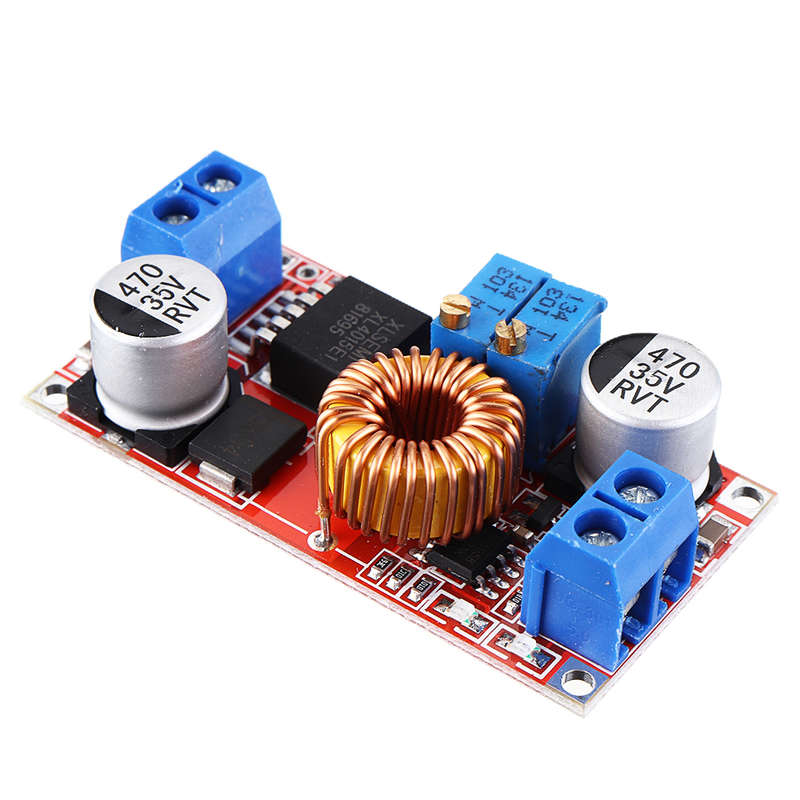

5pcs DC-DC 5-32V to 0.8-30V Power Supply Step Down Module Adjustable Buck Regulator 5A Constant LED

20 available / new

R449.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641112670

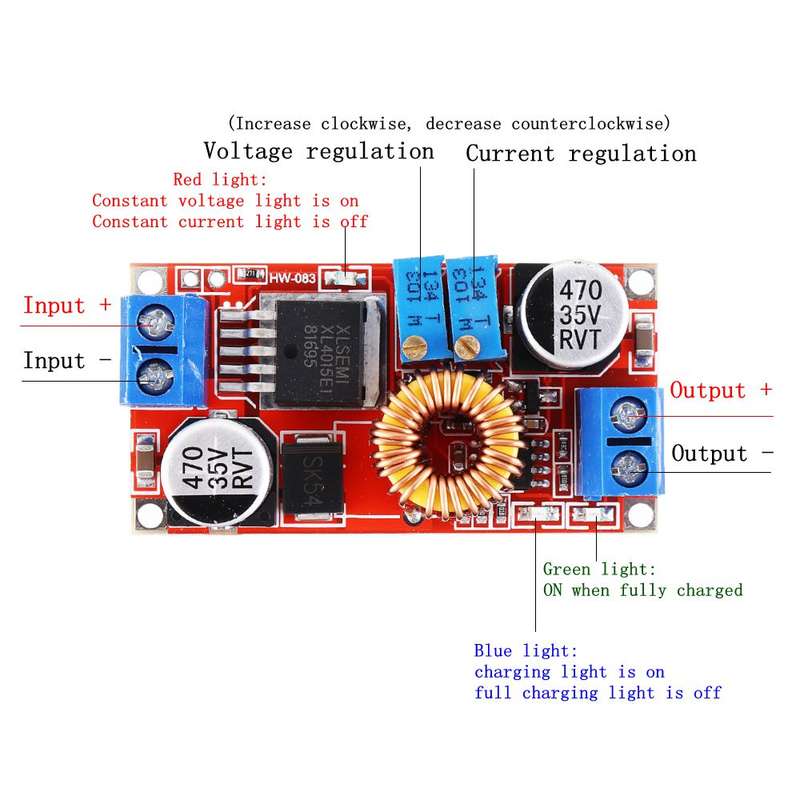

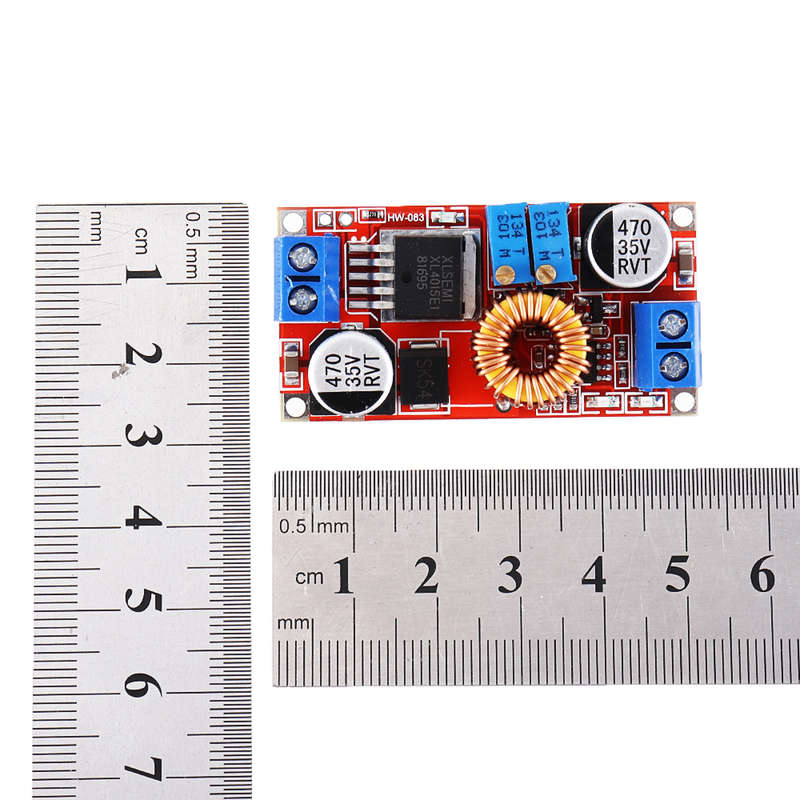

Overview: The module uses high-quality chips, high efficiency (up to 95%), low heat generation, maximum 5A current, and TI`s op-amp control output current, making the overall output very stable. This module uses a low-ESR filter capacitor to reduce ripple voltage to 50mV! Features: Module nature: non-isolated buck module Rectification mode: asynchronous rectification Wiring port: Input mode: IN+ input positive, IN- input negative Output mode: OUT+ output positive, OUT-output negative Input voltage: DC 5V-32V Output voltage: DC 0.8V-30V Output current: Adjustable , Max 5A Conversion efficiency: 95% (maximum) Switching frequency: 300KHz Output ripple: 50mV (maximum) 20M bandwidth Load adjustment rate: +/-0.5% Voltage regulation rate: +/- 2.5% Operating temperature: -40ﾣC to +85ﾣC Size: 51 x 26.3 x 14 (length x width x height) (mm) Package Included: 5 x DC-DC 5A Adjustable Buck Regulator Power Supply Module
