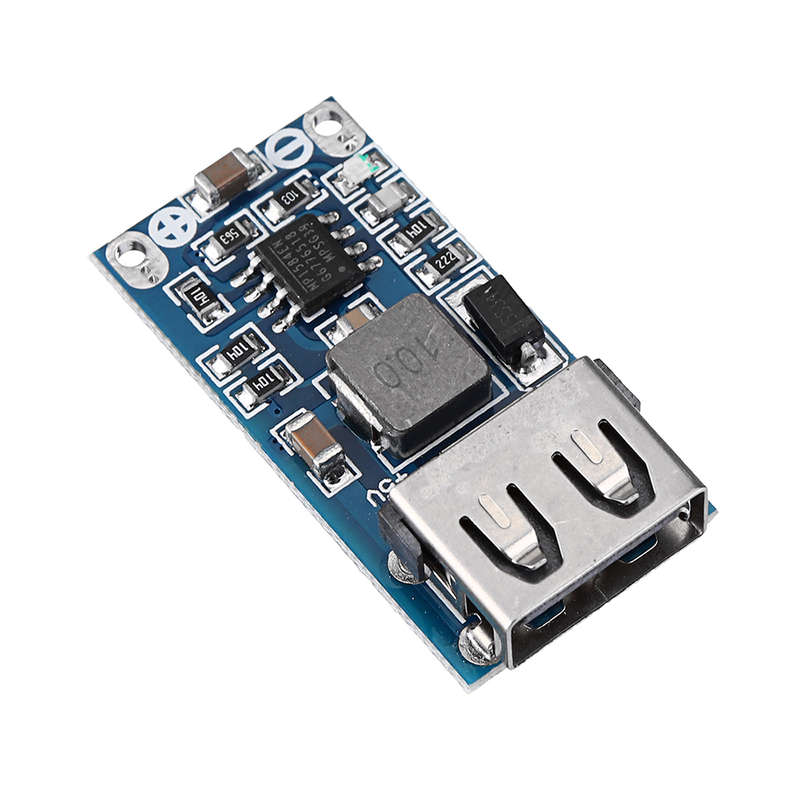

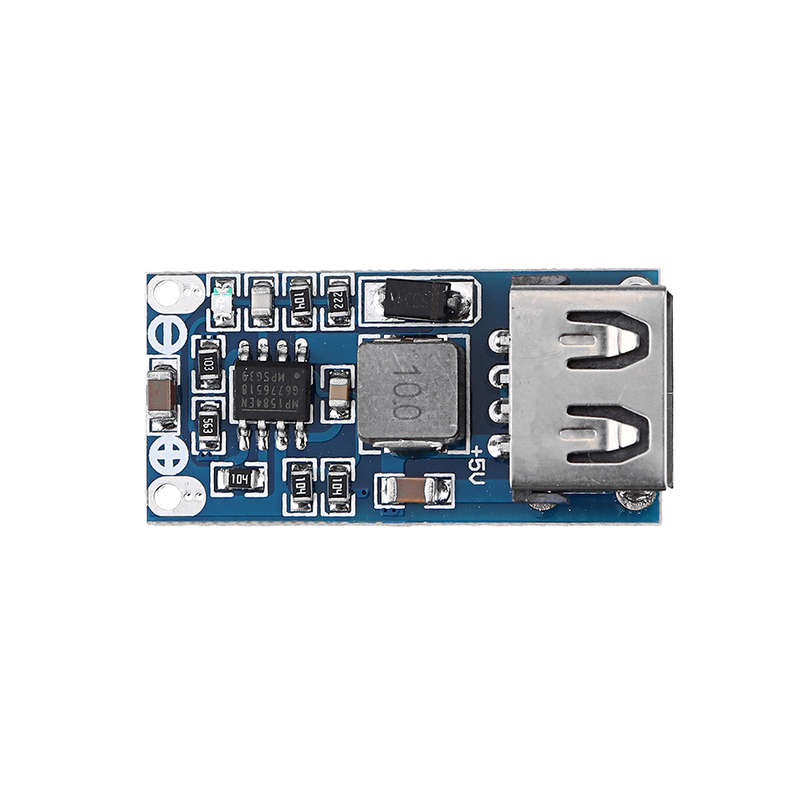

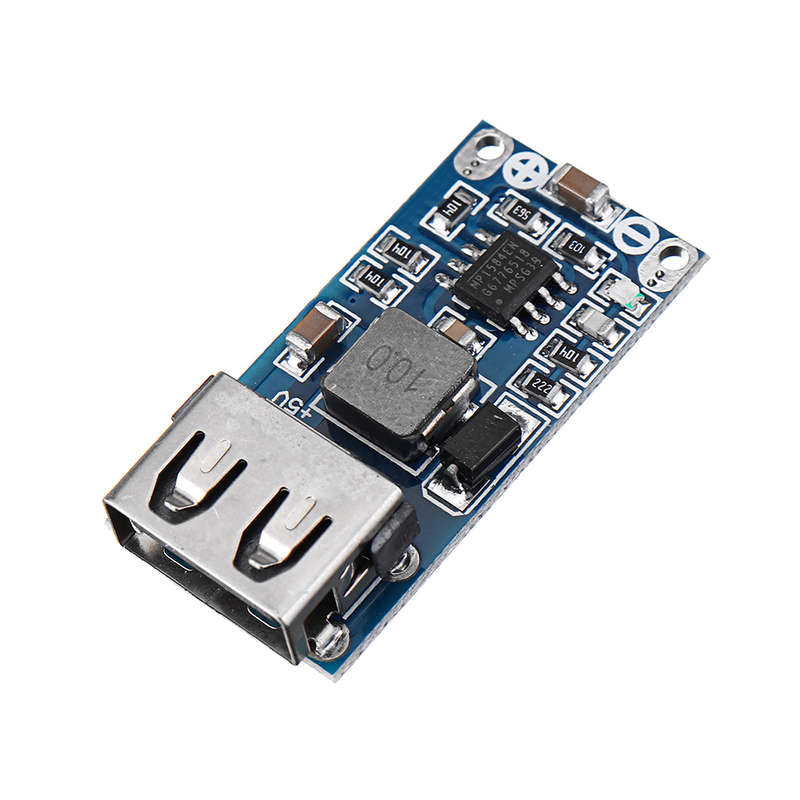

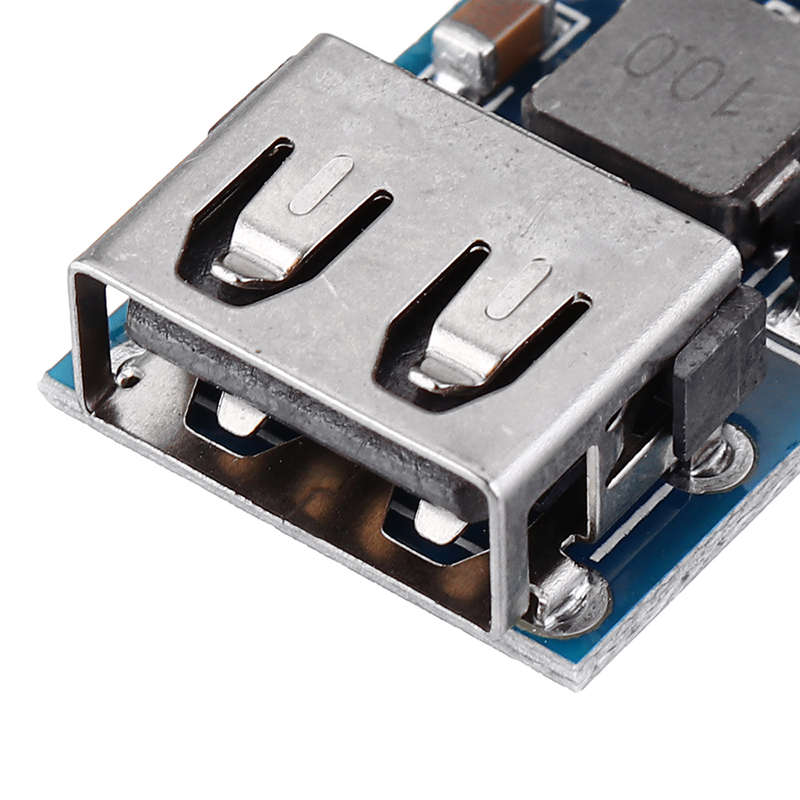

5pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Chargin

20 available / new

R433.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3587

93.05 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643368646

Feature:

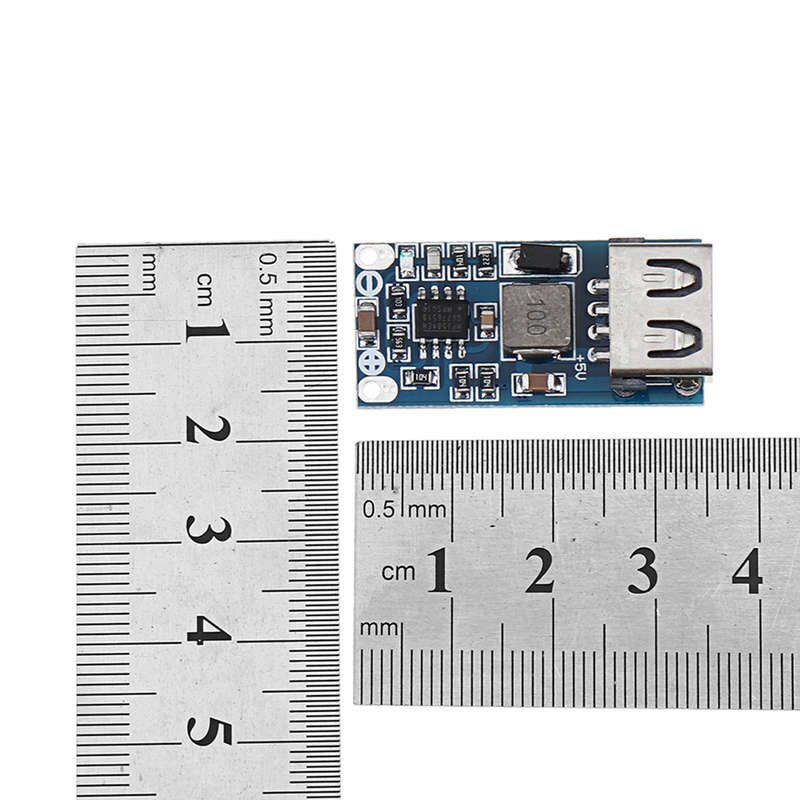

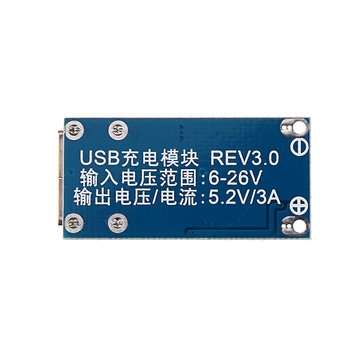

Product size: 35.5 x 17 x 8.3mm Input voltage range: 6-26V Output voltage: 5.2V (considering the charging line loss, the output is about 5.2V, the load is about 5V) Upper limit output current: 3A (in the case of no heat sink, the stable output upper limit current is 2A) Precautions: 1. The positive and negative poles cannot be reversed, and the input voltage should not exceed 26V, otherwise the chip will be damaged! 2. When powering on, you can't touch the sampling resistor and IC pin on the circuit board by hand. Otherwise, the output voltage may be suddenly damaged and damage the device! 3. Explain to some customers with electronic basics: Do not think that the nominal 3A current will burn out the equipment. The charging current is determined by the device. The charging current for most devices is 0.8-1.5A. Tip: This is a step-down charging module. The current indicated by 2A refers to the upper limit current of the load. It cannot be compared with the 2A current indicated by the charger.

Project	Min.Value	Typical Value	Max.Value	Unit
Standby current (Ven=0V)	15	20	25	uA
No-load current	8	12	18	mA
Input voltage	6	12	26	V
The output voltage	5.1	5.25	5.4	V
Output current	0	2	3	A
Overcurrent protection current	5	5.5	6	A
Conduction internal resistance	80	100	120	m
On-off level	335	385	435	KHz
High temperature protection	85	90	130	ﾣC
Conversion efficiency (I=7V, 0=5V)	93	95	97	%
Ambient temperature	-40	25	85	ﾣC
