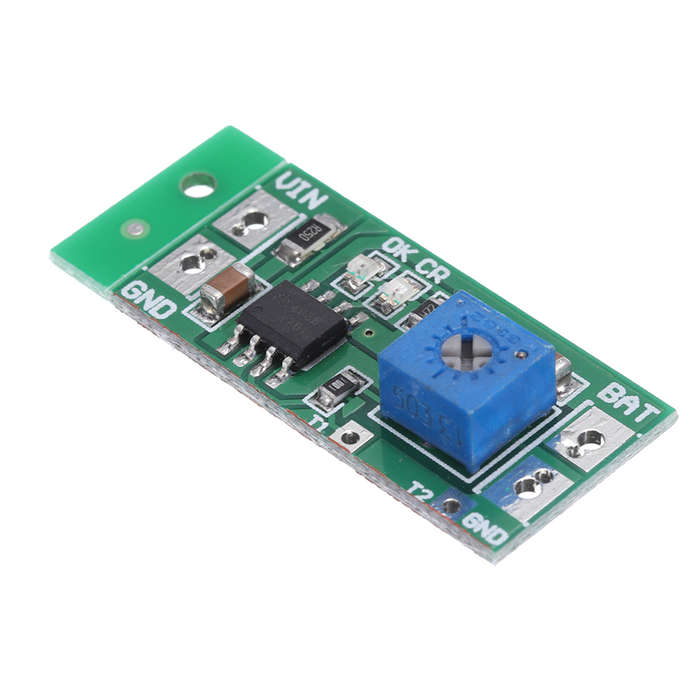

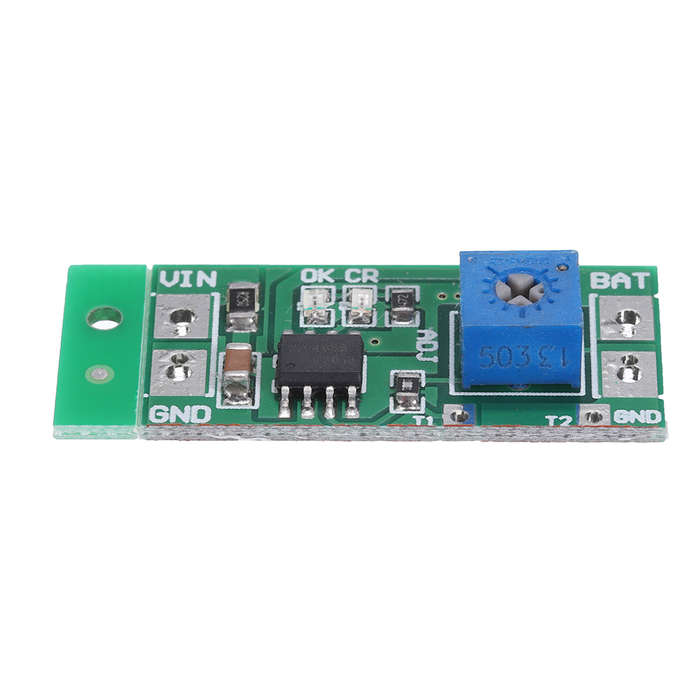

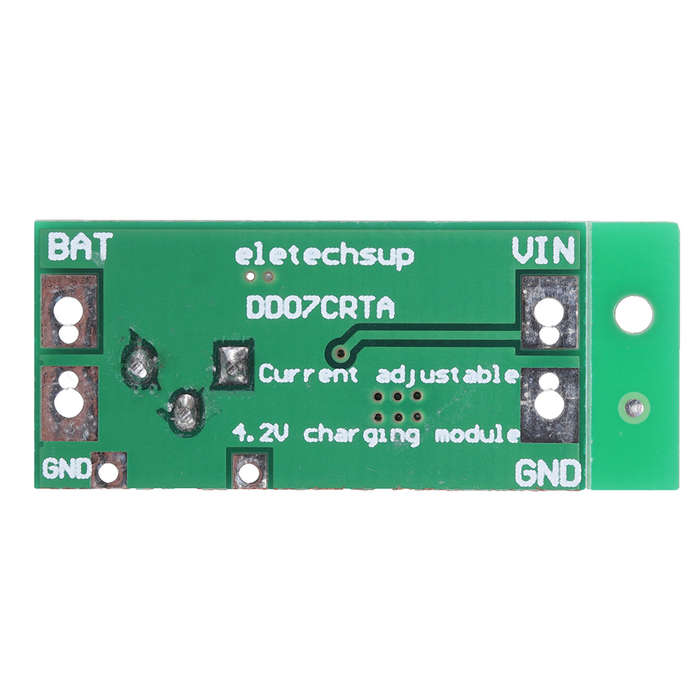

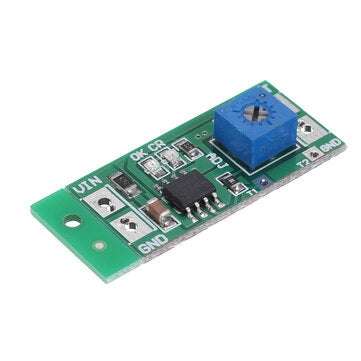

5pcs DD07CRTA 50-1000mA Adjustable 3.7V 4.2V Lithium Ion Rechargeable Lithium Battery Charger Module

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;} Specifications: Input voltage : DC 4.5V-8V(Recommend DC 5V) Charger current : 50-1000mA(Adjust Rprog value) Full charge voltage : 4.2V+-2%. Led indicator : ``OK`` LED is fully charged OR battery failureindicator; ``CR`` LED is chargeindicator Operating ambient temperature : -40ﾣ to +85ﾣ Size : 30 x 15 x 6mm
Features: - 100-2700mAh(50-1000mA) Lithium Battery Charger Module - Linear charging. - It can be used DC 4.5V-8V power supply charger(Such as Solar panels)Charging module comes with charge-management functions, will not overcharge or over discharge - It comes with rechargeable function,Will enter standby mode when fully charged.When the battery capacity is below 80%, the charging start. - Charger current(mA) = Battery capacity(mAh) * 0.37 for example : 1000mAh lithium battery recommended charger current is 370mA 2000mAh lithium battery recommended charger current is 740mA

Applications:

aLithium Battery 14500,14650,17490,18500,18650,26500
phone
Solar charging
MP3/MP4 player
Audio equipment
Portable Devices
Wife Bluetooth Applications

Package Included:

5 x50-1000mA Adjustable 3.7V 4.2V Lithium Ion Rechargeable Lithium Battery Charger Module
