5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit 5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit 5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit 5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit
5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit 5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit 5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit 5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit

5pcs DIY Electronic Clapping Voice Control Switch Module Kit Induction Training DIY Production Kit

20 available / new
R427.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641112709

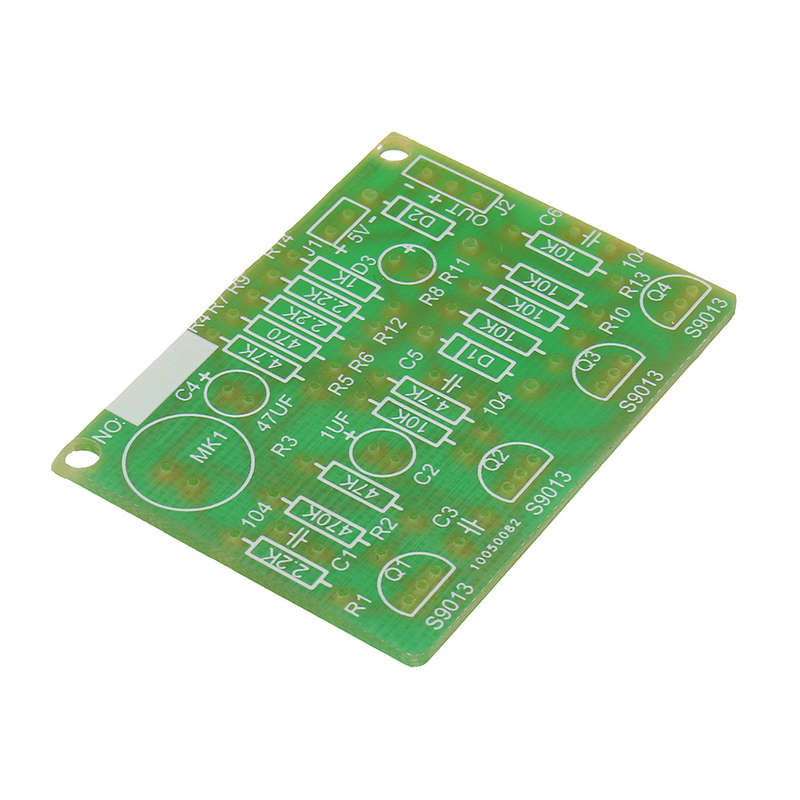

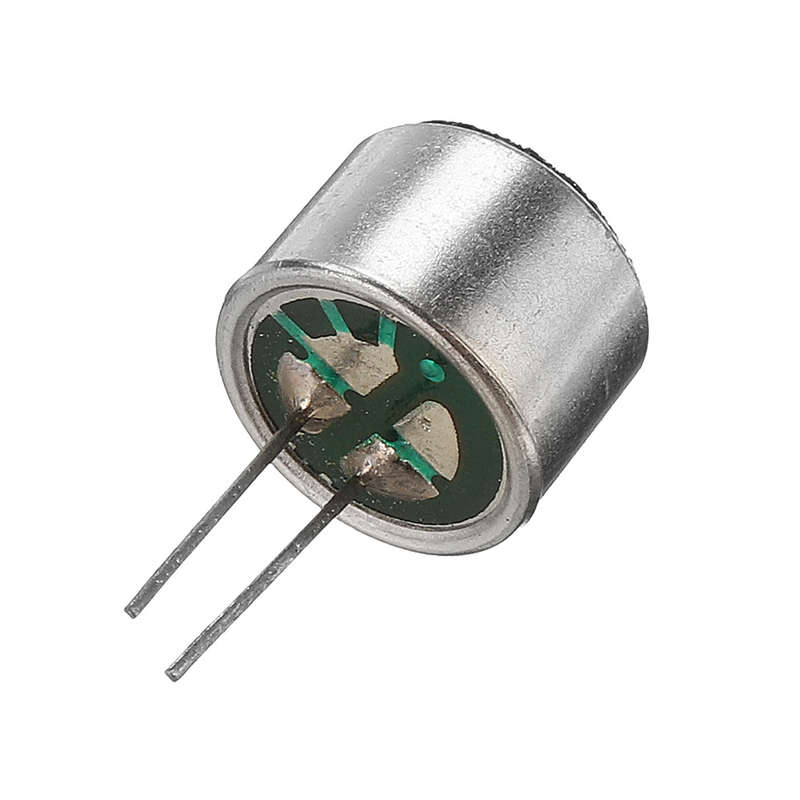

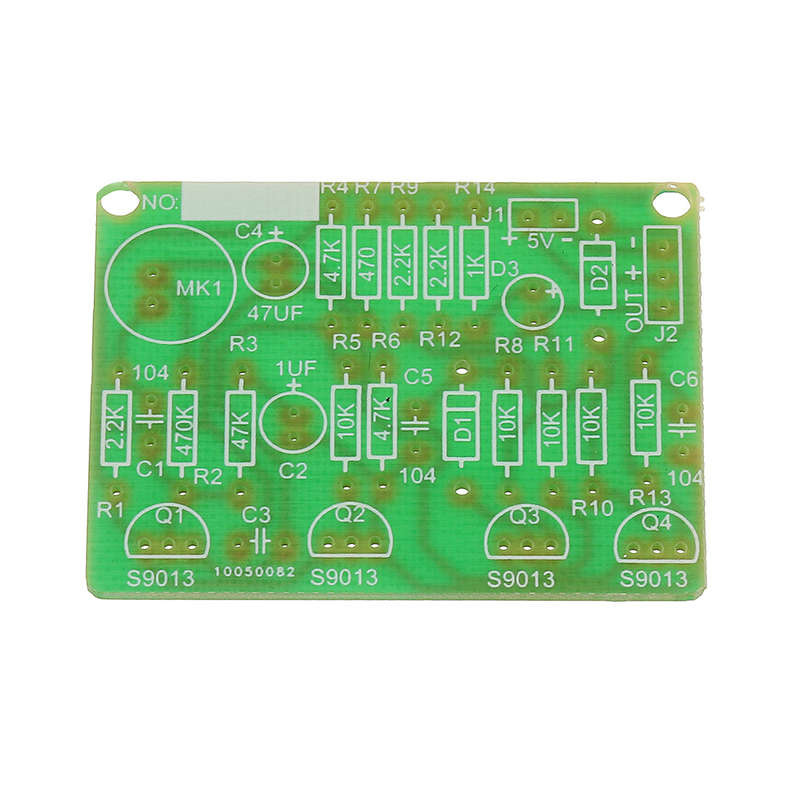

Description: Work effect: clap hands, LED light, and then clap out, so cycle, high sensitivity, about 4 meters clap hands can be controlled Circuit description: this circuit is mainly composed of audio amplification circuit and bistable trigger circuit. Q1 and Q2 constitute a two-stage audio amplifier circuit. The audio signal received by MIC is coupled to the base of Q1 by C1. After amplification, the collector is fed directly to the base of Q2. A negative square wave is obtained at the collector of Q2 to trigger the bistable circuit. R1 and C1 limit the frequency response of the circuit to about 3kHz, which is a high sensitivity range. When the power is connected, the state of the bistable circuit is Q4 cut-off, Q3 saturation, and LED1 not bright. When the MIC receives the control signal, it outputs a negative square wave after two-stage amplification. After differential treatment, the negative tip pulse passes through the base of D1 and Q3, which makes the circuit Flip rapidly and the LED is lit. When MIC receives the control signal again, the circuit will turn over and LED will die out. If the LED lamp loop is connected with other circuits, the voice control of other circuits can also be realized by J2. Package Included:

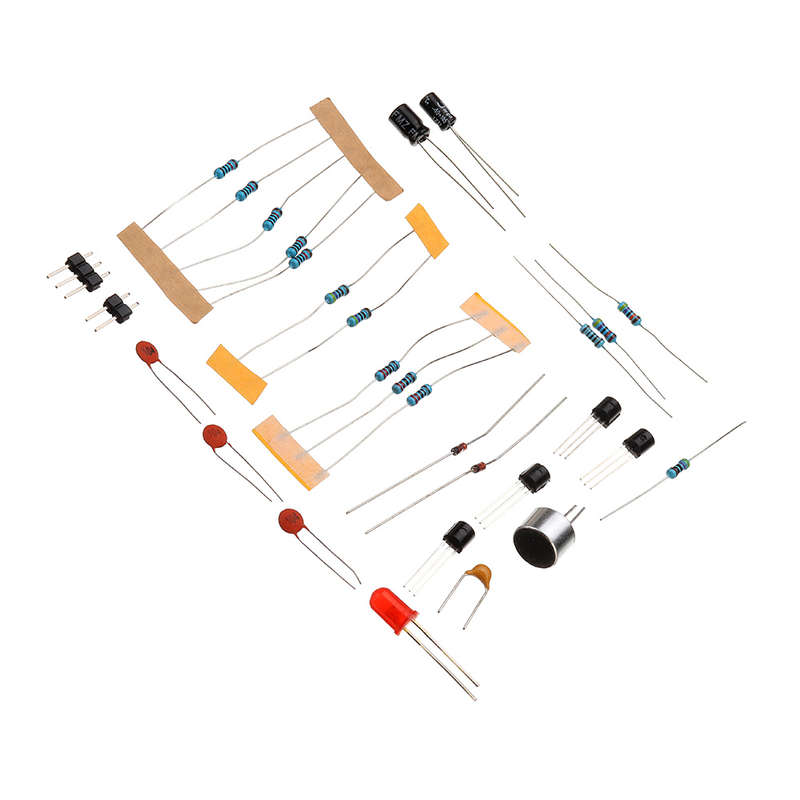

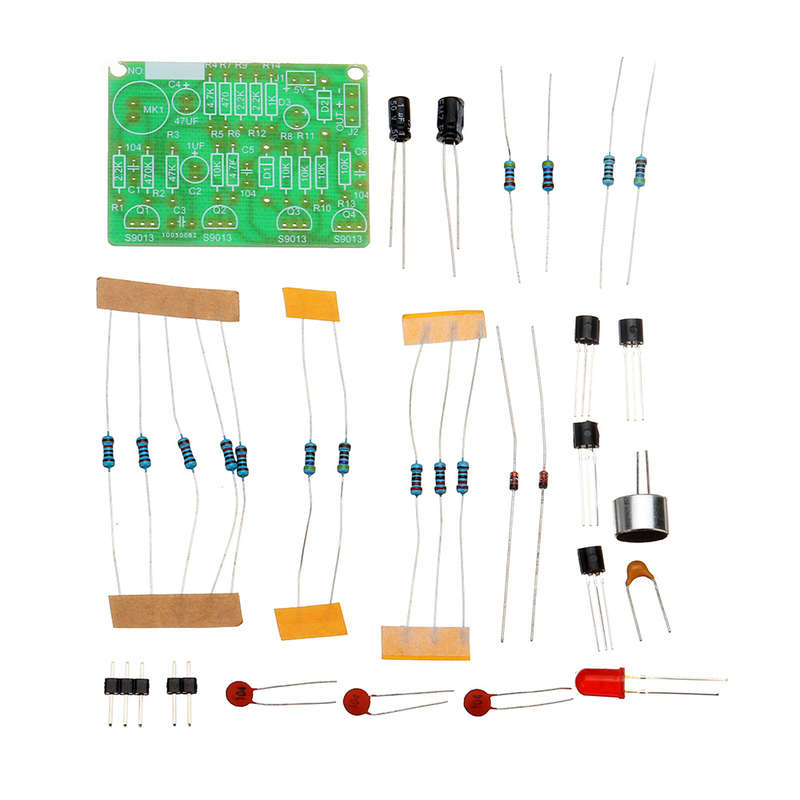

5 xDIY Electronic Clapping Voice Control Switch Module Kit





















Add to cart
