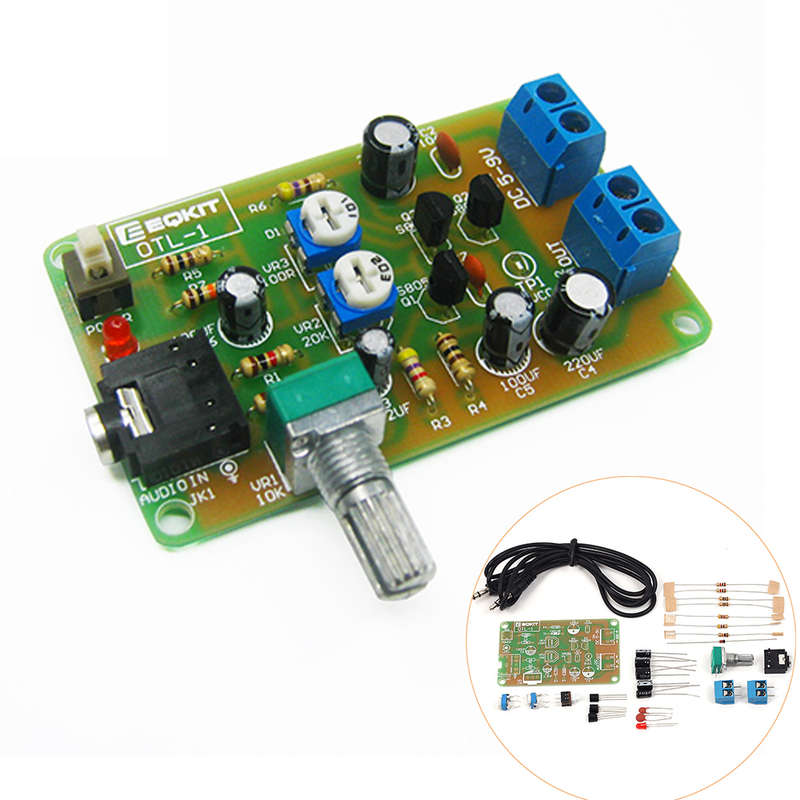

5pcs EQKIT OTL-1 Power Amplifier Circuit DIY Kit High Sensitivity OTL Discrete Component Amplifier

20 available / new

R470.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641112762

Description:

This is a kit parts. You should solder it by yourself.This circuit belongs to the OTL circuit teaching model, its maximum power is only 1W, driven by two complementary transistors S8550 and S8050.It can be used for exercise welding techniques, understanding the triode complementary OTL output type and how to adjust the static operating point, midpoint voltage, etc.. Features:

High sensitivity Low power Wide operating voltage range Low power consumption DIY design Parameters :

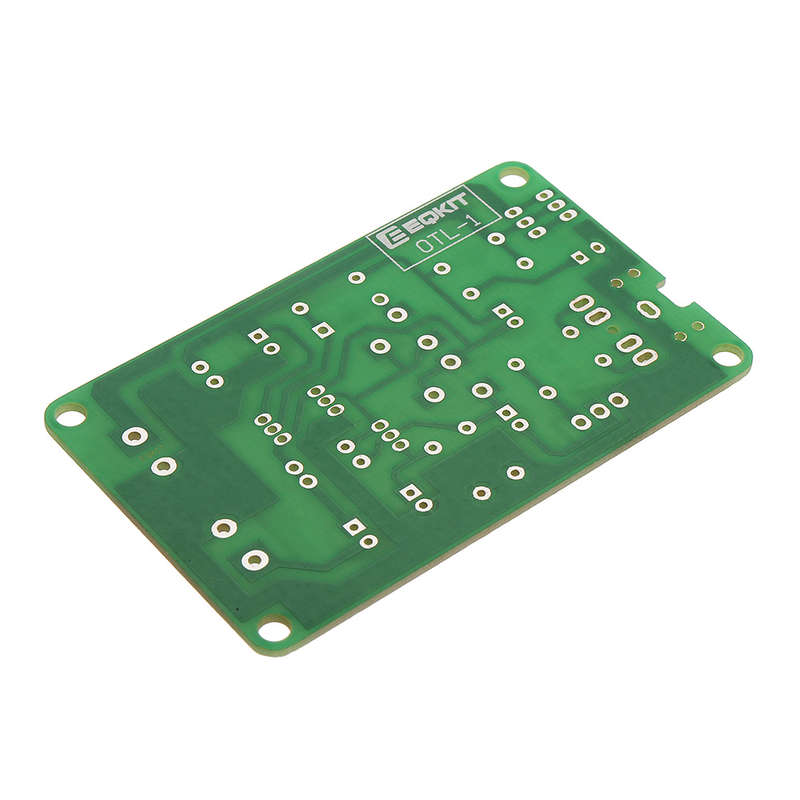

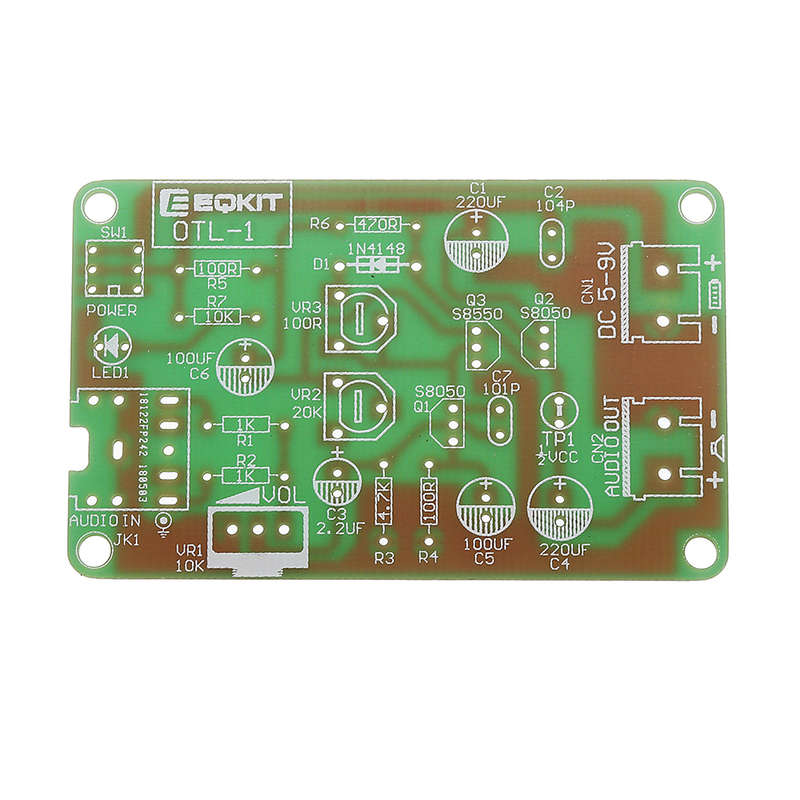

Model: OTL-1 Standby current: Less than 5mA Soldering difficulty Level: Easy Working voltage: DC 4V-9V(Recommend 5V) Working current: Less than 100mA Output power: 1W(max) Output Type: Single power supply OTL PCB Size: 65*40mm

Working principle:
This circuit belongs to the OTL circuit teaching model, its maximum power is only 1W, driven by two complementary transistors S8550 and S8050; The working voltage of this kit is DC4-9V, the recommended voltage is 5V.
Instructions:

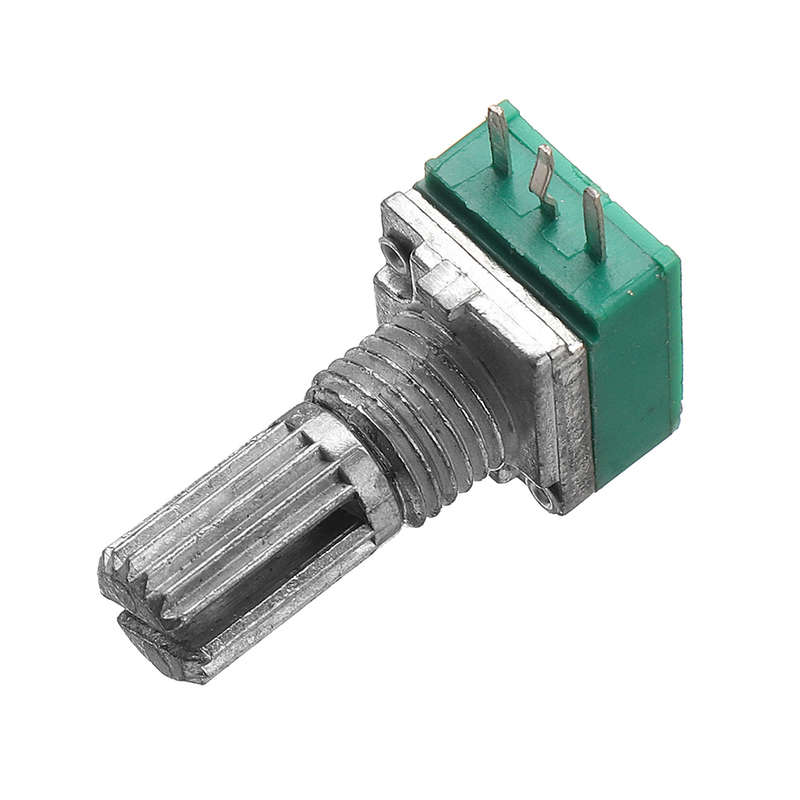

Step 1: Complete the installation in the normal way following installation manual and schematic.(Please request separately). Step 2: Connect DC 4-9V voltage; Step 3: Adjust potentiometers. Step 4: Test and use. Package Included:

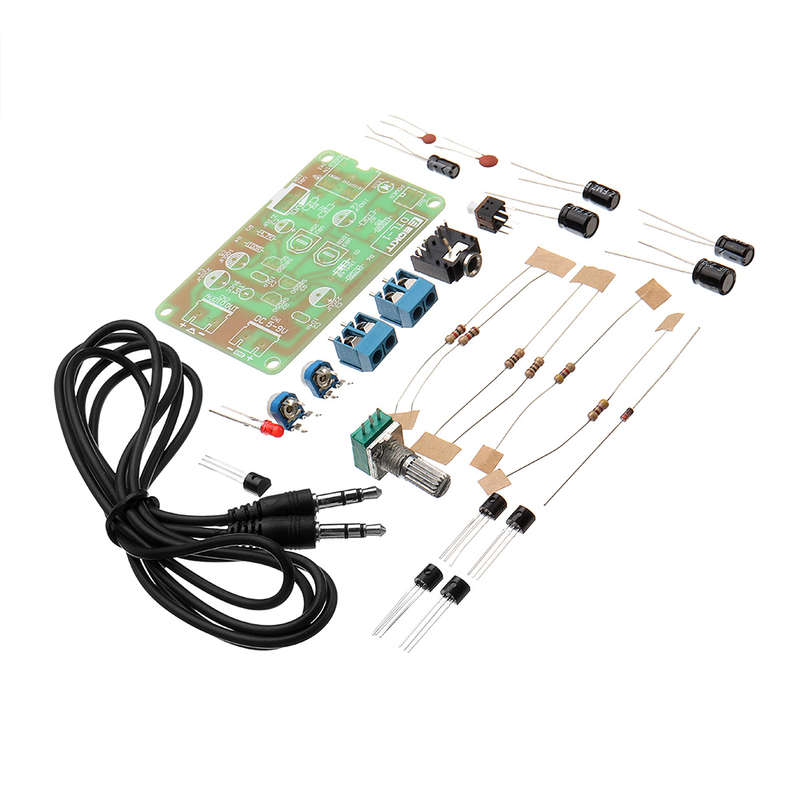

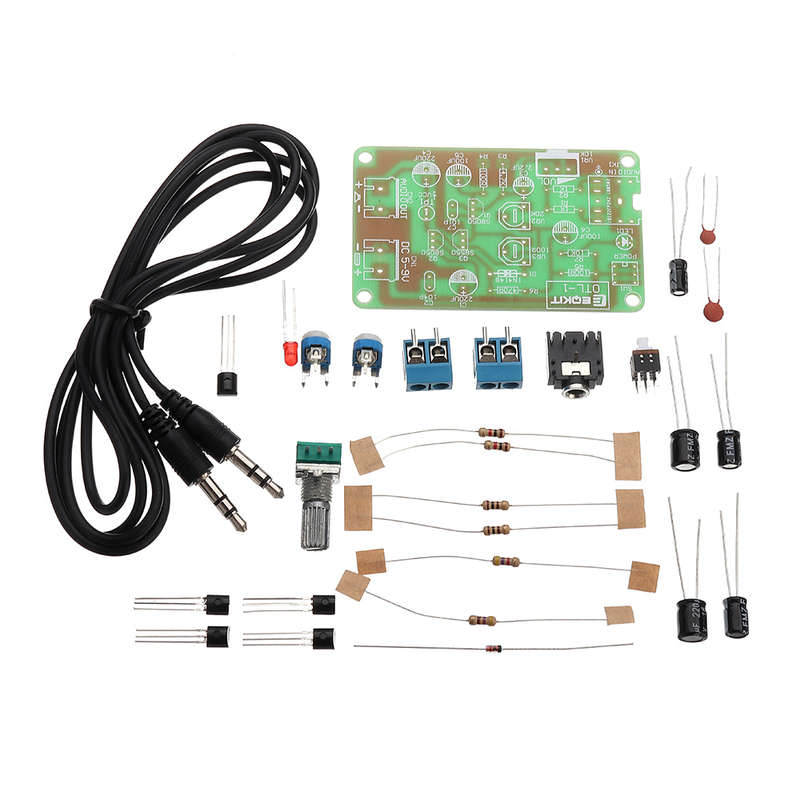

5 xEQKITOTL-1 Power Amplifier Circuit DIY Kit
