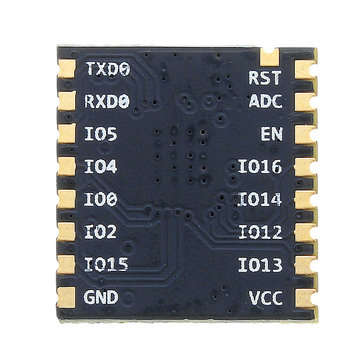

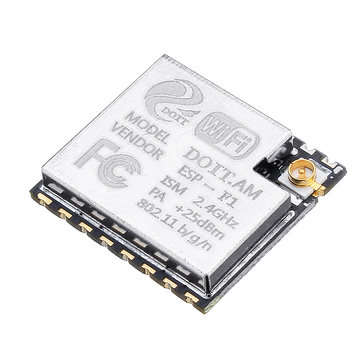

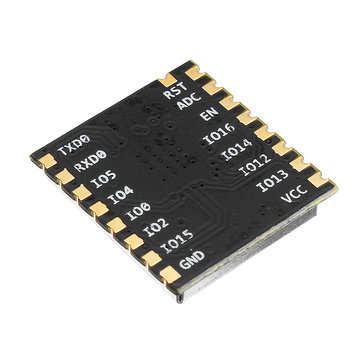

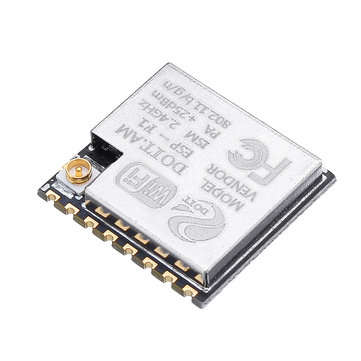

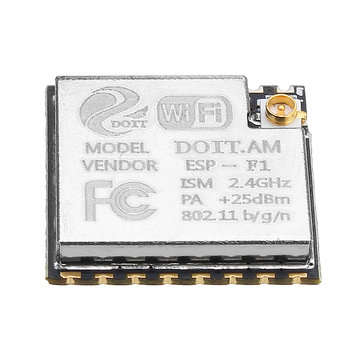

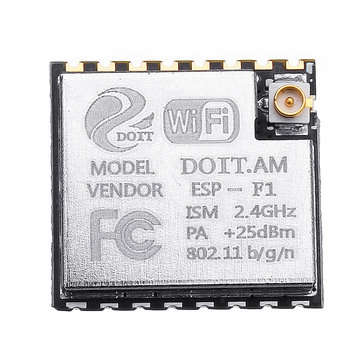

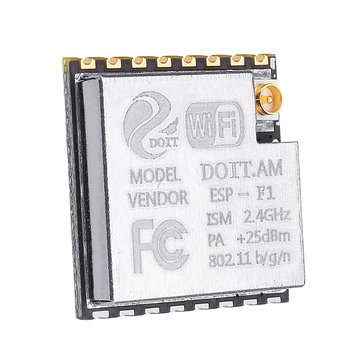

5pcs ESP-F1 Wireless WiFi Module ESP8266 Serial WiFi Module
New
R568.00
Closed
11 May 24 00:04
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Returns
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Bob Shop ID
612369773
Features:
ESP-F1 module core processor uses high cost performance chip ESP8266EX. The chip integrates the industry-leading Tensilica's L106 ultra-low power 32-bit micro MCU with 16-bit streamlined mode, 80 MHz and 160 MHz main frequency support and RTOS support in smaller size packages. ESP8266EX has a complete Wi-Fi network function, which can be used independently and run as a slave on other host MCUs. When ESP8266EX is applied independently, it can be booted directly from external Flash. The built-in cache memory is helpful to improve the system performance and optimize the storage system. In addition, ESP8266EX can be used as Wi-Fi adapter only through SPI/SDIO interface or I2C/UART interface, and can be applied to the design of any microcontroller. ESP-F1 module supports standard IEEE802.11 b/g/n/e/i protocol and complete TCP/IP protocol stack. Users can use this module to add networking functions to existing devices, or to build independent network controllers. ESP-F1 module provides maximum practicability at the lowest cost, and provides infinite possibilities for Wi-Fi function to be embedded in other systems. ? Specification:
Frequency range: 2.4G~2.5G (2400M~2483.5M) Transmission power: 802.11b: +20 dBm ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 802.11b: +17 dBm

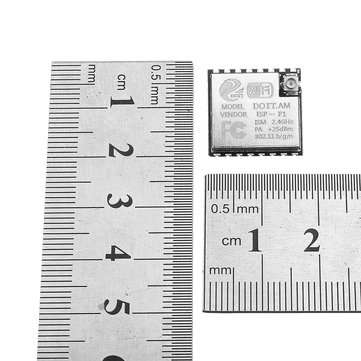

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??802.11b: +14 dBm Receiving sensitivity: 802.11b: -91 DBM (11Mbps) ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?802.11g: - 75 DBM (54Mbps) ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?802.11n: - 72 DBM (MCS7) Antenna: PCB board antenna CPU: Tensilica L106 32 bit microcontroller Peripheral devices: UART/SDIO/SPI/I2C/I2S/IR remote control ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? GPIO/ADC/PWM/SPI/I2C/I2S Working voltage: 2.5V ~ 3.6V Average current: 80 mA Working temperature: - 40 C ~ 85 C Ambient temperature range: - 40 C ~ 125 C Package size: 16mm x 24mm x 3mm Wi-Fi mode: Station/SoftAP/SoftAP+Station Security mechanism: WPA/WPA2 Encryption type: WEP/TKIP/AES Upgrade firmware: UART Download/OTA (via the network) Software development: Non-RTOS/RTOS/ IDE, etc. Network protocols: IPv4, TCP/UDP/HTTP/FTP/MQTT User Configuration: AT + Instruction Set / Cloud Server / Android / iOS AP ? Package included:
5 x ESP-F1 Wireless WiFi Module ESP8266 Serial WiFi Module
ESP-F1 module core processor uses high cost performance chip ESP8266EX. The chip integrates the industry-leading Tensilica's L106 ultra-low power 32-bit micro MCU with 16-bit streamlined mode, 80 MHz and 160 MHz main frequency support and RTOS support in smaller size packages. ESP8266EX has a complete Wi-Fi network function, which can be used independently and run as a slave on other host MCUs. When ESP8266EX is applied independently, it can be booted directly from external Flash. The built-in cache memory is helpful to improve the system performance and optimize the storage system. In addition, ESP8266EX can be used as Wi-Fi adapter only through SPI/SDIO interface or I2C/UART interface, and can be applied to the design of any microcontroller. ESP-F1 module supports standard IEEE802.11 b/g/n/e/i protocol and complete TCP/IP protocol stack. Users can use this module to add networking functions to existing devices, or to build independent network controllers. ESP-F1 module provides maximum practicability at the lowest cost, and provides infinite possibilities for Wi-Fi function to be embedded in other systems. ? Specification:
Frequency range: 2.4G~2.5G (2400M~2483.5M) Transmission power: 802.11b: +20 dBm ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 802.11b: +17 dBm
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??802.11b: +14 dBm Receiving sensitivity: 802.11b: -91 DBM (11Mbps) ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?802.11g: - 75 DBM (54Mbps) ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?802.11n: - 72 DBM (MCS7) Antenna: PCB board antenna CPU: Tensilica L106 32 bit microcontroller Peripheral devices: UART/SDIO/SPI/I2C/I2S/IR remote control ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? GPIO/ADC/PWM/SPI/I2C/I2S Working voltage: 2.5V ~ 3.6V Average current: 80 mA Working temperature: - 40 C ~ 85 C Ambient temperature range: - 40 C ~ 125 C Package size: 16mm x 24mm x 3mm Wi-Fi mode: Station/SoftAP/SoftAP+Station Security mechanism: WPA/WPA2 Encryption type: WEP/TKIP/AES Upgrade firmware: UART Download/OTA (via the network) Software development: Non-RTOS/RTOS/ IDE, etc. Network protocols: IPv4, TCP/UDP/HTTP/FTP/MQTT User Configuration: AT + Instruction Set / Cloud Server / Android / iOS AP ? Package included:
5 x ESP-F1 Wireless WiFi Module ESP8266 Serial WiFi Module
