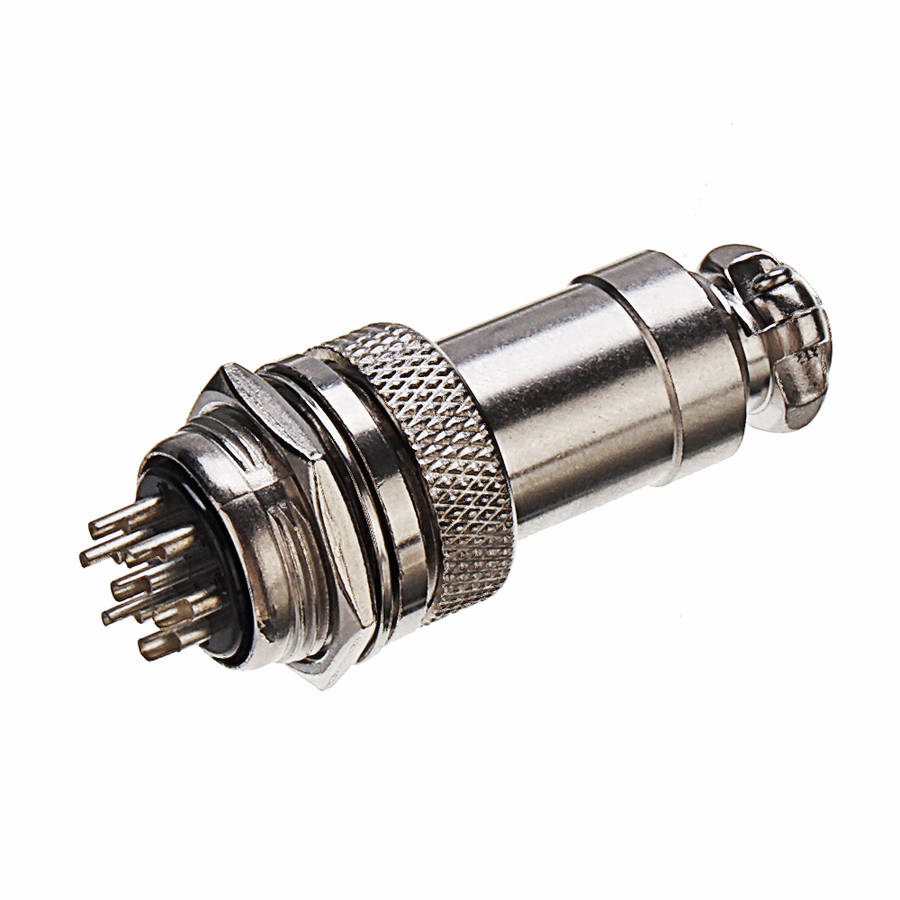

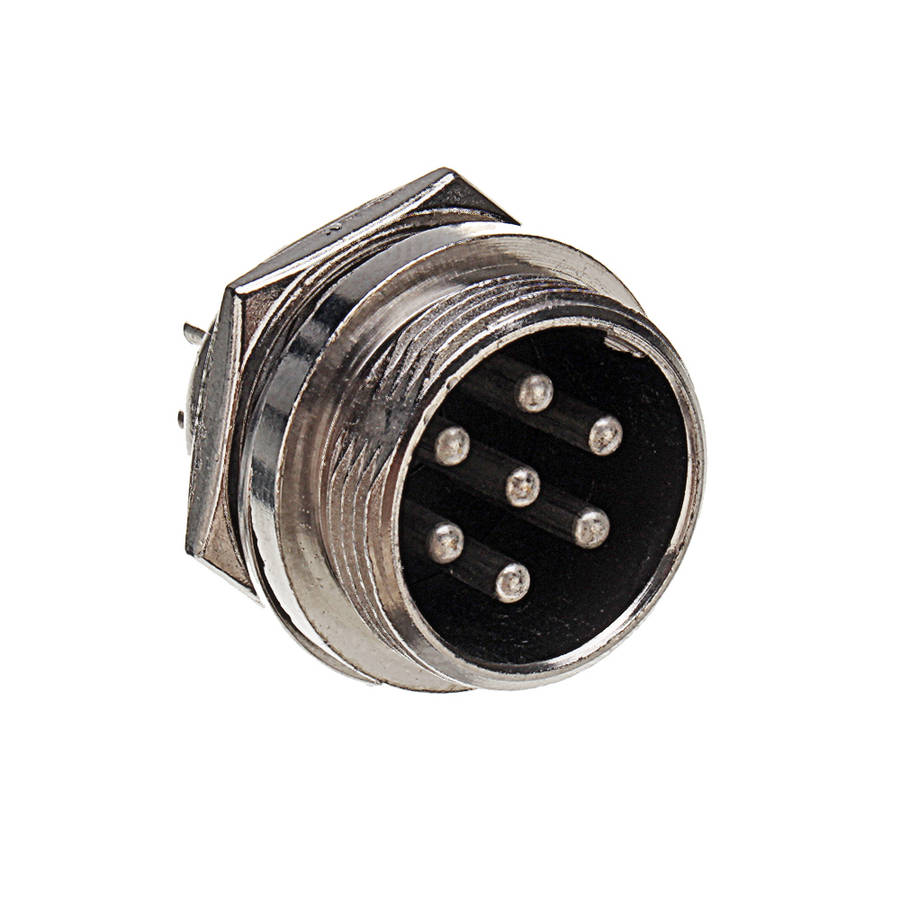

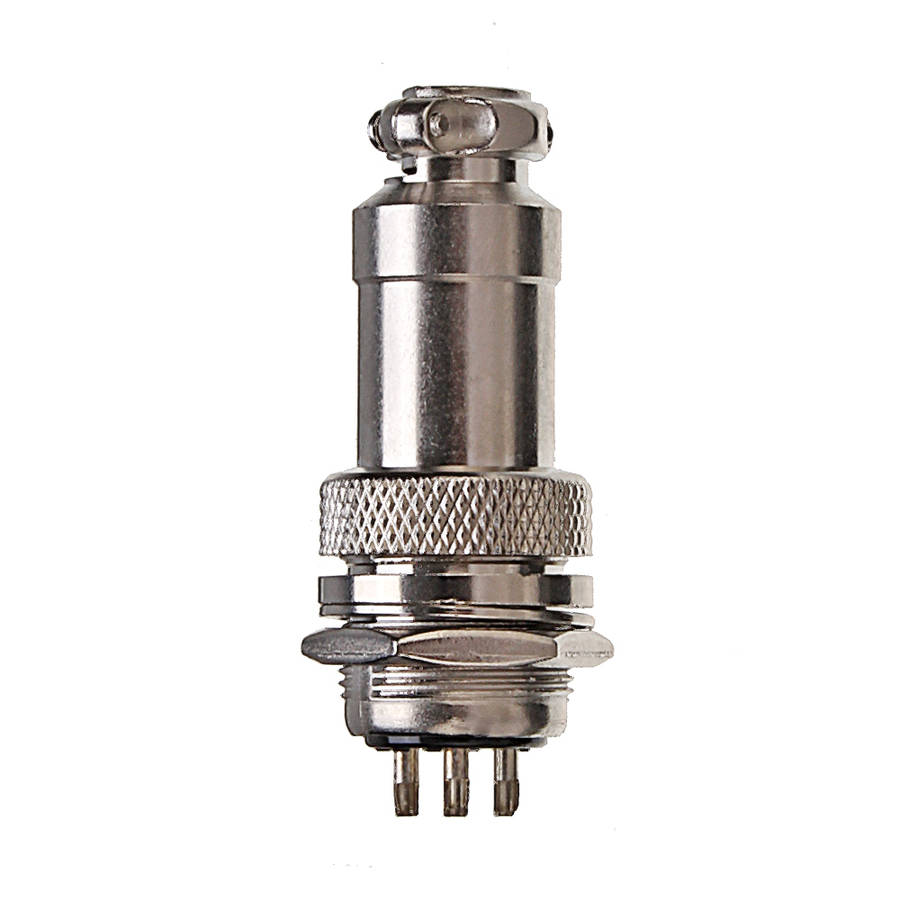

5pcs GX20 7 Pin 20mm Male & Female Wire Panel Circular Connector Aviation Socket Plug

Features:

Made of solid material, more durable.

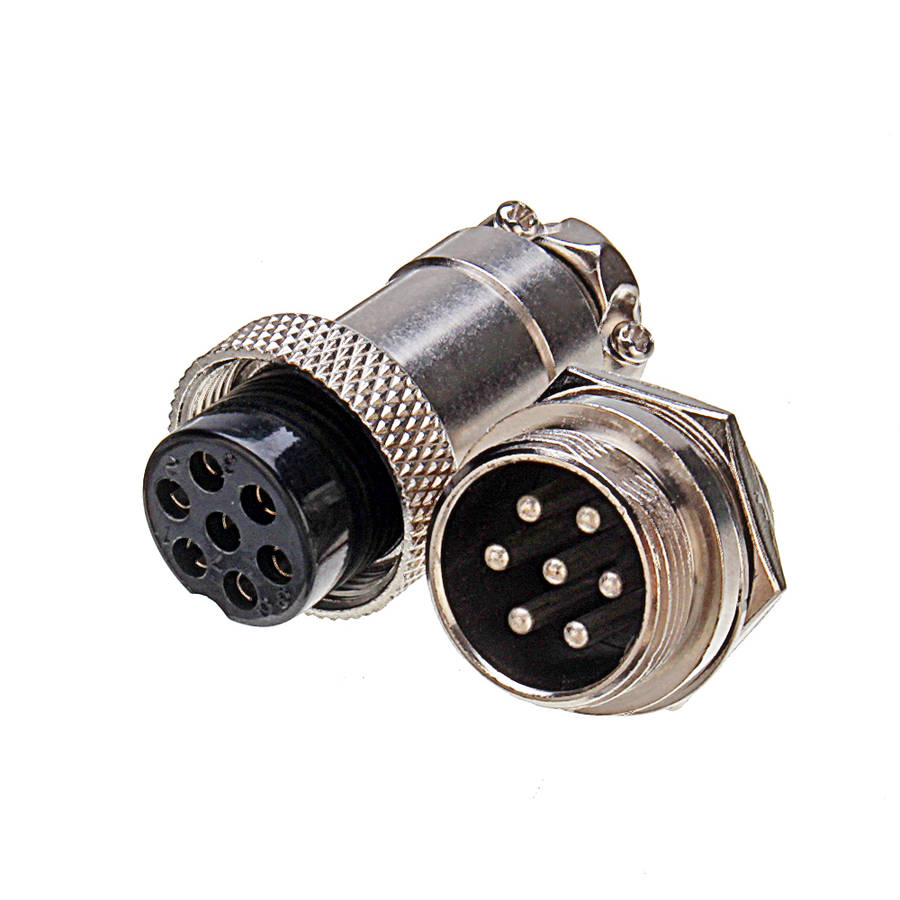

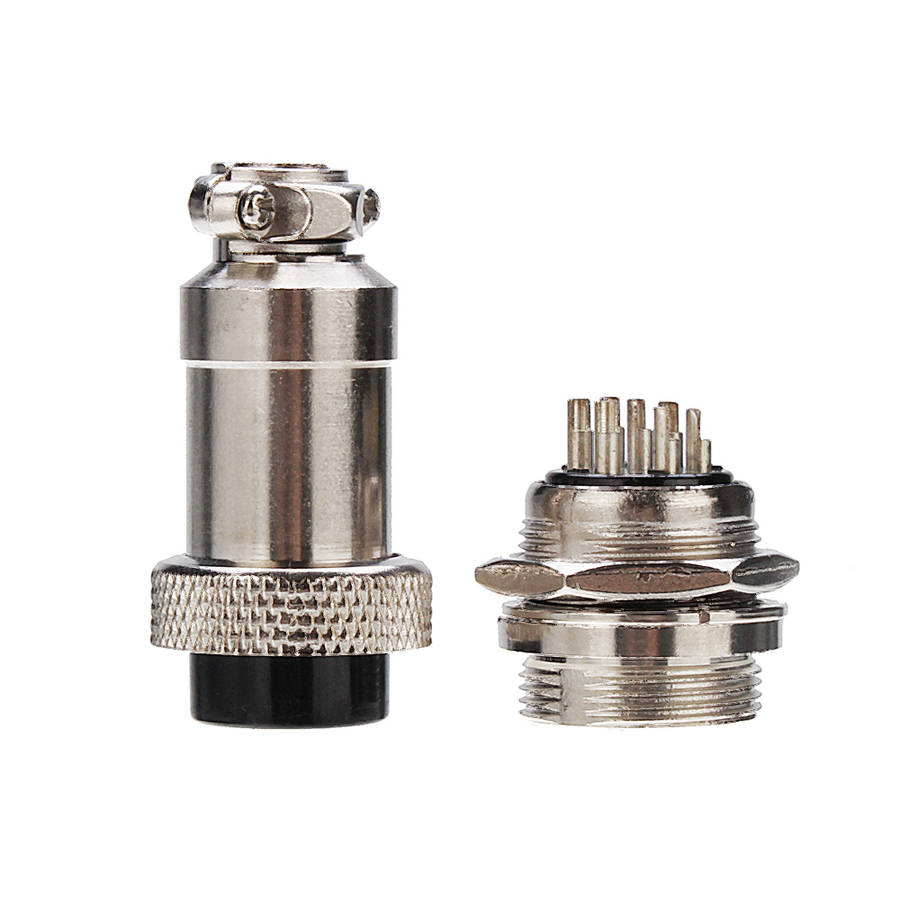

One set which includes one male and one female connector.
With workmanship of cold pressing, it has high-temperature resistance.
Used widely in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems, audio/video, test and measurement, communications, etc.

Specification:

Material: Metal & Hard Plastic
Type: 7Pin
Color: Silver

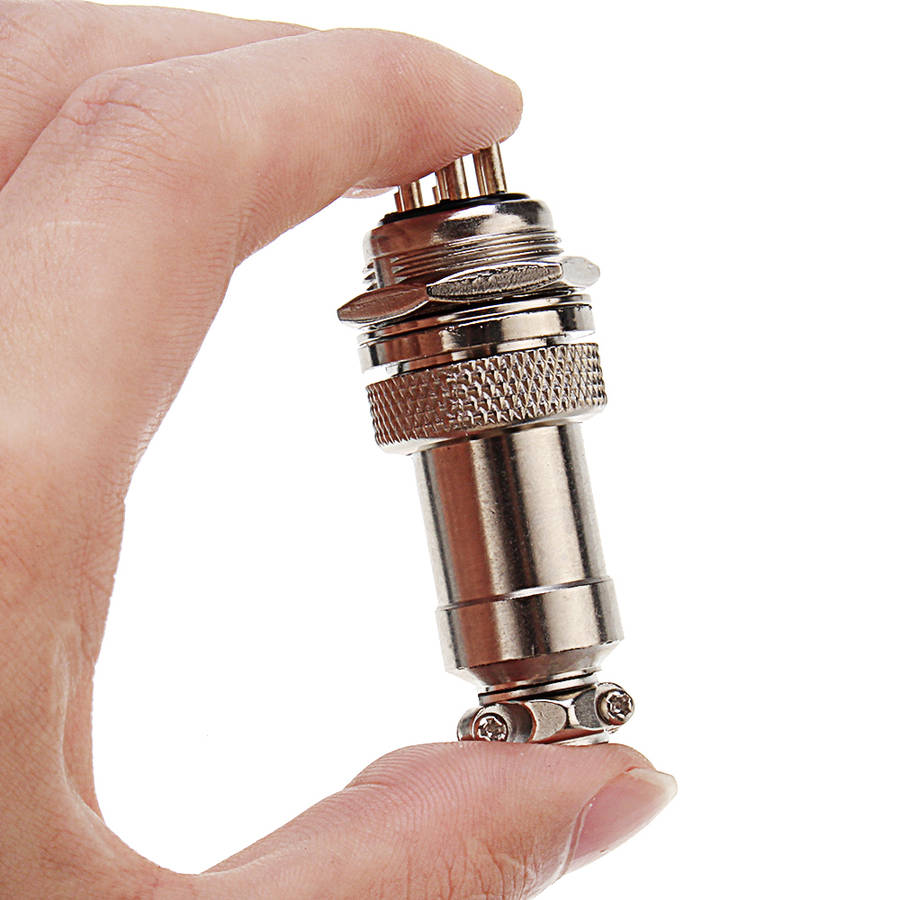

Dimensions: 5.2x2.1cm/2.04x0.83inch
Rated voltage: 400V
Rated current: 20A
Ambient temperature: -50 ~ + 70 c
Relative humidity: + 40 c when the temperature is up to 98%
Atmospheric pressure: up 4,4kpa
Vibration: vibration frequency of 10 ~ 100Hz, acceleration up to 100m / s2
Impact: frequency of 60 to 80 beats/min, acceleration up to 250m / s2
Centrifugal: acceleration of 250m / s2

Note:

1. Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package included:

5 x GX20 Aviation Connector Kit
