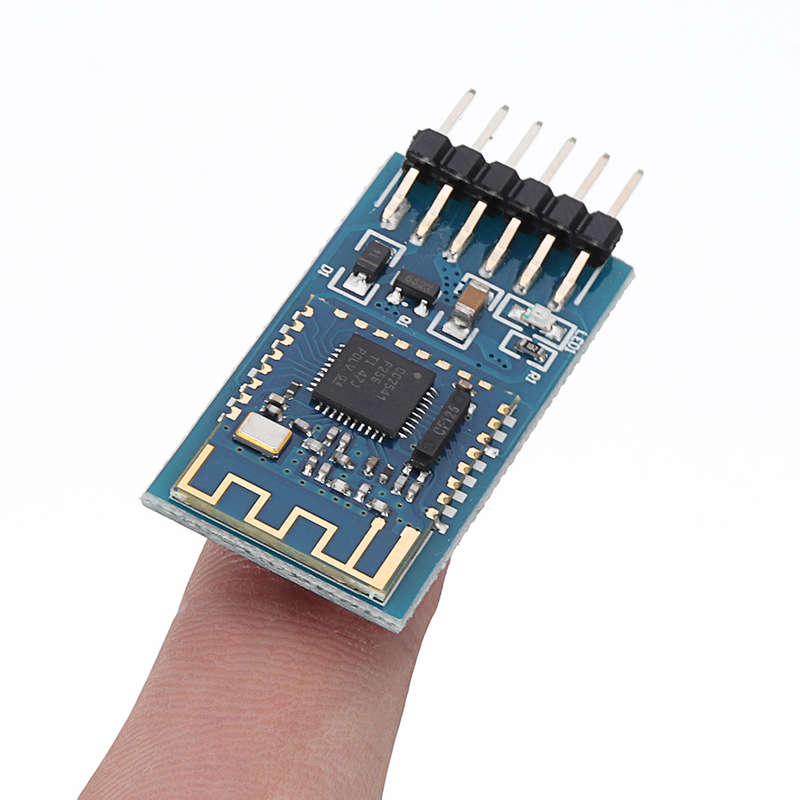

5pcs JDY-08 4.0 bluetooth Module BLE CC2541 Airsync

20 available / new

R649.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641112916

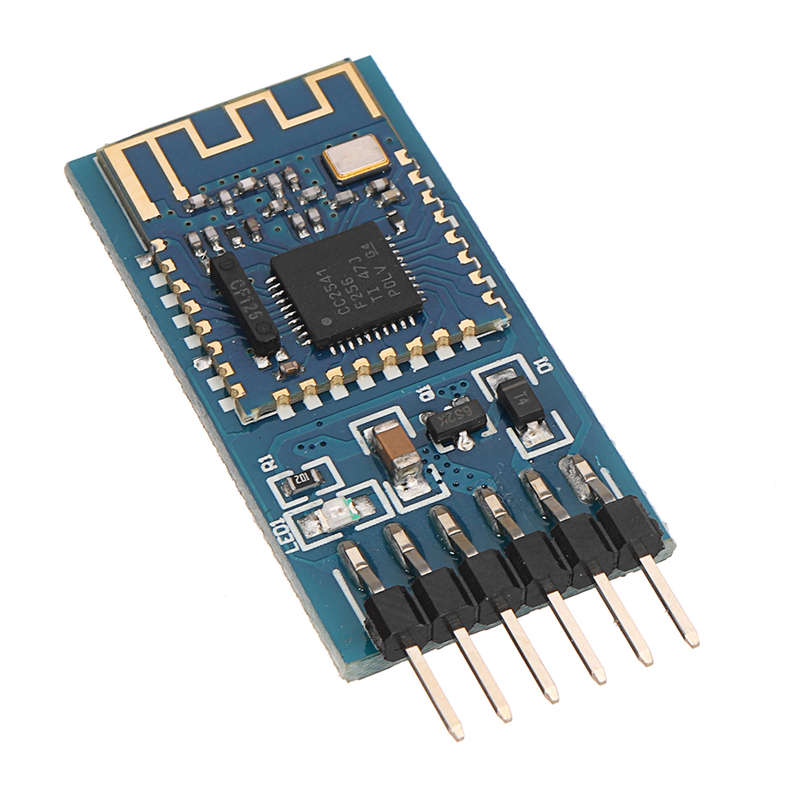

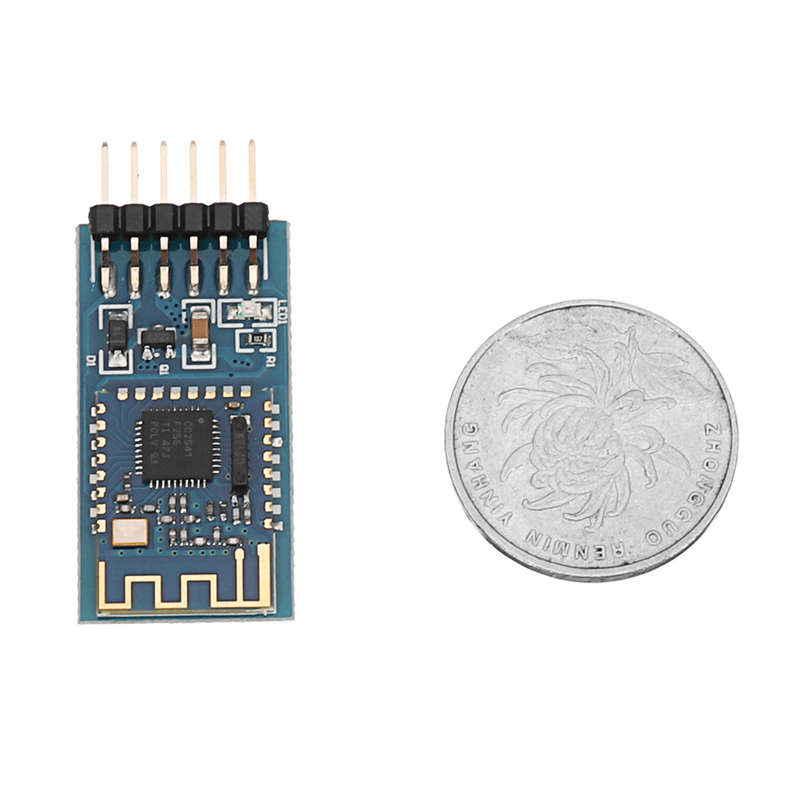

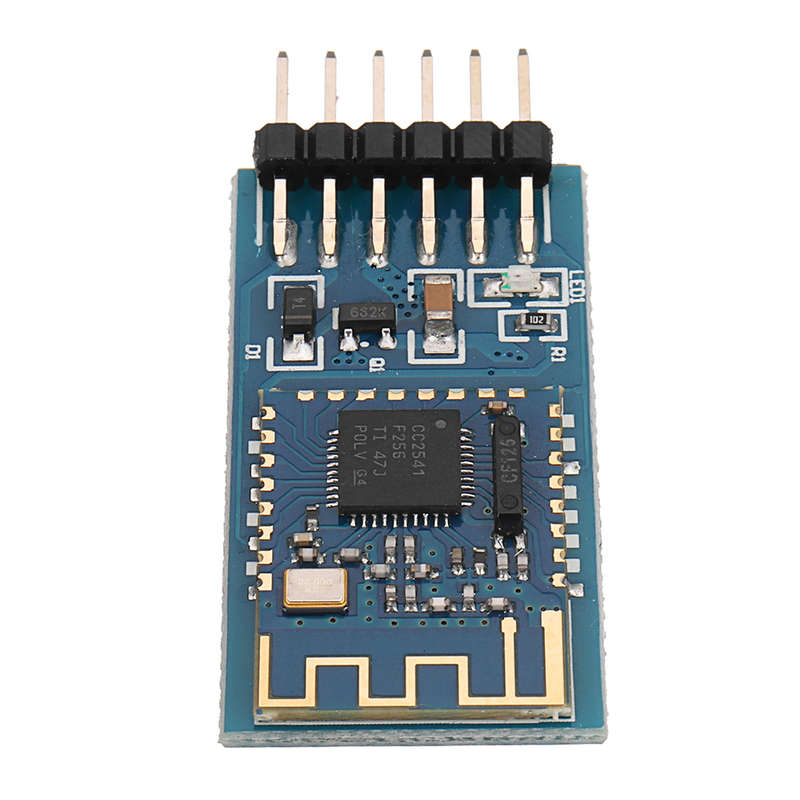

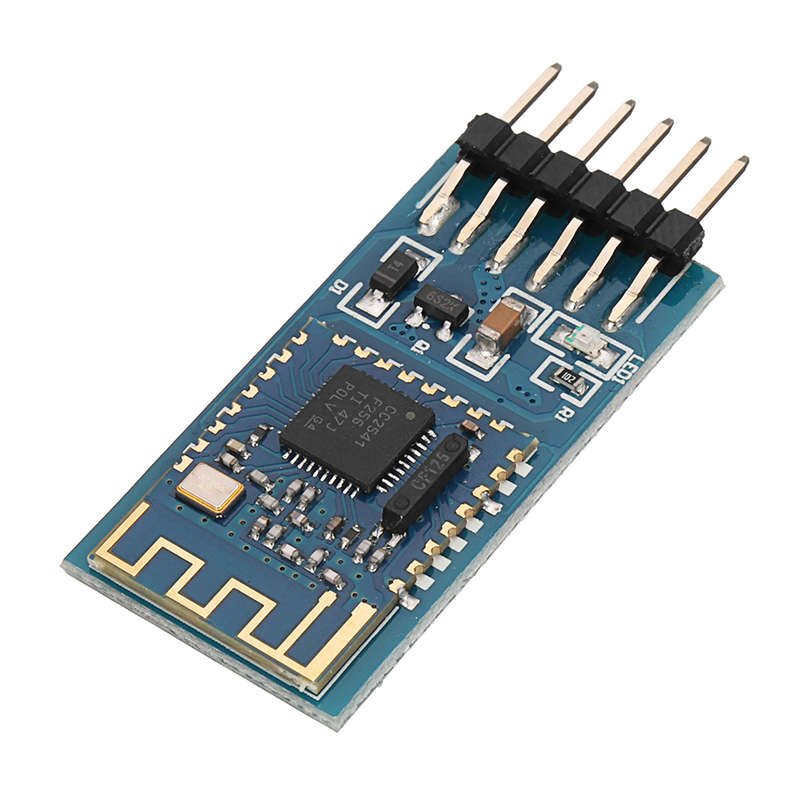

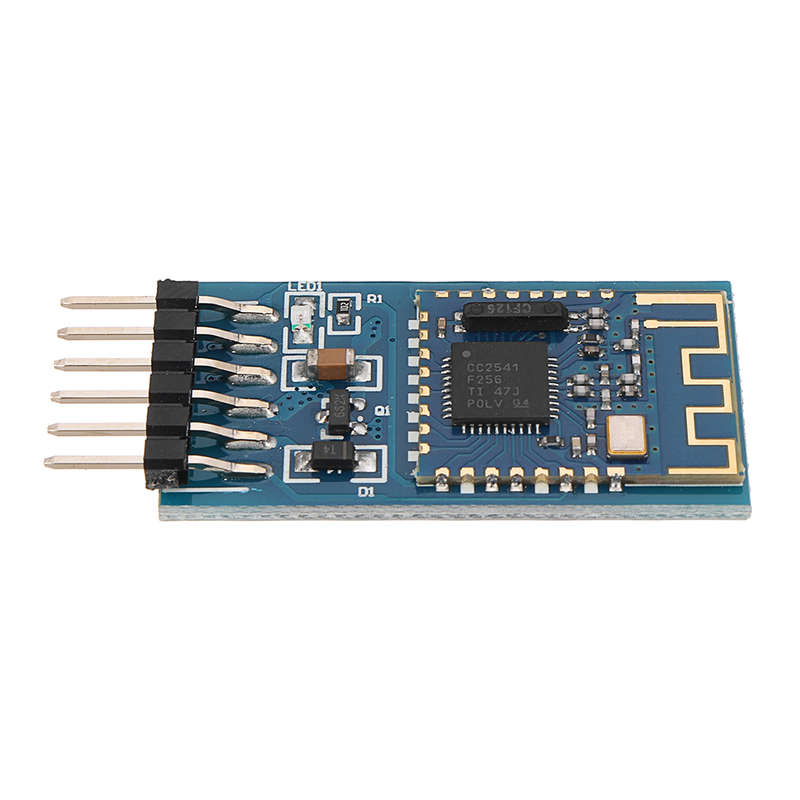

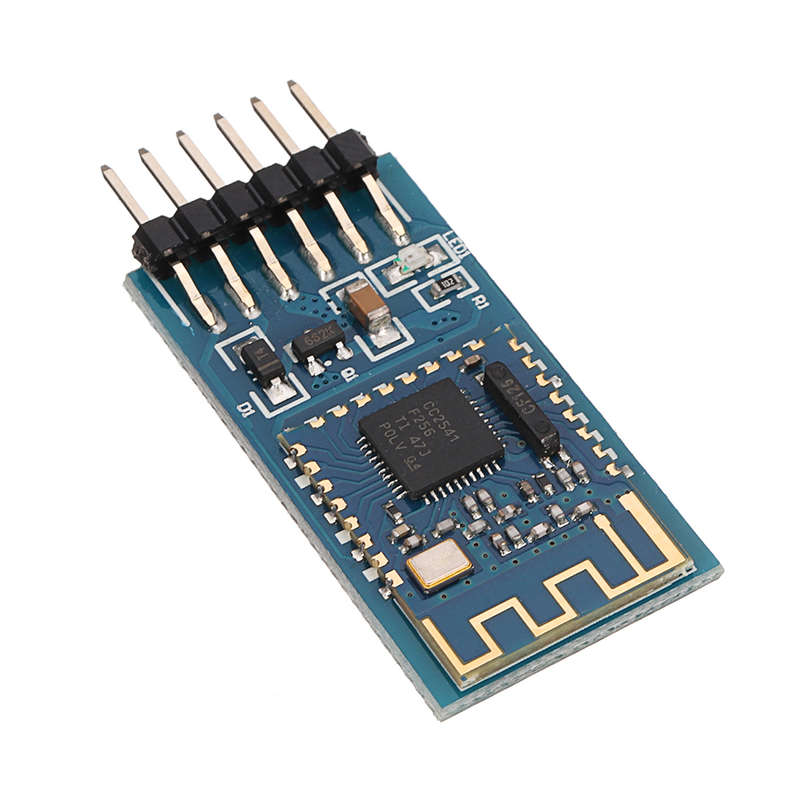

Product introduction :

JDY-08 passthrough module is based on bluetooth 4.0 protocol standard, scope of work frequency of 2.4 GHZ, modulation method for GFSK, maximum transmitted power of 0 db, the largest launch distance of 80 meters, adopt TICC2541 chip design, support the user through the AT command to modify the device name, service UUID, transmission power, such as matching password instructions, convenient use and flexible.

Function introduction :

1:WeChat pass-through (supports AirSync protocol, applies to WeChat H5 or factory server communication, including long packet data parsing and sending and receiving)
2:APP transmission (support Android and IOS data transmission)
3: Mode (support WeChat shake protocol and apple protocol)
4: Sensor mode (temperature, humidity and many other sensor data acquisition applications)
5:host transmission mode (data transmission between application modules, communication between host and slave)
6:host observer mode (application sensor, indoor positioning)
7:PWM mode (used for motor speed regulation and LED light brightness adjustment)
8:IO mode (for mobile phone control relay or LED on/off)
9:indoor chamber location application (application of collecting data to achieve range positioning)

Technical parameters :

1:the communication rate is 3K Bytes/ second
2:1024Bytes can be written in the serial port of APP transmission
3:the effective communication distance is 15 to 30 meters
4:support PWRC pin to control sleep
5:support IO port control disconnect

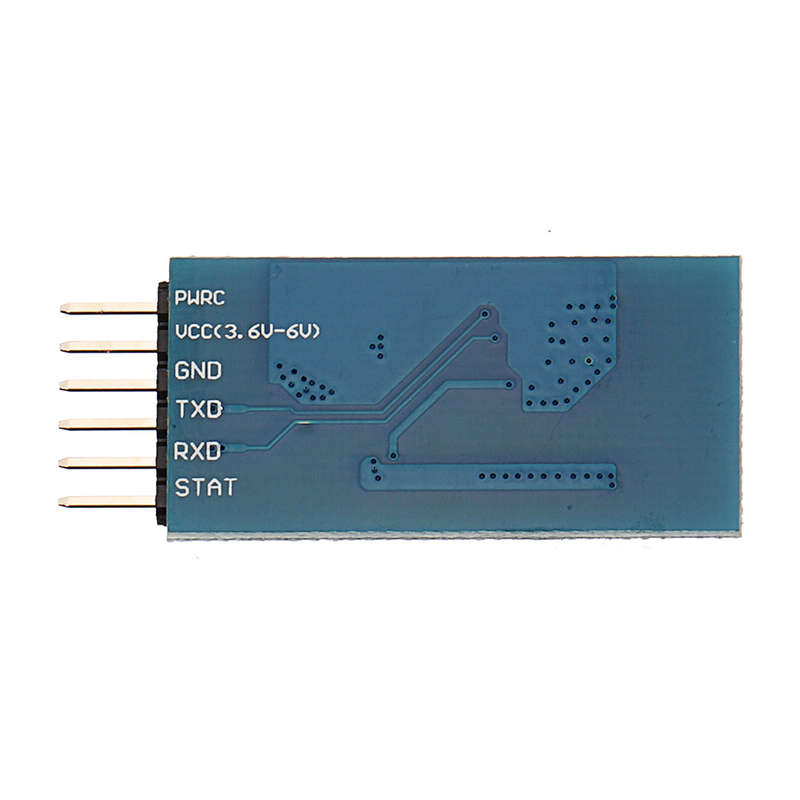

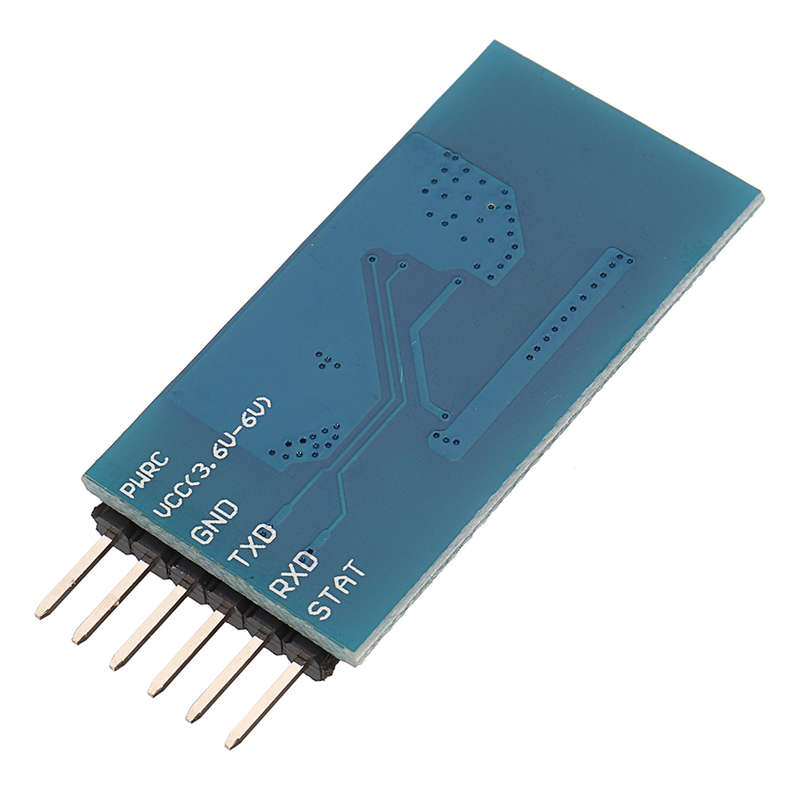

Function description of two pins :

DISCpin: foractive disconnecting of bluetooth connection (default high level, low level disconnecting)
PWRC pin: used to wake up sleep (default to sleep state). Use this pin to ground the AT command
VCC pin: is the power pin of the module, and the power supply voltage ranges from 3.6V to 6V
GND pin: power source ground
TXD pin: serial port output pins
RXD pin: serial input pins

Packageincluded :

5 xJDY-08 4.0 bluetooth Module BLE CC2541 Airsync
