5Pcs MAX31855 MAX6675 SPI K Thermocouple Temperature Sensor Module Board

20 available / new

R701.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3458

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641113000

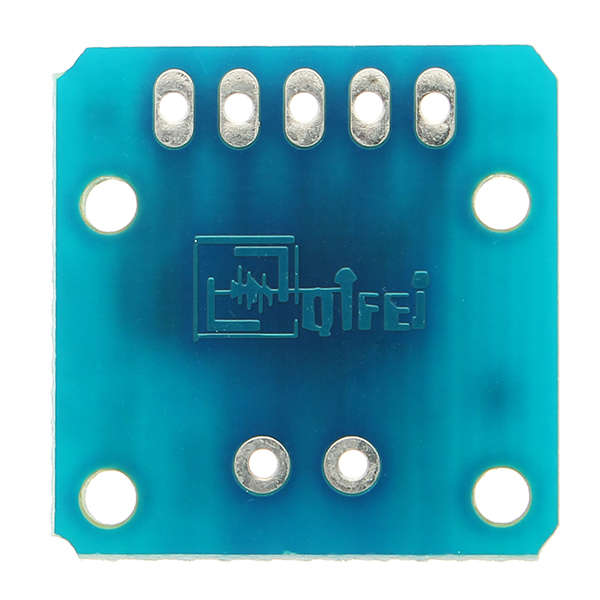

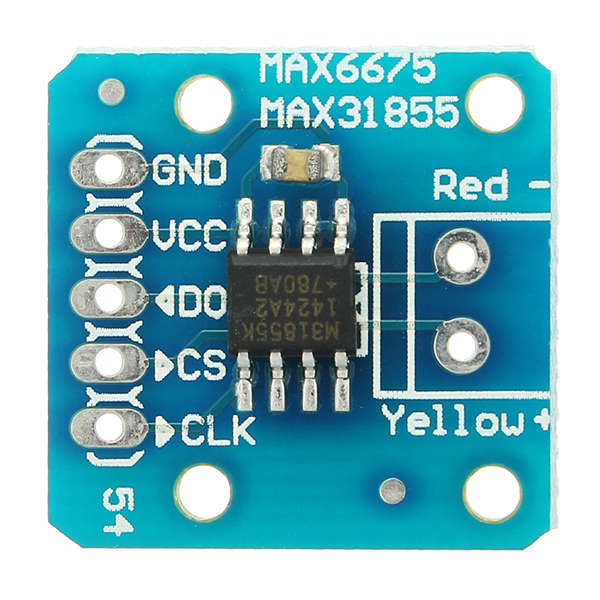

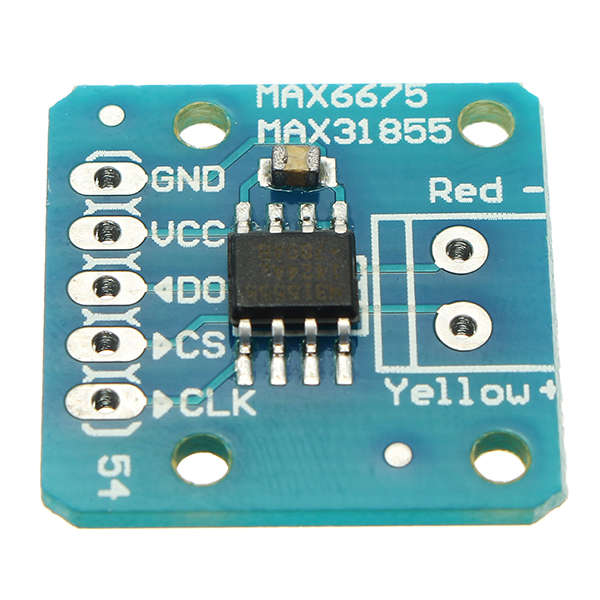

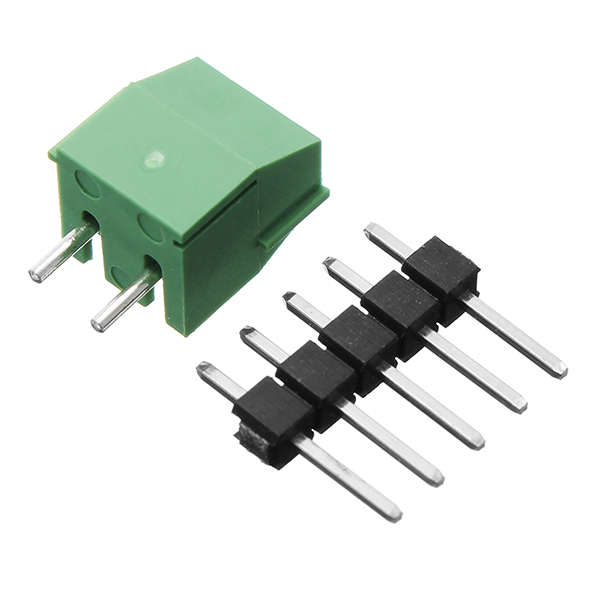

Feature: 1. Thermocouples are very sensitive, requiring a good amplifier with a cold compensation reference. 2. This protuct does everything for you, and can be easily interfaced with any microcontroller even one without an analog input. 3. This board has the chip itself, a 3.3V regulator with 10uF bypass capacitors and level shifting circuitry. 4. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard). Description: 1. Measurement temperature range: -200ﾣC to +1350ﾣC 2. SPI interfaces, high-speed transmission 3. The input voltage is 3-5V DC 4. Direct digital output temperature value, no amplifiers, no ADC 5. 14-bit resolution, 0.25 degree temperature accuracy Note: 1. Works with any K type thermocouple 2. K thermocouples have about &pm;2ﾣC to &pm;6ﾣC accuracy 3. Internal temperature reading 4. 3 to 5v power supply and logic level compliant 5. SPI data output requires any 3 digital I/O pins Packing included: 5 x Thermocouple Board
