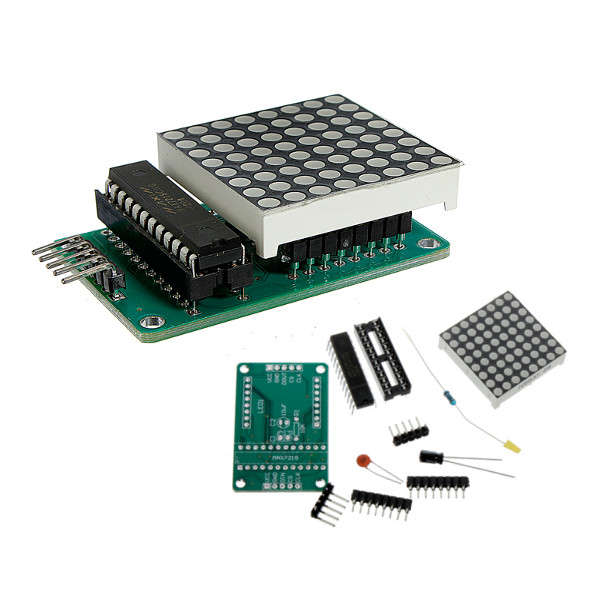

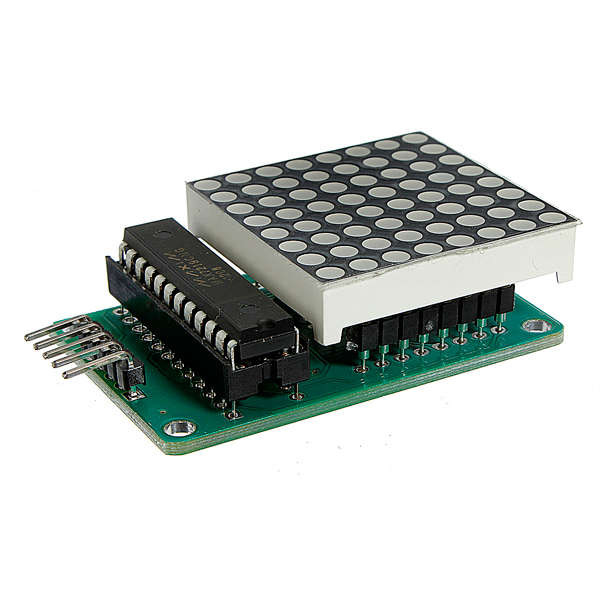

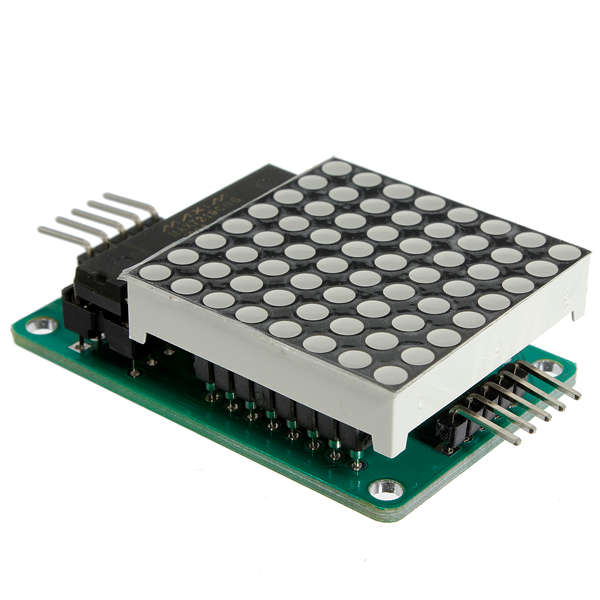

5Pcs MAX7219 Dot Matrix Module DIY Kit SCM Control Module For Arduino

5Pcs MAX7219 Dot Matrix Module DIY Kit SCM Control Module For Arduino
Descriptions :
The MAX7219 is an integrated serial input / output common-cathode display driver, it is connected to a microprocessor with 8digit 7segment digital LED display can also be connected to the bar graph display or 64 separate LED.
On B BCD encoder including an on chip, multi channel scanning loop word drive, but also an 8 x 8 static RAM is used to store each data. Only one external register is used to set the current of each LED segment.

A convenient four wire serial interface can connect all general purpose microprocessor. Each data can be addressed in the update does not need to rewrite all the display. MAX7219 also allows the user to select on each data coding or non-coding.


The entire device contains a 150uA low-power shutdown mode, analog and digital brightness control, a scan-limit register allows the user to display the 1-8 bits of data, as well as a let all LED light detection mode.

Only need three IO ports can drive a dot-matrix! Dot-matrix display, flicker-free! Supports cascading !
If you need English file about this item, please write email to wangzhanxiemeijuan@Racer Gadgets.cn or huxiaoqi@Racer Gadgets.cn
Notice:

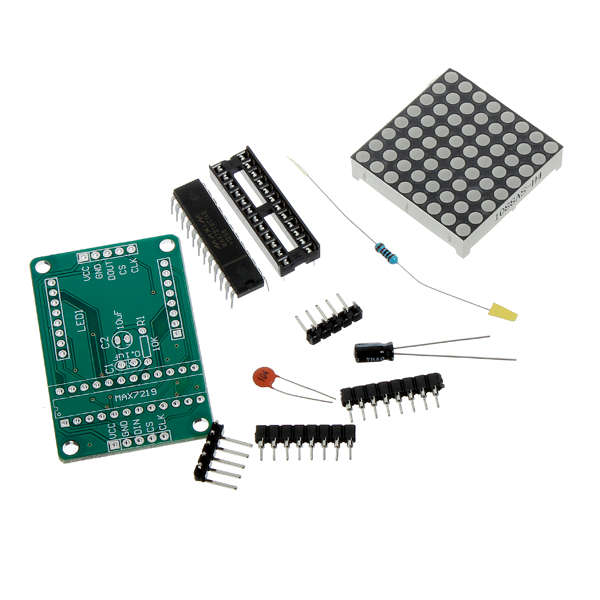

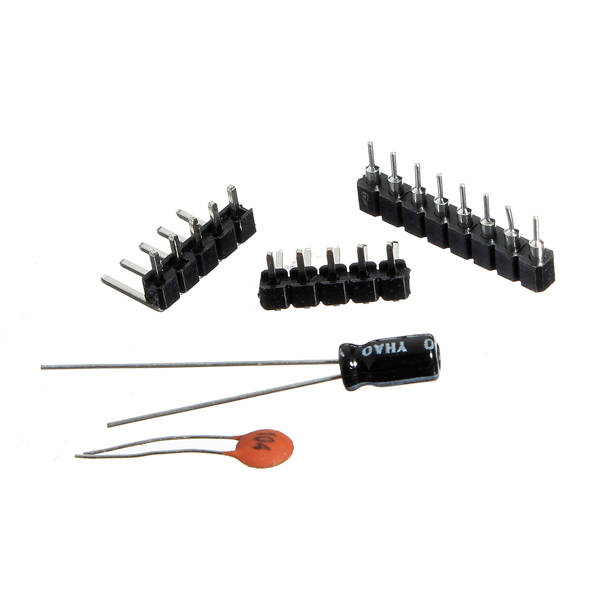

These are the parts, no soldering
If you need soldering, please search SKU097972
Package included :
5 x MAX7219 Dot Matrix Module
