5Pcs MAX7219 Dot Matrix Module Microcontroller LED Module Display Module MAX7219 DIY Kit 5Pcs MAX7219 Dot Matrix Module Microcontroller LED Module Display Module MAX7219 DIY Kit 5Pcs MAX7219 Dot Matrix Module Microcontroller LED Module Display Module MAX7219 DIY Kit
5Pcs MAX7219 Dot Matrix Module Microcontroller LED Module Display Module MAX7219 DIY Kit 5Pcs MAX7219 Dot Matrix Module Microcontroller LED Module Display Module MAX7219 DIY Kit 5Pcs MAX7219 Dot Matrix Module Microcontroller LED Module Display Module MAX7219 DIY Kit

5Pcs MAX7219 Dot Matrix Module Microcontroller LED Module Display Module MAX7219 DIY Kit

20 available / new
R450.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641113005
.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}
Description:

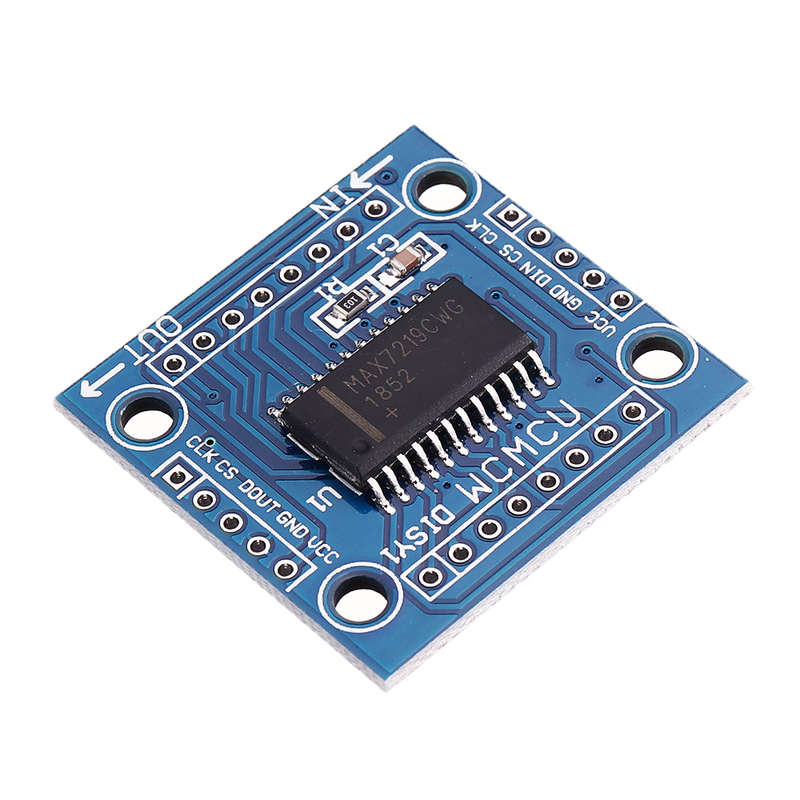

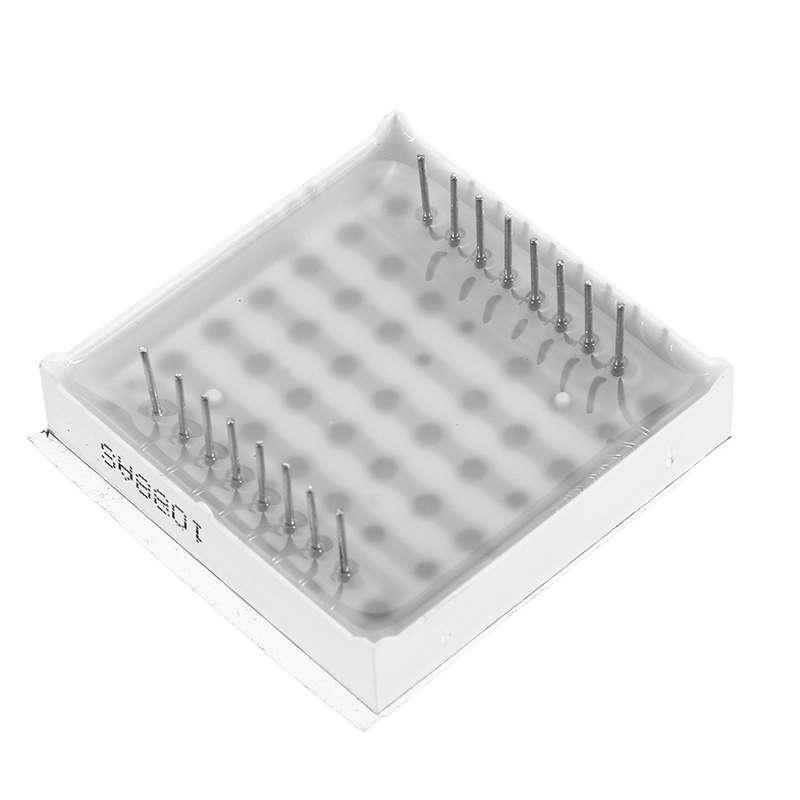

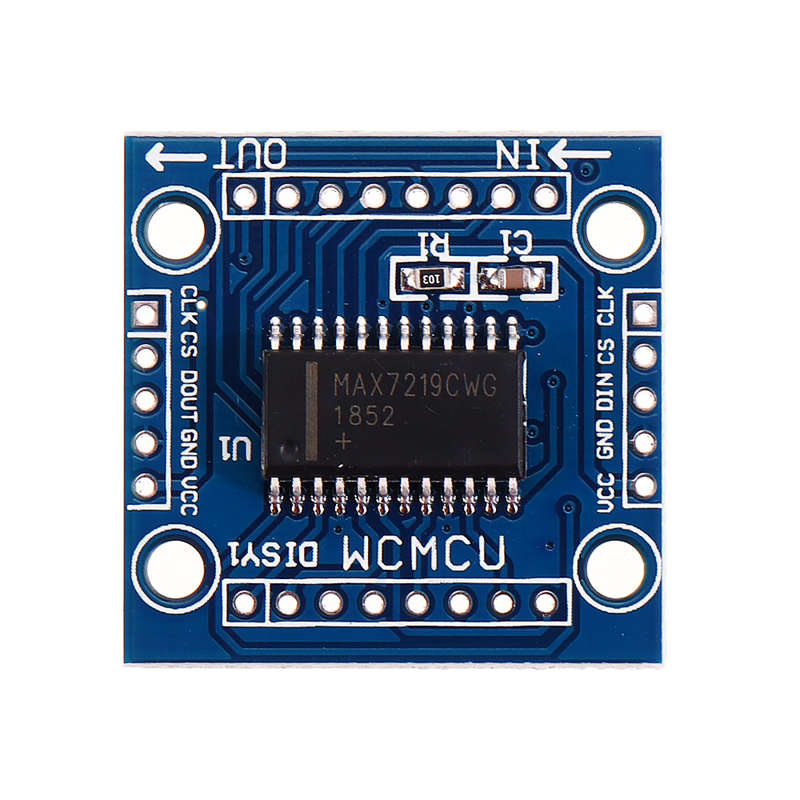

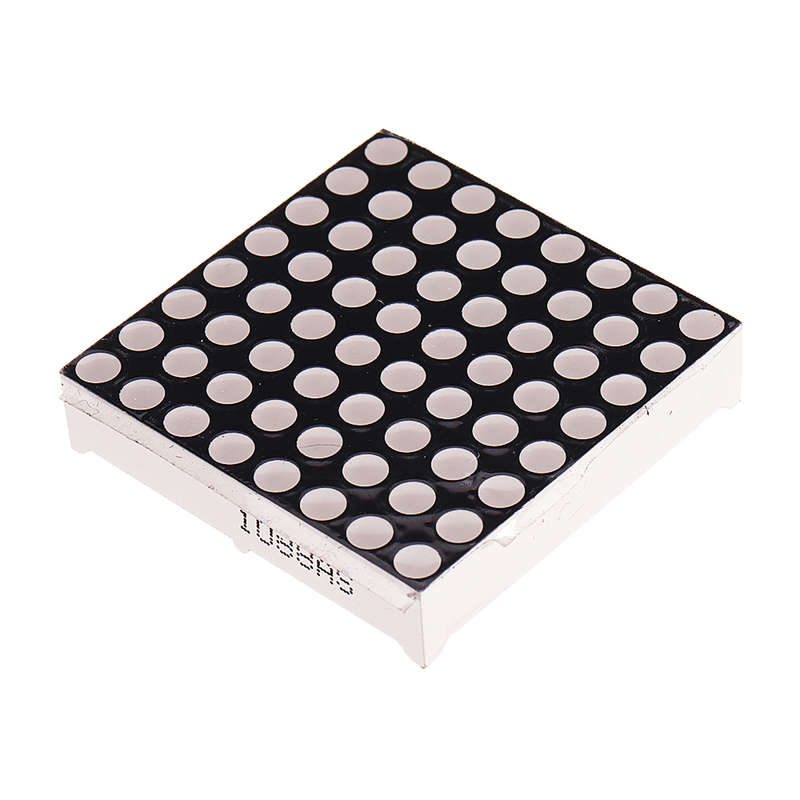

A single module can drive an 8*8 common negative lattice
Module operating voltage: 5V
Module size: 3.2 cm long, 3.2 cm wide and 1.5 cm high
With 4 fixed screw holes and 3 mm diameter, it can be fixed with M3 copper column.
Modules with input and output interfaces support multiple modules cascade

Wiring instructions:

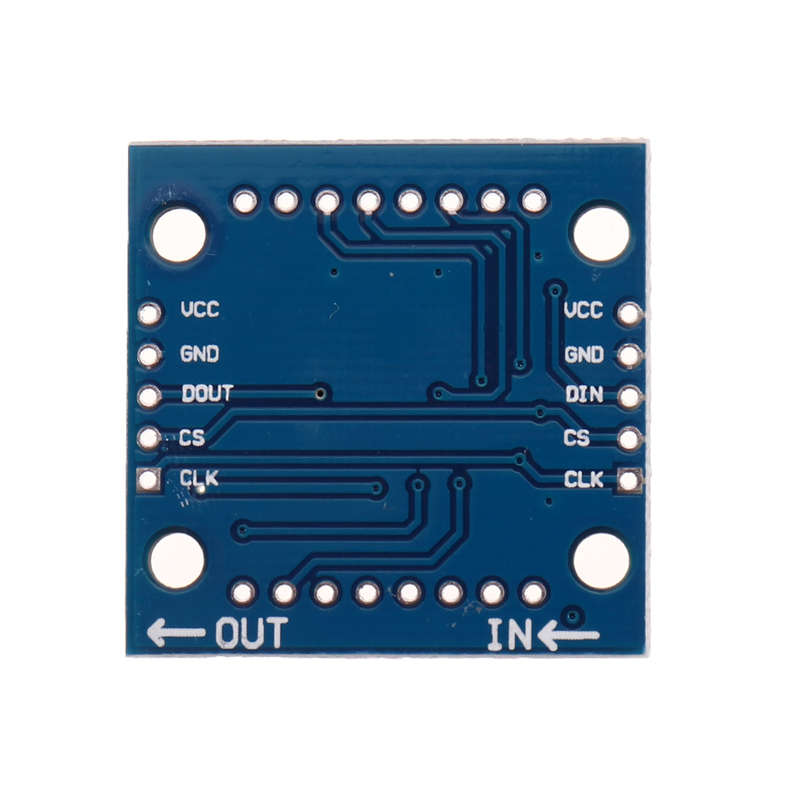

The left side of the module is the input port, and the right side is the output port.
When controlling a single module, you only need to connect the input port to the CPU.
When multiple modules are cascaded, the input end of the first module connects to the CPU, the output end connects to the input end of the second module, the output end of the second module connects to the input end of the third module, and so on.
Take 51 single chip computer as an example:
VCC 5V
GND GND
DIN_P20
CS_P21
CLK_P22

Package included:

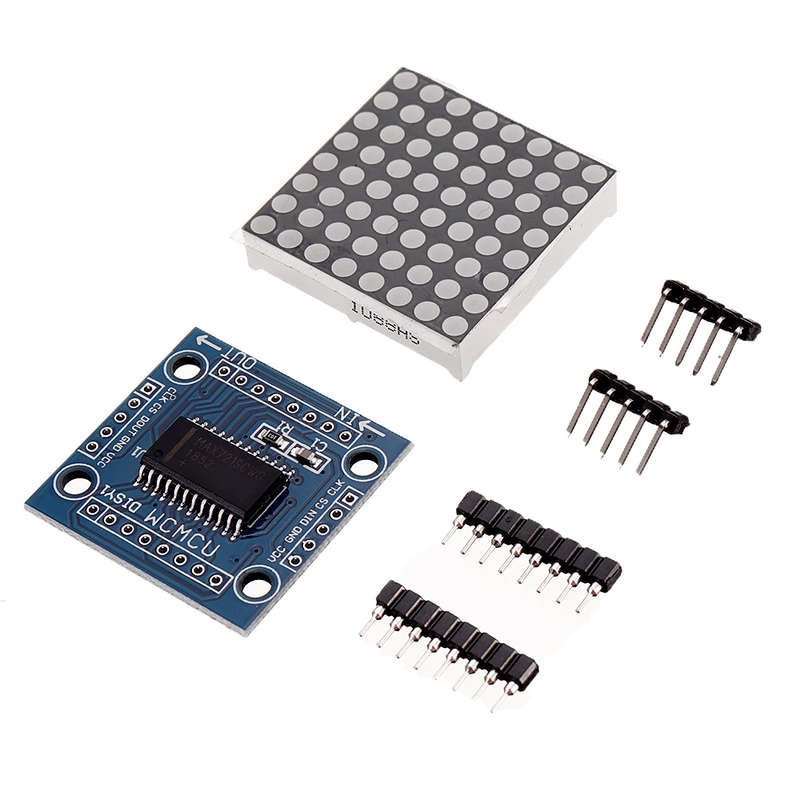

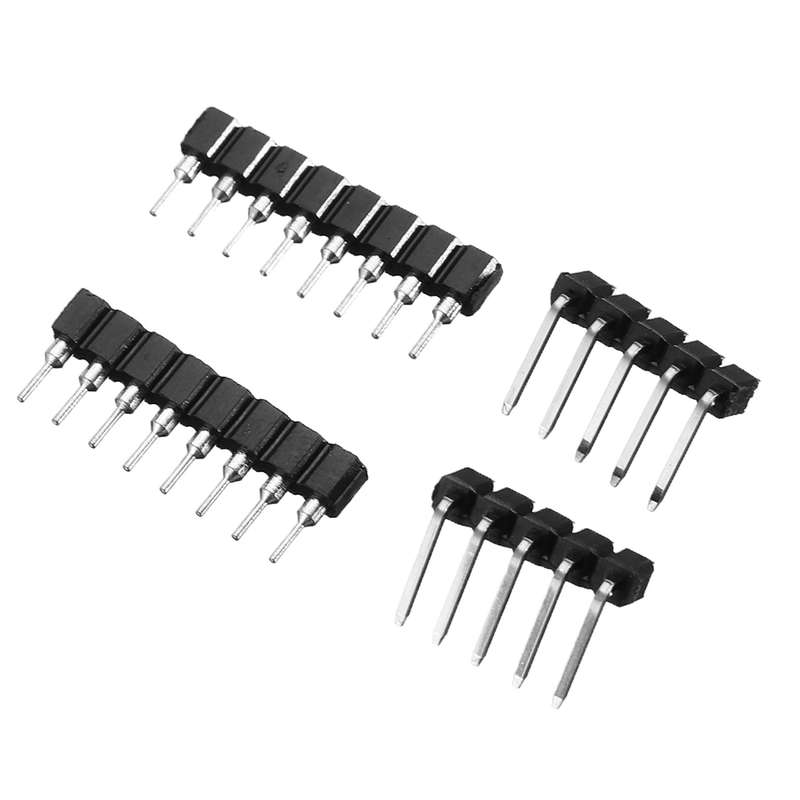

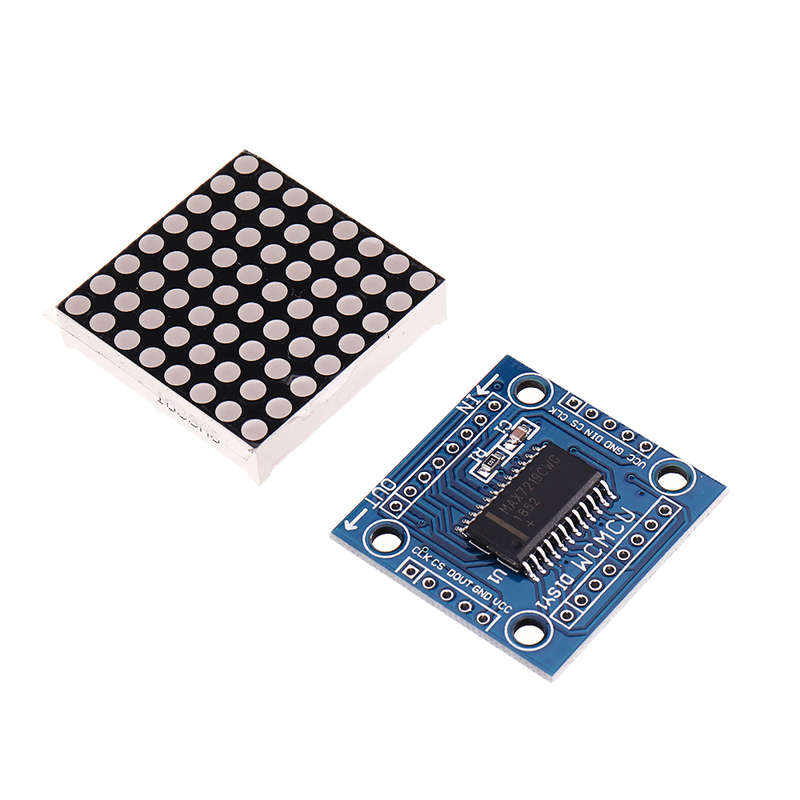

5 x MAX7219 Dot Matrix Module DIY kit
