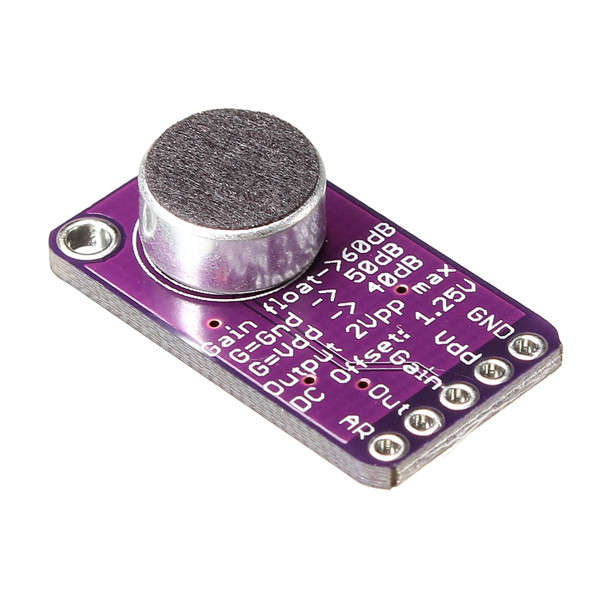

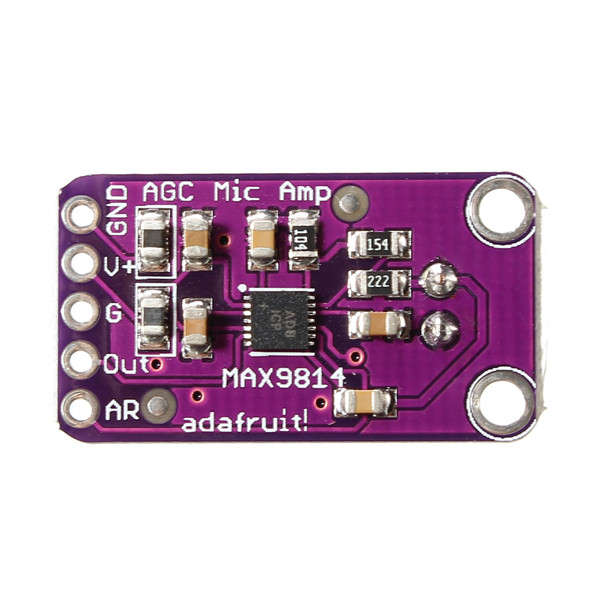

5pcs MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W

5pcs MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W

20 available / new
R787.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643368973
Specifications:

- Supply Voltage: 2.7v-5.5v @ 3mA current
- Output: 2Vpp on 1.25V bias
- Frequency Response: 20Hz - 20KHz
- Programmable Attack and Release Ratio
- Automatic gain, selectable max from 40dB, 50dB or 60dB
- Low Input-Referred Noise Density of 30nV/
- Low THD: 0.04% (typ)
- Low Power Shutdown Mode
- Built-in 2V low-noise microphone bias
- -40ᆪC ~ +85ᆪC extended temperature range

Package included:

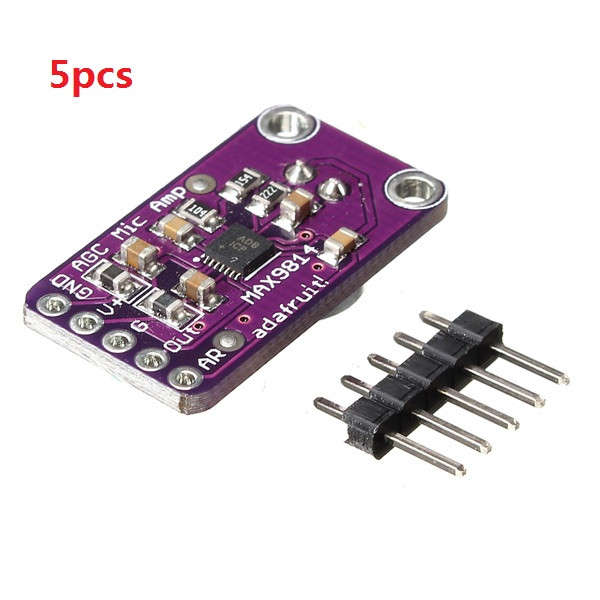

5 x Microphone AGC Amplifier Module







, ,
