5pcs Mini DC 3.5-6V to 3.3V DC-DC Converter Step Down Buck Regulator LDO Module Voltage regulator Bo

New

20 available

R441.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4021

92.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654088107

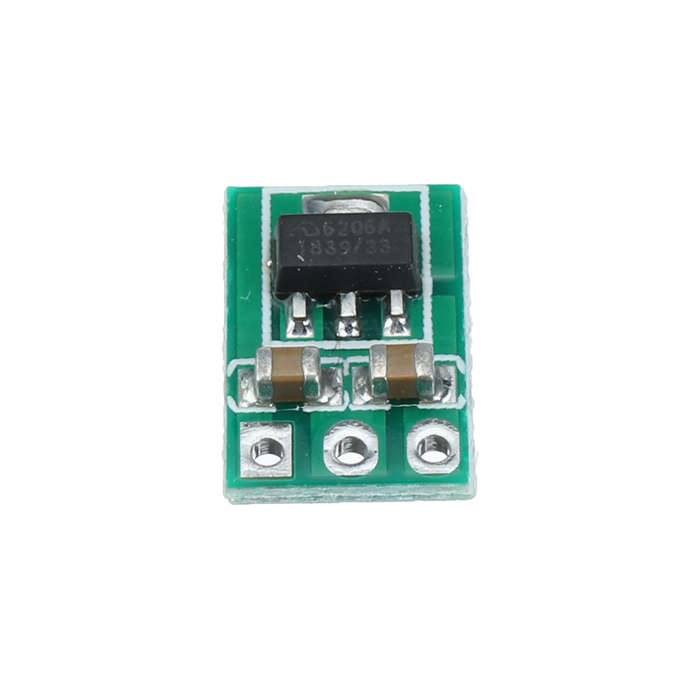

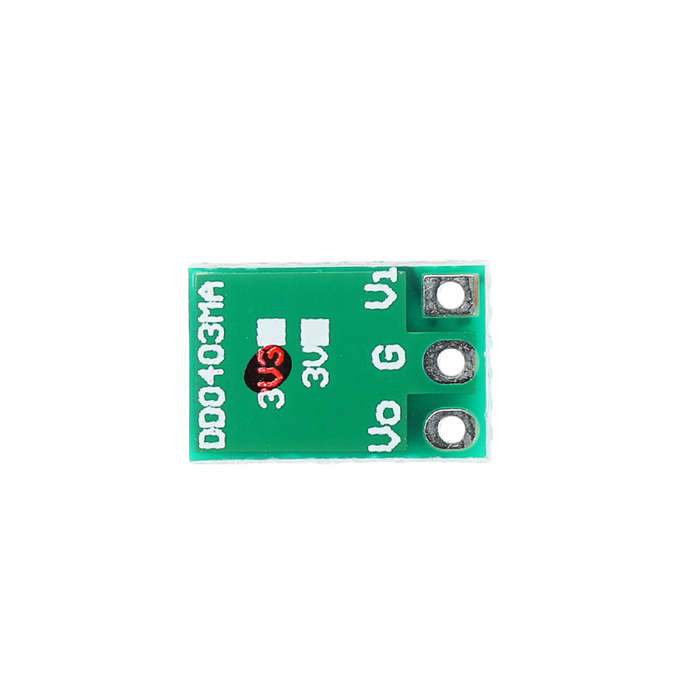

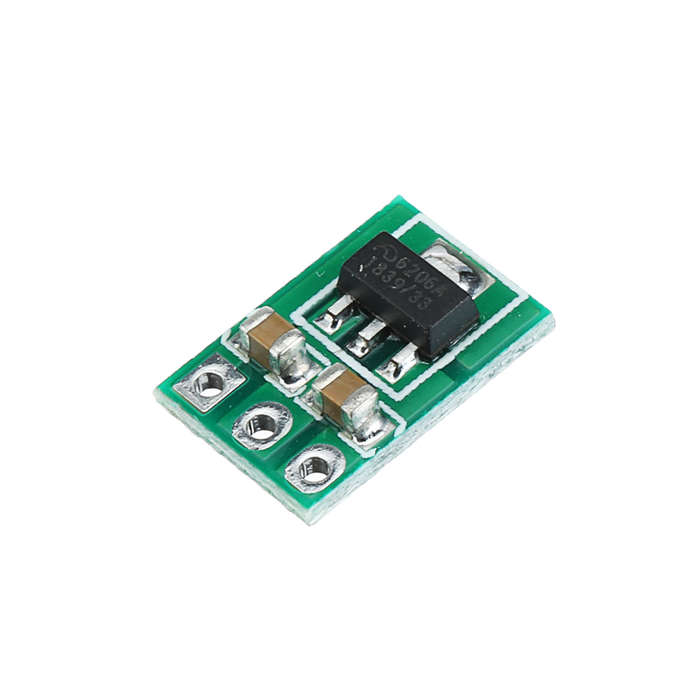

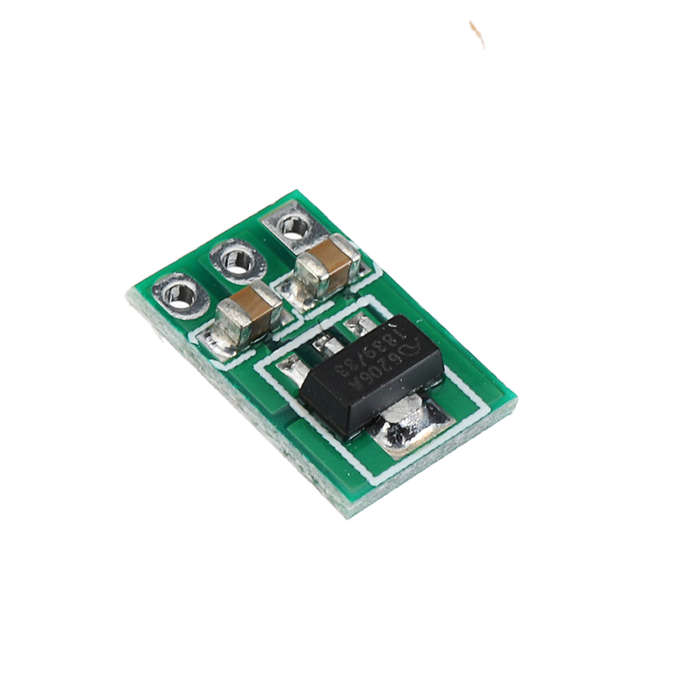

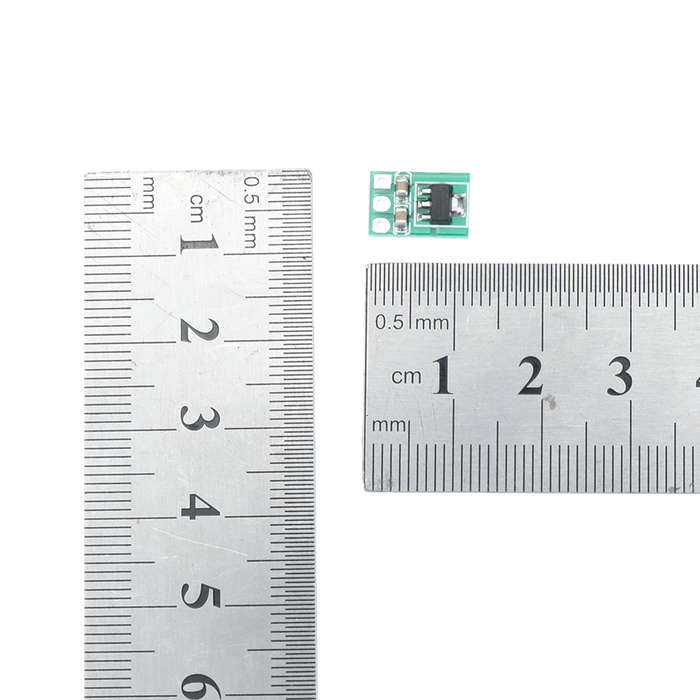

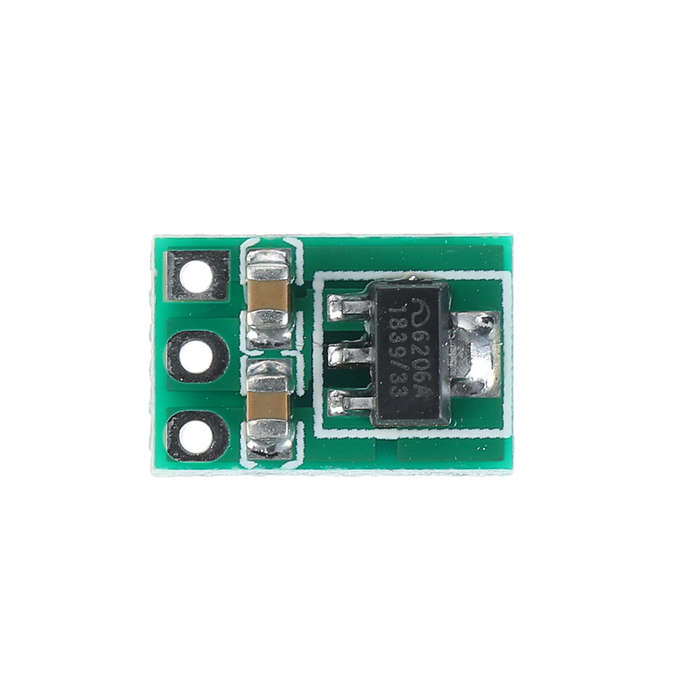

Description: Input voltage: DC 3.5-6V Output voltage: DC 3.3V Long time maximum output current: 300mA Short time maximum output current: 400mA Highly Accurate: &pm;2% Quiescent Current : 8uA Short Circuit Current : 30mA Over Current Protection : 500mA Operating Temperature: -25a - +85a Size : 11.6 x 7.8 x 2.5 mm Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered. Note: 1. Input voltage can not be greater than the maximum input range. 2. Output power can not be greater than the maximum load for a long time. 3. Input power must be greater than the output power, because the power consumption of the module itself. Applications: 3.3V MCU ARM CPU FPGA/CPLD 5V 3.7V TO 3.3V lithium battery-powered systems 3.3V Motora Toy WIFI esp8266 Module CCTV camera Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee Smart home / home automation Battery Charger Pre-Regulator for Linear Regulators FM radio Battery powered equipment Audio amplifier
