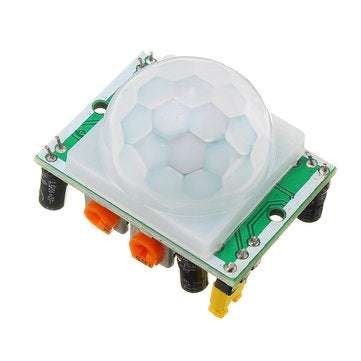

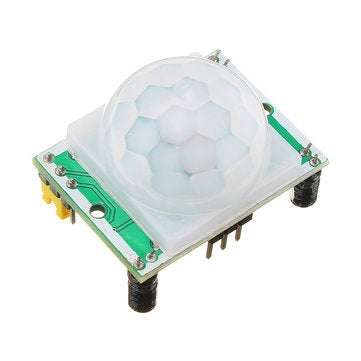

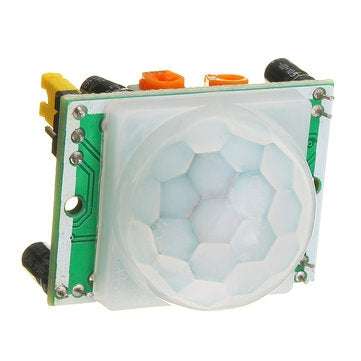

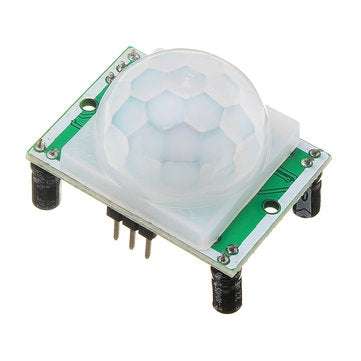

5pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module

20 available / new

R418.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3628

93.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

645865307

Features:

Weight: 7g (approx)

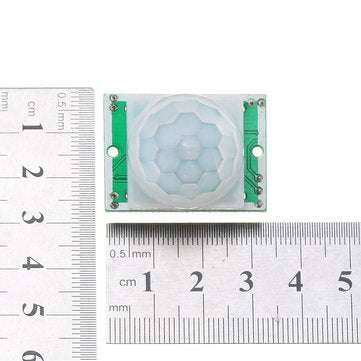

Dimension: 3.2cm x 2.4cm x 2.8cm (approx)
Infrared sensor with control circuit board
The sensitivity and holding time can be adjusted
Working voltage range: DC 4.5V- 20V
Current drain:<60uA
Voltage output: High/Low level signal:3.3V TTL output
Detection distance: 3--7M(can be adjusted)
Detection range: <140ﾣ
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger H: Repeat Trigger (default)
Work temperature:-20-+80ﾣC
Trigger method: L unrepeatable trigger / H repeatable trigger

Note:

Sensitive Setting: turn to right, distance increases (About 7M); turn to left, distance reduce (About 3M)
Time Setting: turn to right, time increases (About 300S); turn to left, time reduce (About 5S).
Infrared sensor with control circuit board. The sensitivity and holding time can be adjusted.

Package Included:

5 x IR Detector Module
