5Pcs Raindrops Rain Detection Sensor Module Weather Humidity

Description:

1. The item is for robot kit, raindrops, rain sensor, monitoring can be used for a variety of weather conditions, and converted into the number of the reference signal and the AO output.

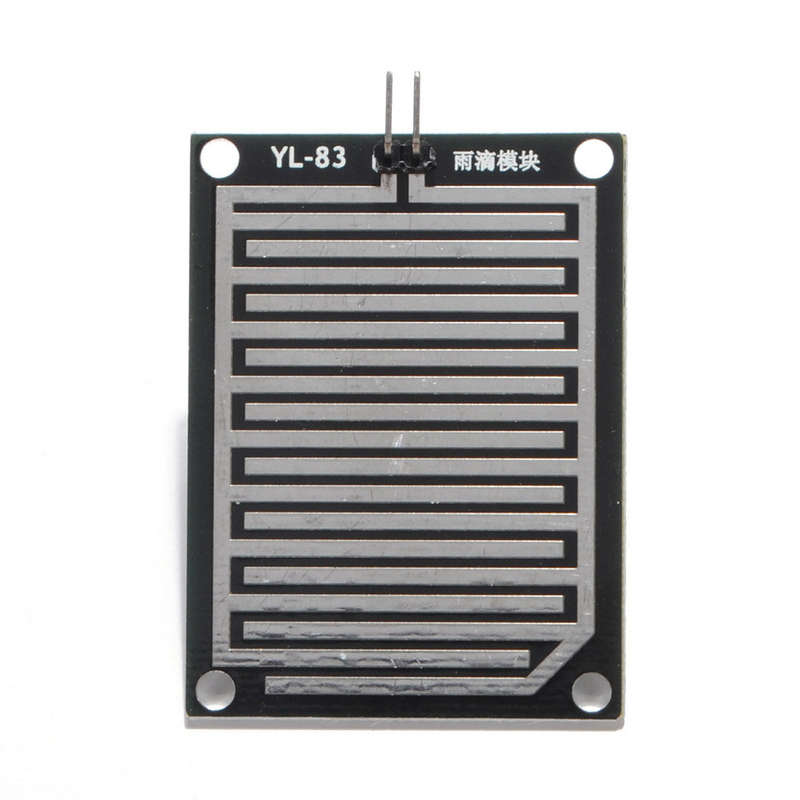

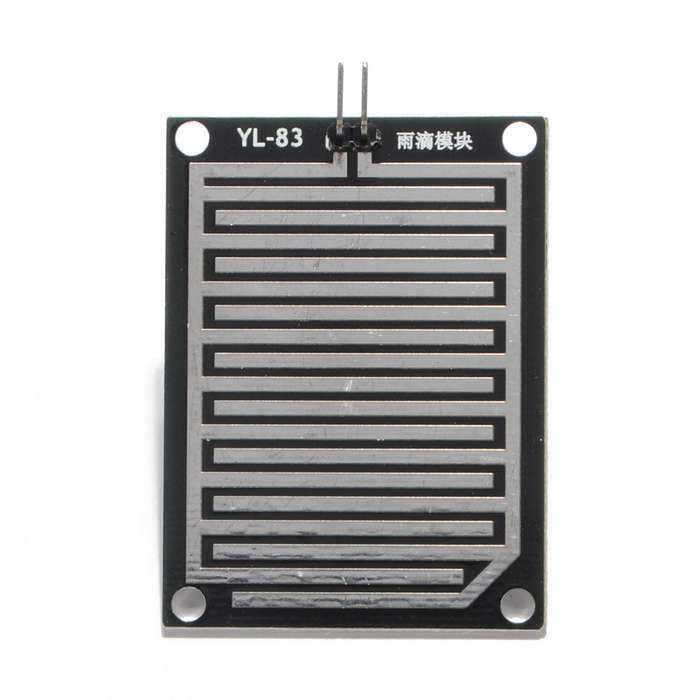

2. The sensor uses the FR-04 high-quality double-sided materials, King Size 5.0 * 4.0CM, and with the surface of the nickel plating treatment, against oxidative, conductivity, superior performance and longevity;
3. The output in the form: digital switching outputs (0 and 1) and analog AO voltage output;
4. TTL-level output, TTL output valid signal is low. Driving capability 100MA so, can directly drive relays, buzzer, a small fan, and so on.

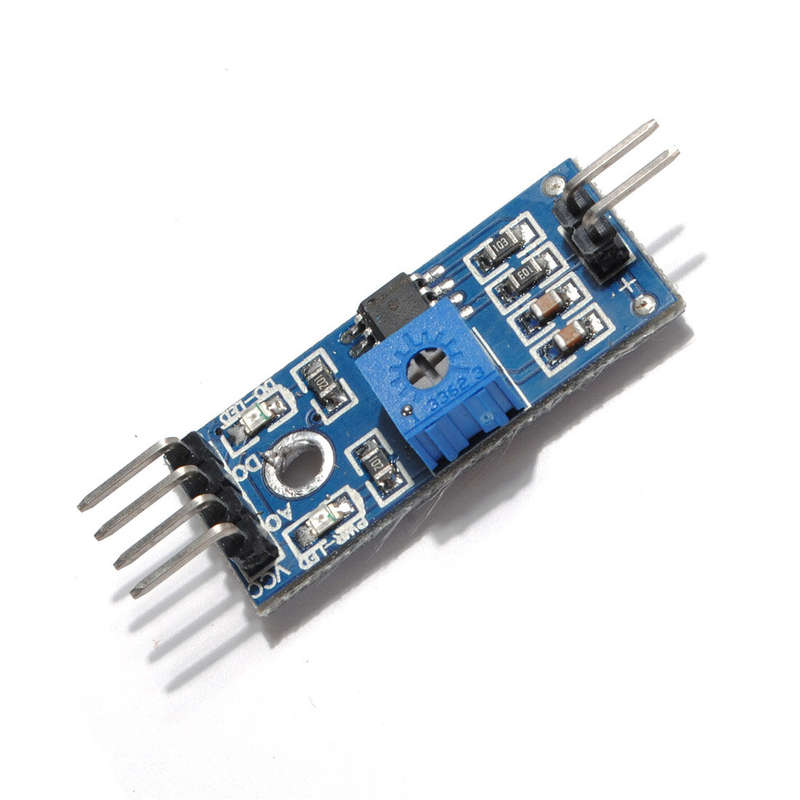

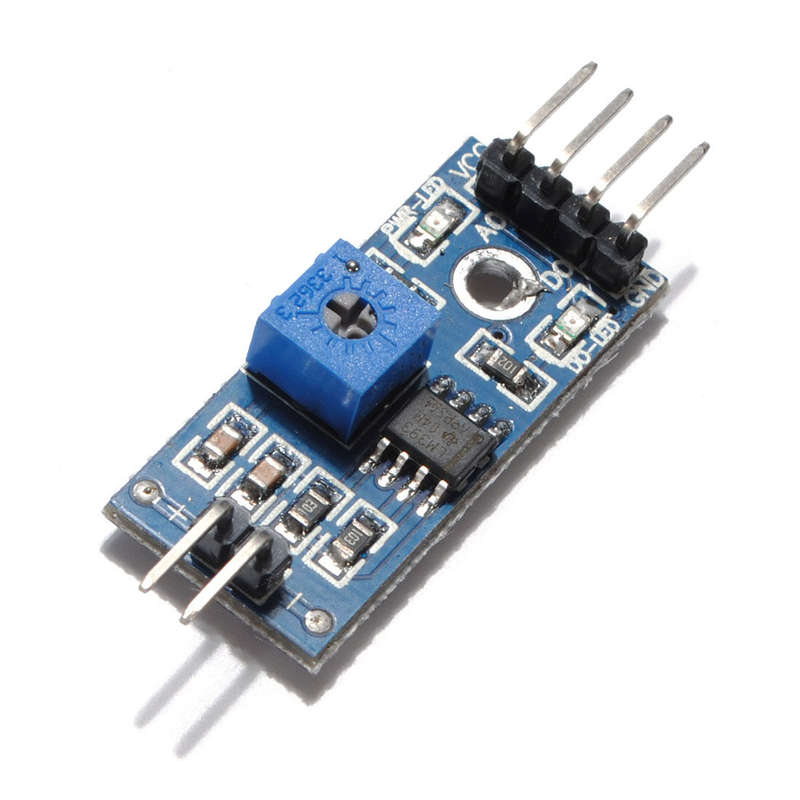

5. Sensitivity can be adjusted via potentiometer
6. LED lights up when there is no rain output is high, raindrop up, the output ground level, LED light.
