Main applications of wireless transceivers:
Remote wireless meter reading, home and building automation, wireless alarm and security systems, industrial monitoring, remote irrigation systems
Product introduction:
The RFM95 transceiver belongs to the LoRaTM remote communication module, which provides ultra-long-distance spread spectrum communication and has superior anti-interference and ultra-low current consumption. RFM95 uses Maple`s patented radio frequency LoRaTM module modulation technology, the receiving sensitivity is above -148dBm, and the cost of crystal and materials is low. The combination of high sensitivity and integrated +20dBm power amplifier reduces the link budget and leads the industry, making it an ideal choice for long-distance and stable performance applications. LoRaTM has strong advantages in the field of traditional modulation technology and in terms of modularity and sensitivity, which can solve traditional design problems in long-distance, anti-interference and energy consumption. RFM95 has high-performance (G)FSK modulation mode, supports WMBus, IEEE802.15.4g and other systems, RFM95 transmits low phase noise, high sensitivity, high-quality receiving link and IIP3, and the current consumption is significantly lower than the same device in the industry .
Basic parameters:

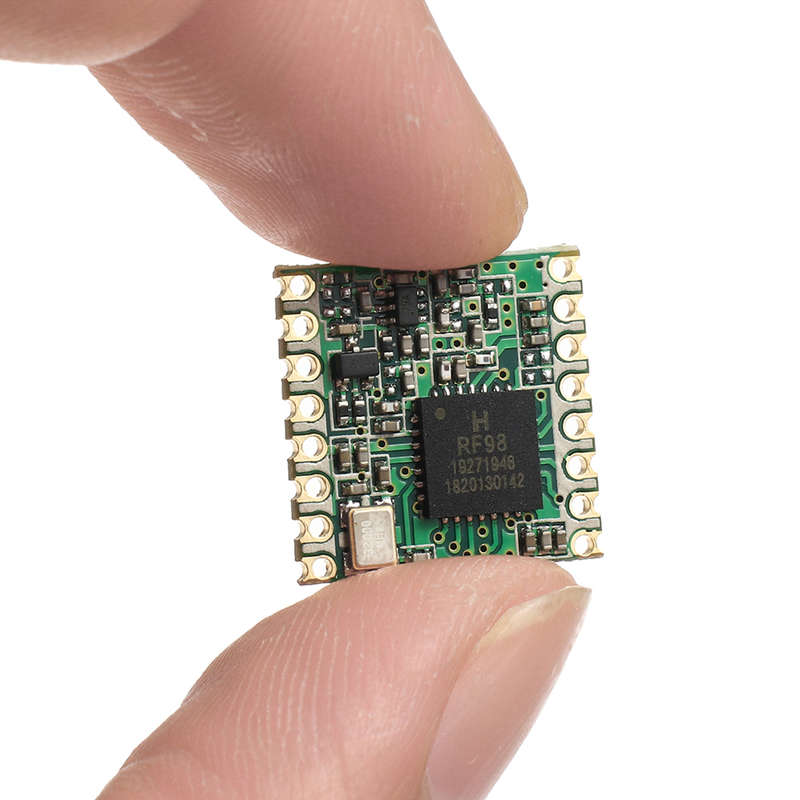

a LoRa TM remote communication module a Link budget up to 168dB a +20 dBm -100 mW stable RF transmit power and working voltage a +14dBm high efficiency PA a Programmable rate up to 300kbps a High sensitivity: minimum -148 dBm a Bulletproof front end: IIP3=-12.5dBm a Strong anti-interference a Low receiving current: 10.3mA, when the register is saved: 200nA a Highly integrated synthesizer with a resolution of 61 Hz a FSK, GFSK, MSK. GMSK, LoRa TM and OOK modulation modes a Built-in bit synchronization device, can realize clock recovey a Leading detection a 127dB dynamic range RSSI a Automatic RF detection and CAD, ultra-fastAFC a Data packet BUFFER up to 256BYTE, with CRC a Internal temperature sensor and low battery detection indication a Module size: 16*16mm
Main application:
aRemote wireless meter reading aHome and building automation aWireless alarm and security system aIndustrial monitoring a Remote irrigation system
Package includes:

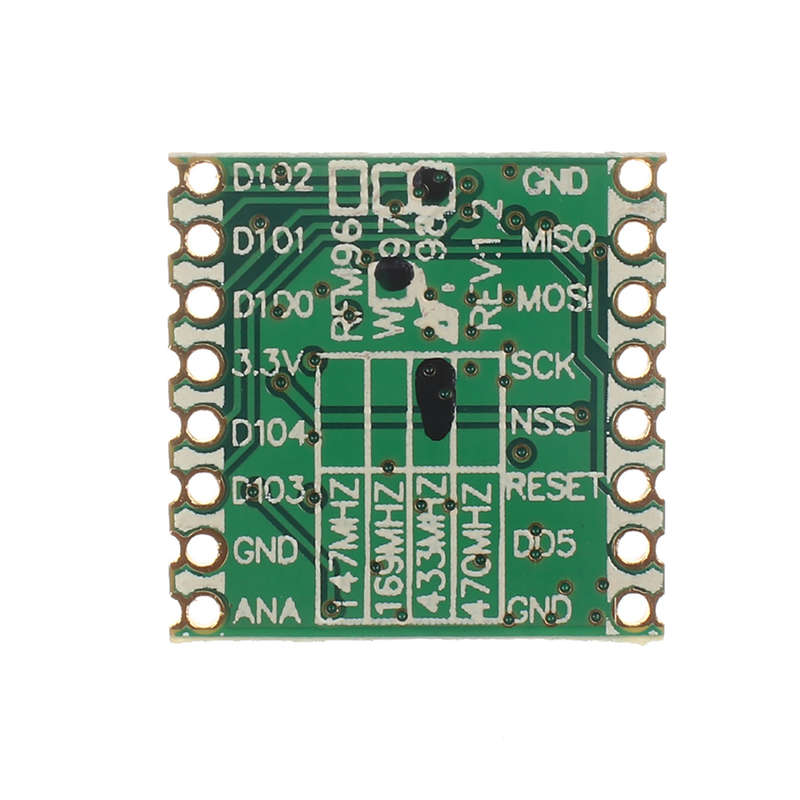

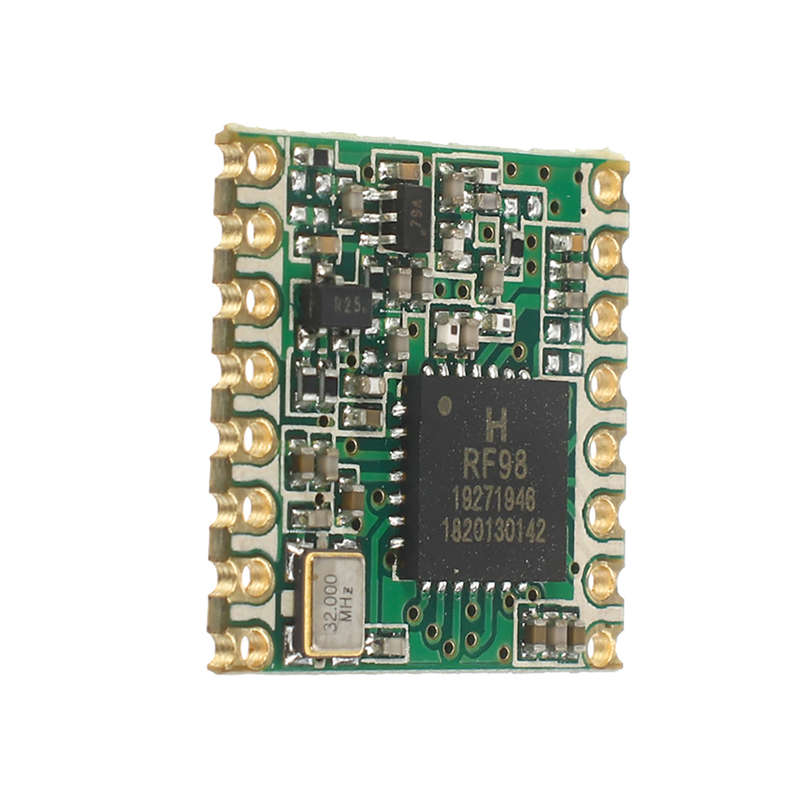

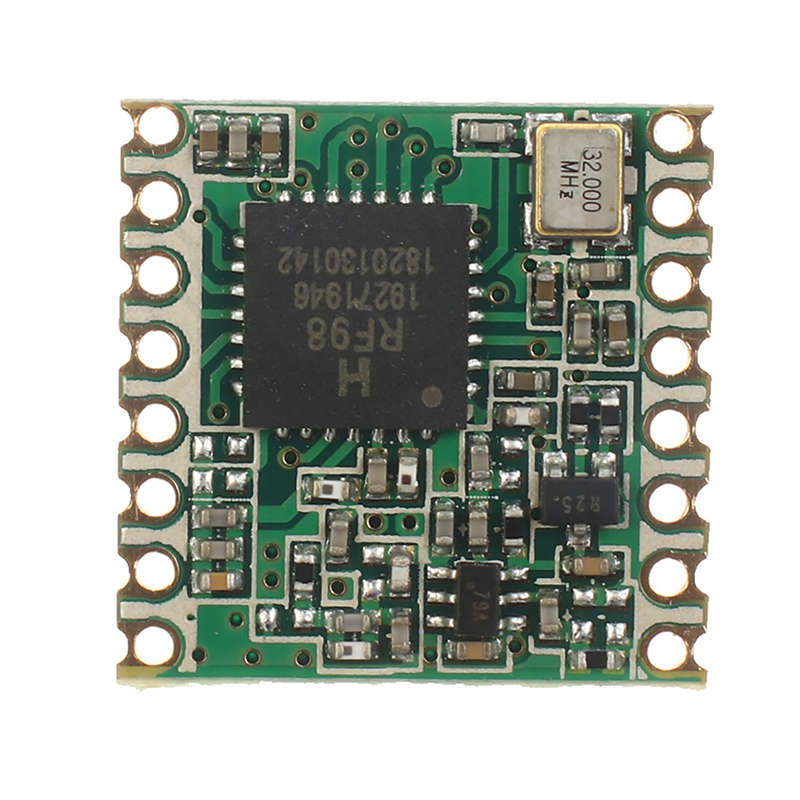

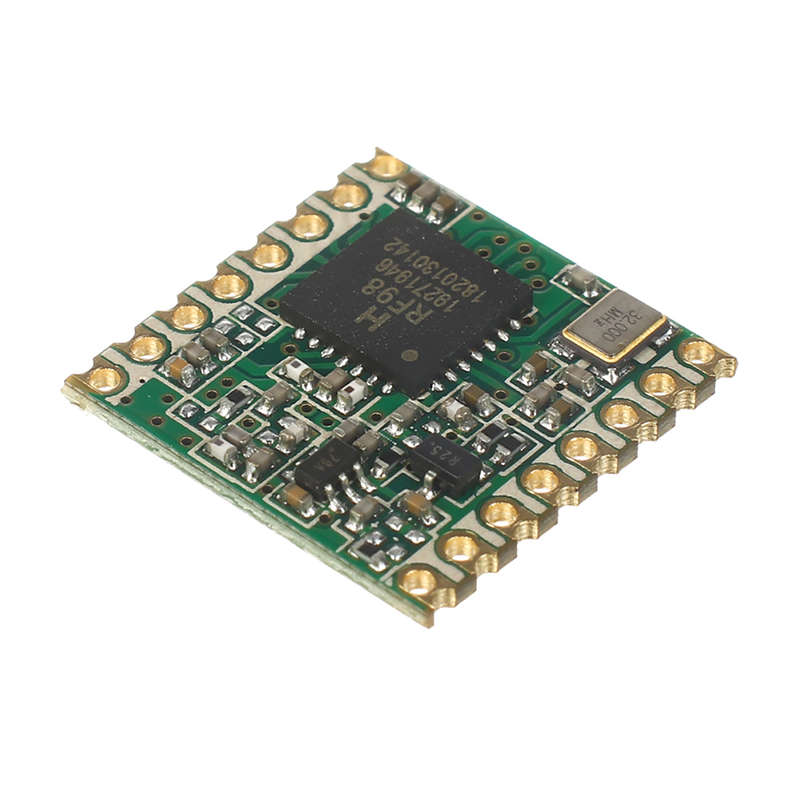

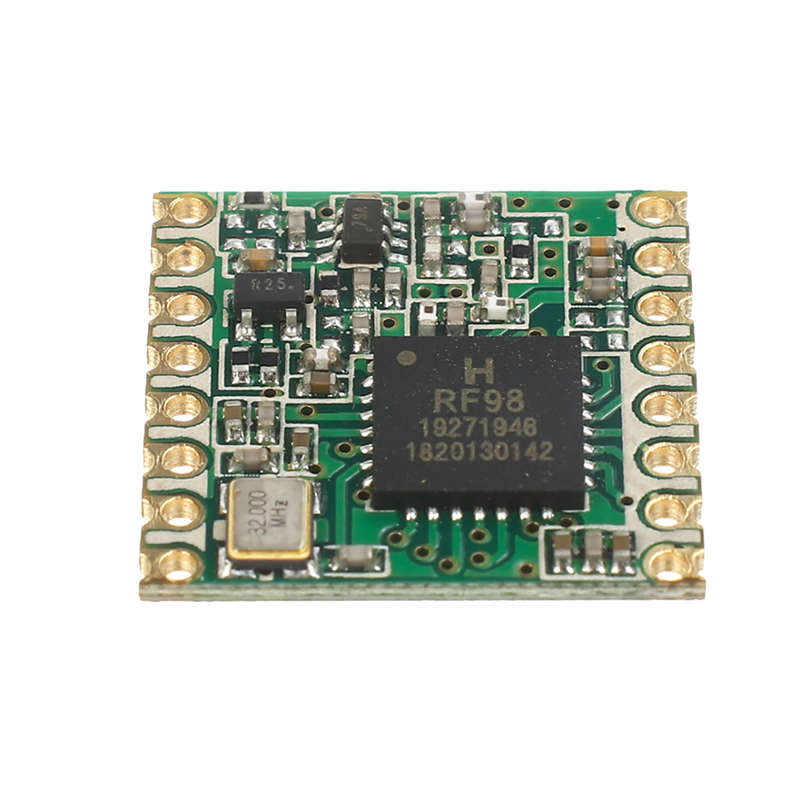

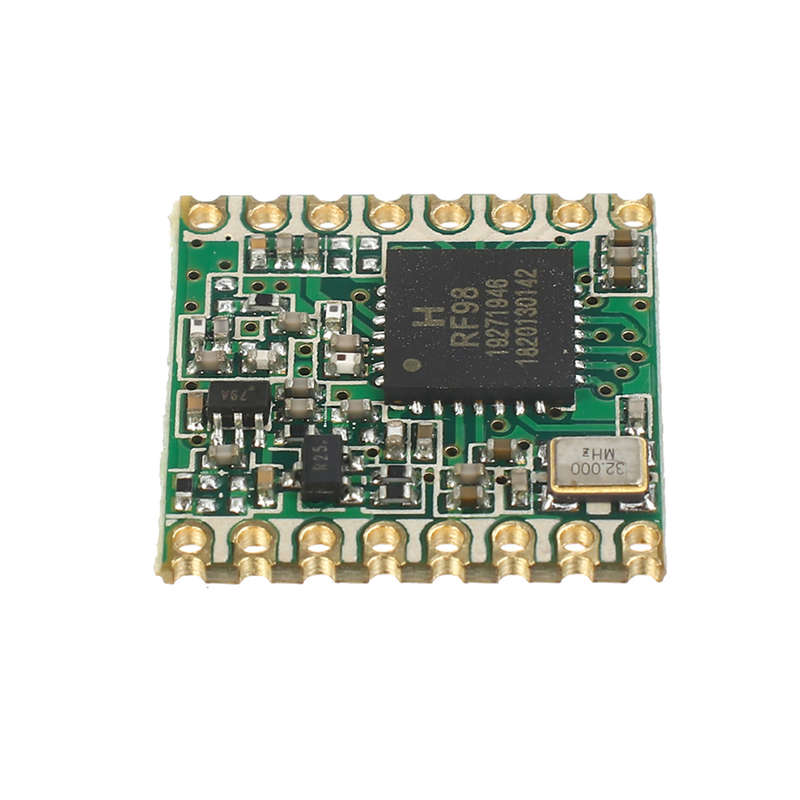

5 xWireless Transceiver Module Board
