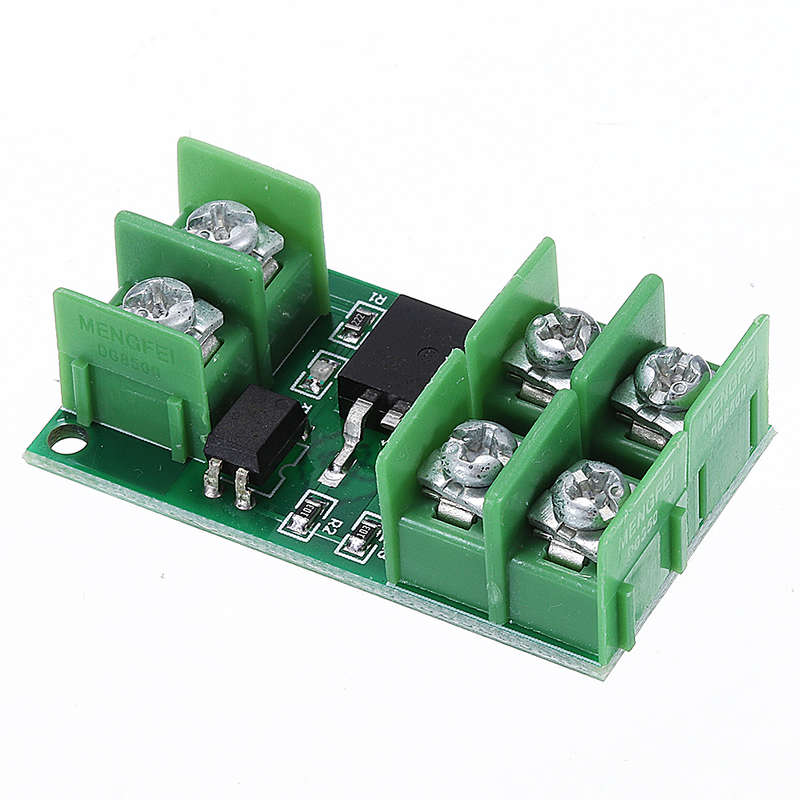

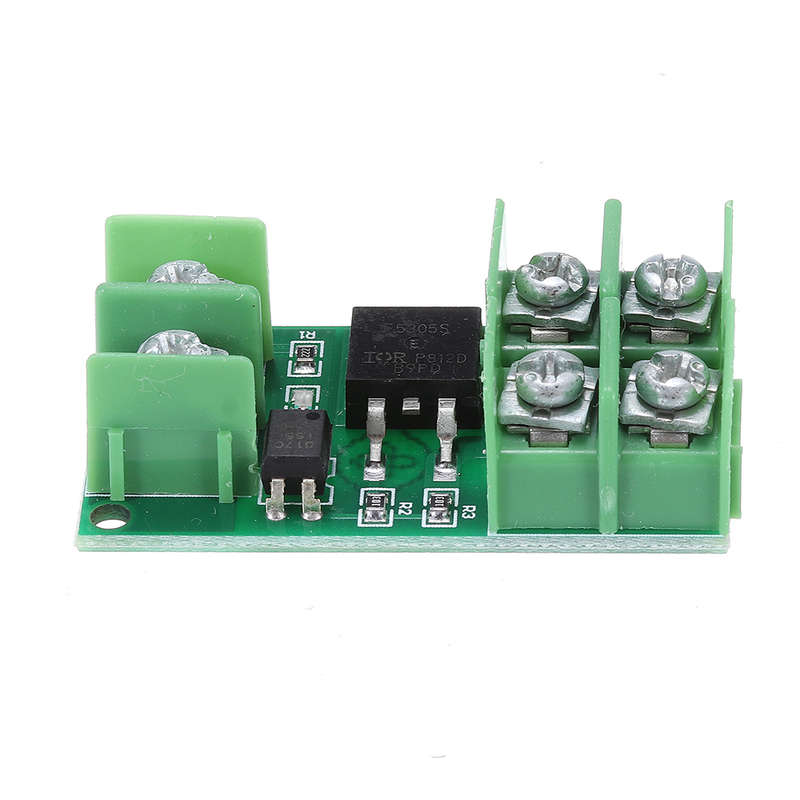

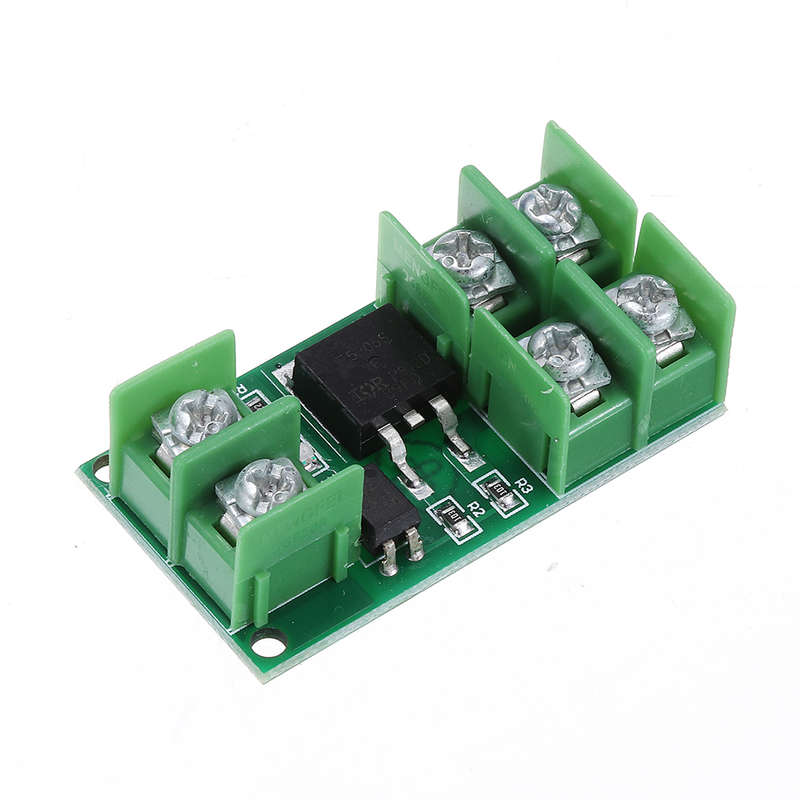

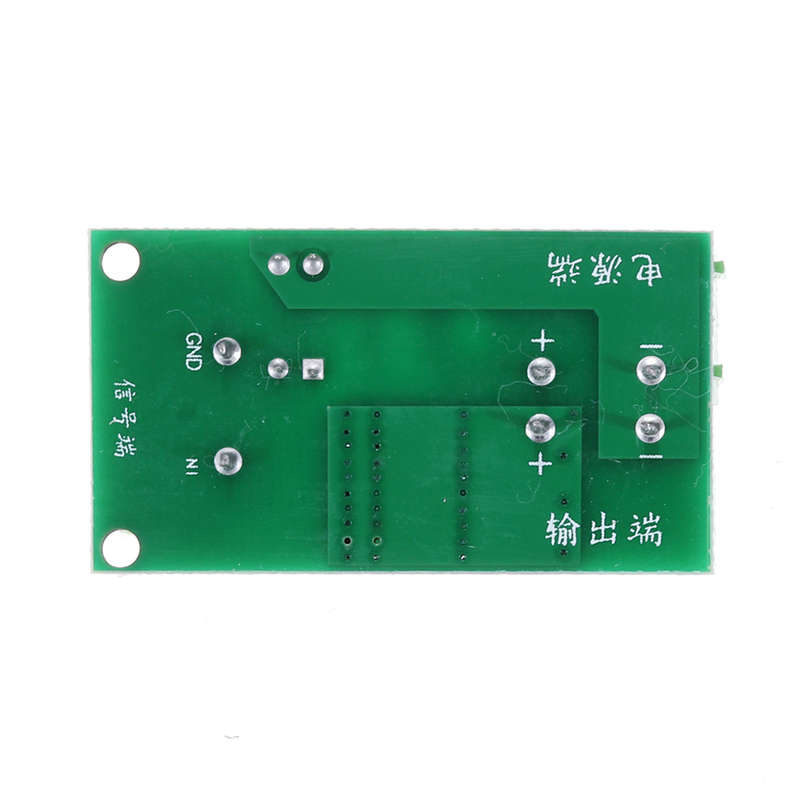

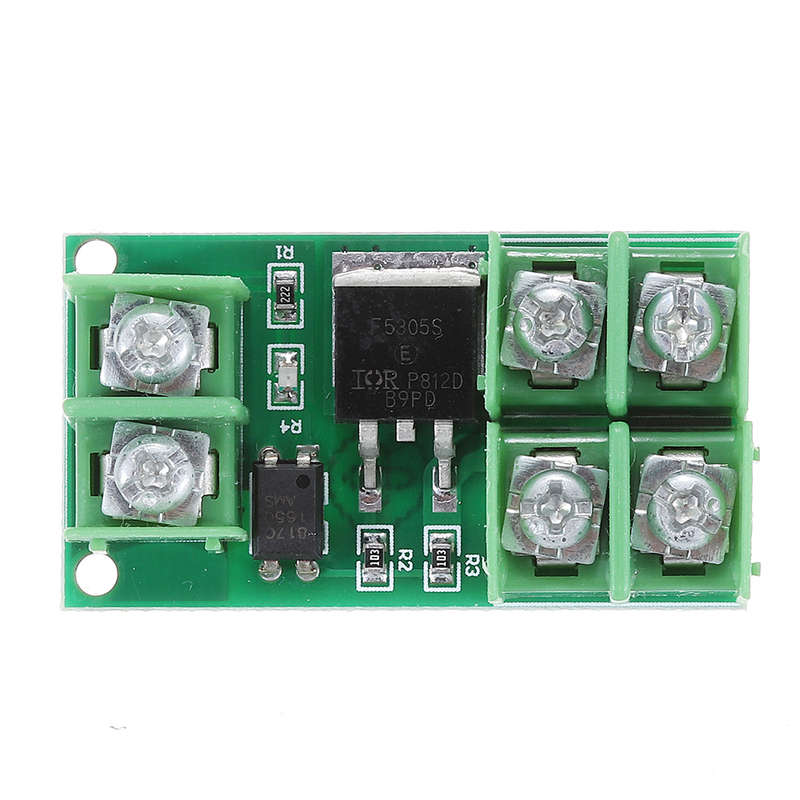

5pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor L

20 available / new

R466.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641113337

Features: - FET module, input and output totally isolated from each other. - Input signal voltage: 3V~20V; Input current: about 5mA. - Output voltage: 5V~36V(Current: within 5A, Max. current is 20A. -When current is over 5A, please add heat sink). - Signal trigger: digital high/low signal, can be connected to IO of micro-controller, PLC interface, DC power supply, etc. - The output can control high-power devices: motor, light bulb, LED light & strips, DC motor, small pumps, solenoid valve. - Based on FET model New original F5305S. We can input PWM signal to control motor speed, lightness of bulb, etc. Specifications: Input Signal: Voltage: 3V~20V; Current: 5mA Output: Voltage: 5V~36V; Current: within 5A Item Size: 46 * 25 * 18mm / 1.8 * 0.98 * 0.7in Package Included: 5 x Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor
