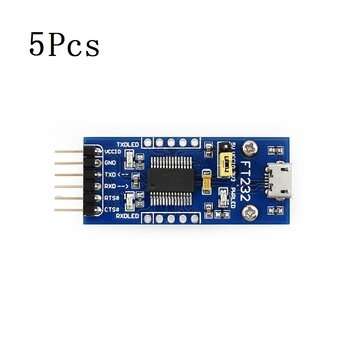

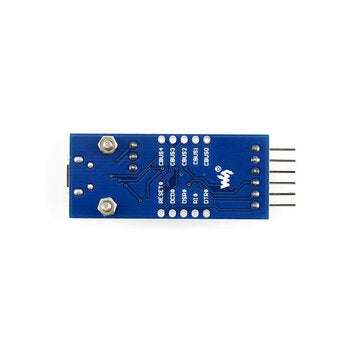

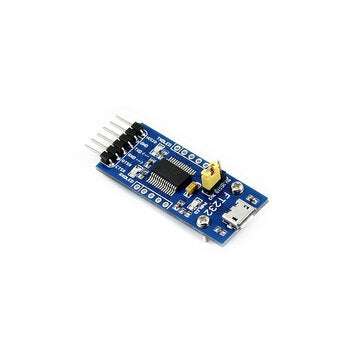

5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash 5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash 5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash 5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash
5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash 5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash 5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash 5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash

5Pcs Waveshare FT232 Module USB to Serial USB to TTL FT232RL Communication Module Micro Port Flash

20 available / new
R920.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643369350
Features:
Use original FT232RL Support Linux, Android, WinCE, Windows 7/8/8.1/10... Support 3 power supply modes: 5V external power supply; 3.3V external power supply; external power supply (requires 3.3V-5V) With 3 LEDs: TXD LED, RXD LED, POWER LED TXD, RXD, RTS#, CTS#: lead out with curved pin Other functions PIN: reserved pad (distribution pin, row seat, can be plugged into or plugged into the user system; PIN spacing supports insertion into the universal board) Instructions for use: (Take access to MCU as an example)
VCCIO: output 3.3V or 5V (module is powered by USB, jumper cap must be jumped to 3.3V or 5V) GND: Connect to GND TXD: Connect to MCU.RX (Signal flow direction: MCU.RX << FT232 << PC.TX) RXD: Connect to MCU.TX (Signal flow direction: MCU.TX >> FT232 >> PC.RX) RTS: Connect to MCU.CTS (Signal flow direction: MCU.CTS << FT232 << PC.RTS) CTS: Connect to MCU.RTS (Signal flow direction: MCU.RTS >> FT232 >> PC.CTS) Note: This module is USB to TTL level, do not directly connect to RS232 level, otherwise the module will be burned.
Package includes:
5 x FT232 USB UART Board(MicroPort) 10 x 5PIN header + 5PIN header 5 x Dupont cable Bulk head 6PIN to custom
