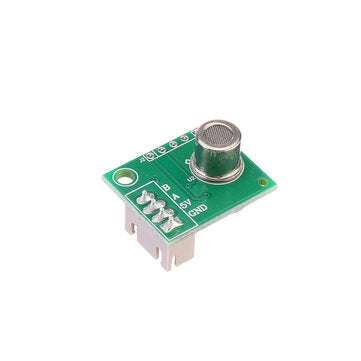

5pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol A

Principle Introduction:
ZP07 air-quality module adopts flat surface semiconductor gas sensor. The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke, essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.
Applications :
Air cleaner, fresh-air system, intelligent integrated ceiling, air quality detector, ventilator, air-condition.
Technical Parameters :
Model No.: ZP07 Detection Gas: formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, smoke, essence &etc Physical Interface: XH2.54-4P terminal sockets Output Data: 0-3 grade pollution signal Working Voltage: 5.0±0.2V DC (No voltage reverse connect protection) Output: TTL level (200ohm protected resistance inside) Working Current: a60mA Warm-up Time: a3 min Response Time: a20s Recovery Time: a60s Size: 242016mm(LWH)
Package Inlcuded:
5 x ZP07-MP503 Air-Quality Detection Module
