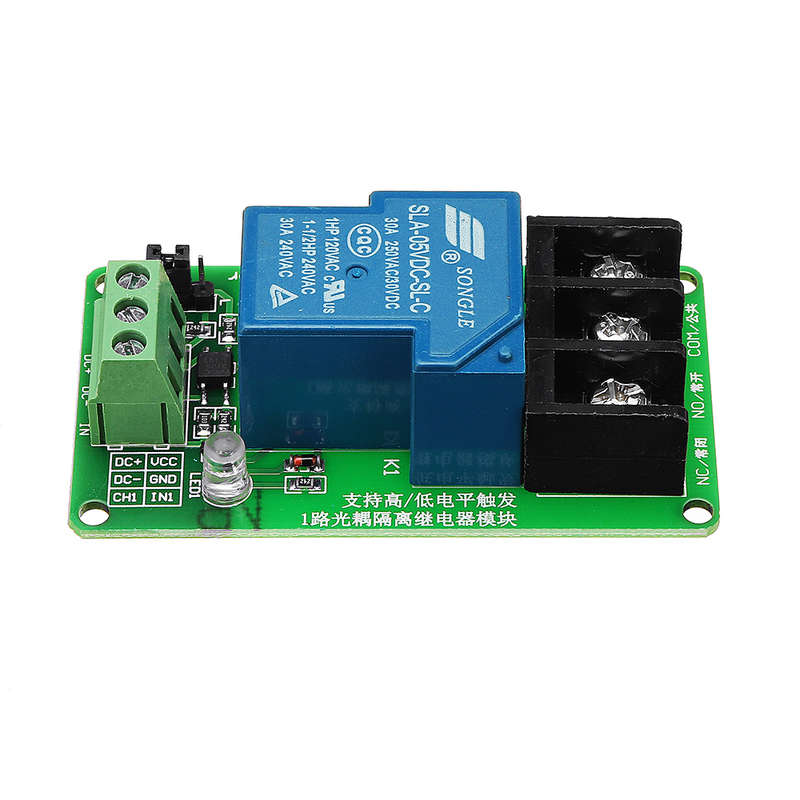

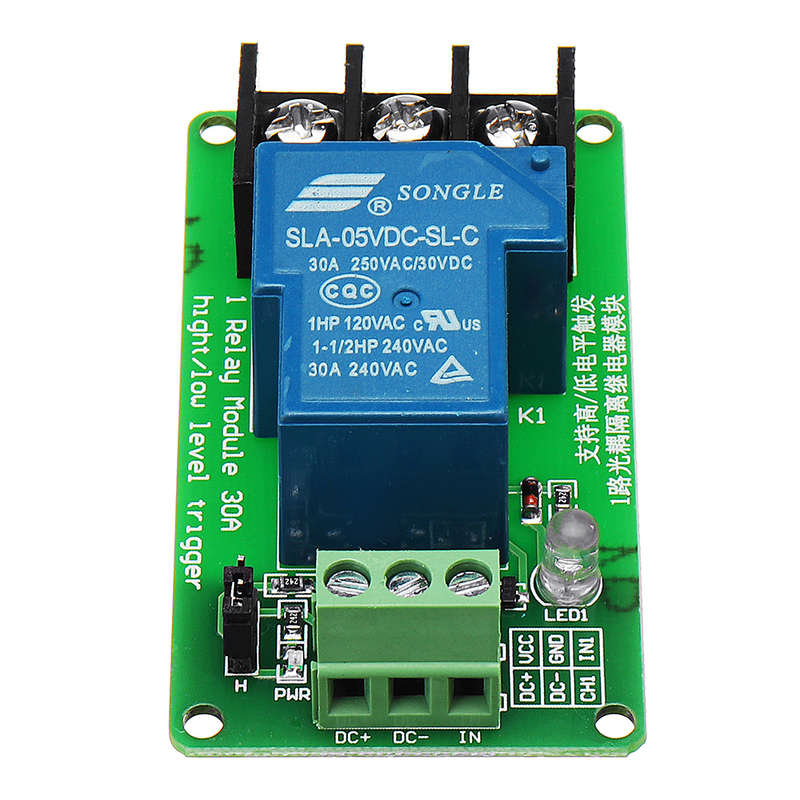

5V 1 Channel 30A Optocoupler Isolation Support High and Low Level Trigger Switch Relay Module

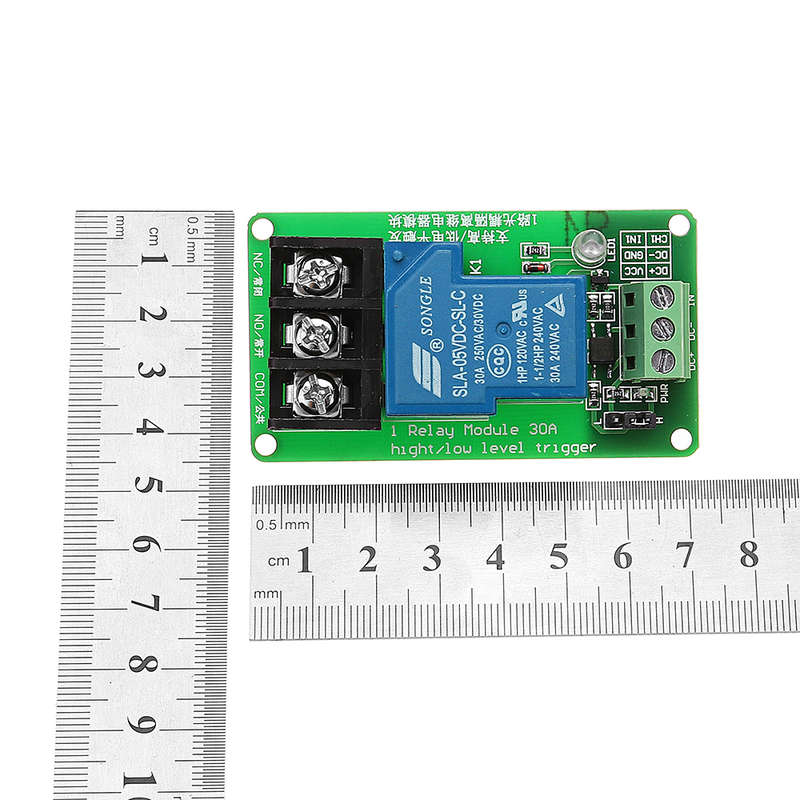

Feature: 1. The module adopts genuine high quality 30A relay, the maximum load of normally open interface: AC 250V/30A, DC 30V/30A. 2. Using chip optocoupler isolation, strong driving ability, stable performance; trigger current 5mA. 3. Module operating voltage 5V. 4. The module can be triggered by a jumper to set a high or low level. 5. The interface design is user-friendly, and all interfaces can be directly connected through the terminal block, which is very convenient. 6. Module size: 72 x 40 x 24mm (Length * Width * Height), with module holder: 86 x 43 x 45mm 7. Product net weight: 46g 8. 4 fixing bolt holes, hole 3.1mm, spacing 44.5 x 27.5mm

Relay	Quiescent Current	Maximum current	Trigger current
5V	5mA	190mA	2-4mA

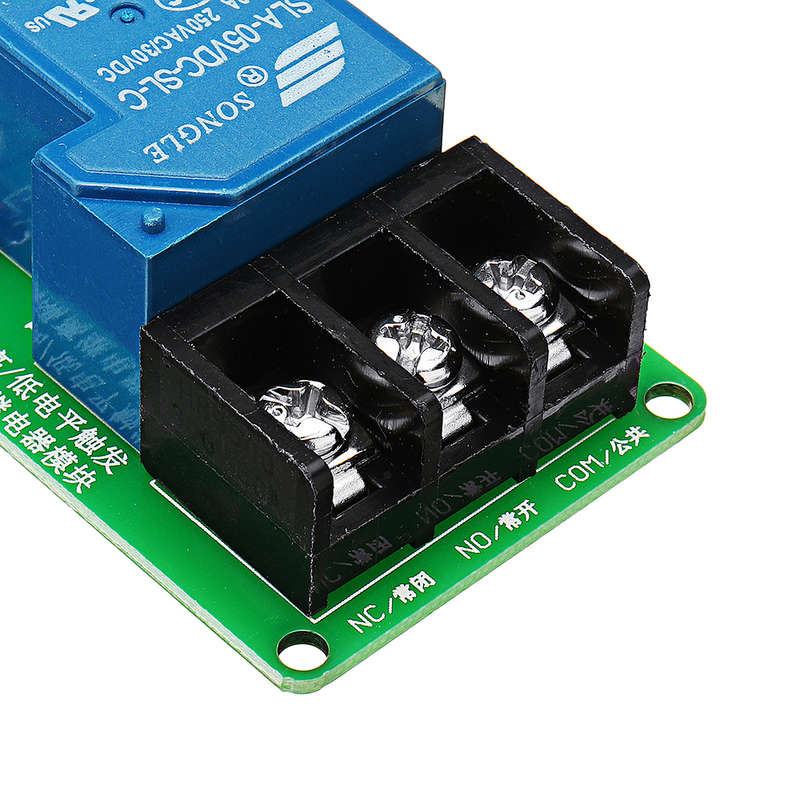

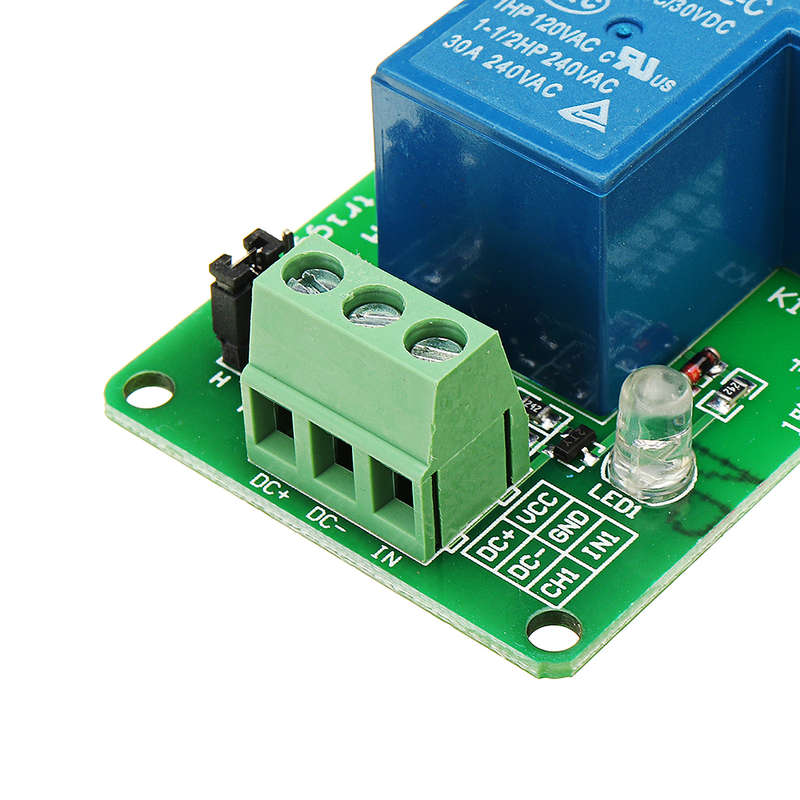

Module interface description: 1. DC+: Module DC power supply positive (trigger terminal voltage positive) 2. DC-: Module DC power supply negative (trigger terminal voltage negative) 3. IN: Signal trigger terminal (default trigger voltage is the same as power supply) 4. High/low level trigger mode selection, when the jumper is connected with the L terminal, the IN terminal is low level trigger, and when connected to the H terminal, it is triggered high level. 5. Normally closed terminal (NC): relay normally closed terminal 6. Common (COM): Relay Common 7. Normally open (NO): The relay is normally open Package includes: 1 x Realy Module
