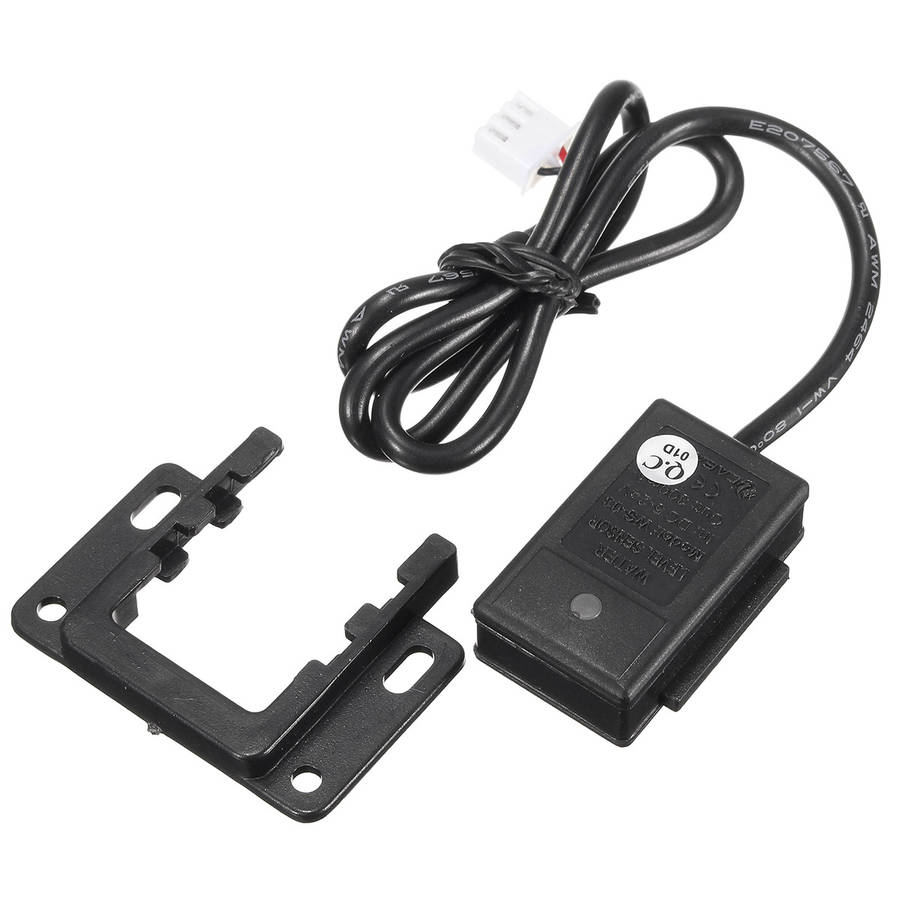

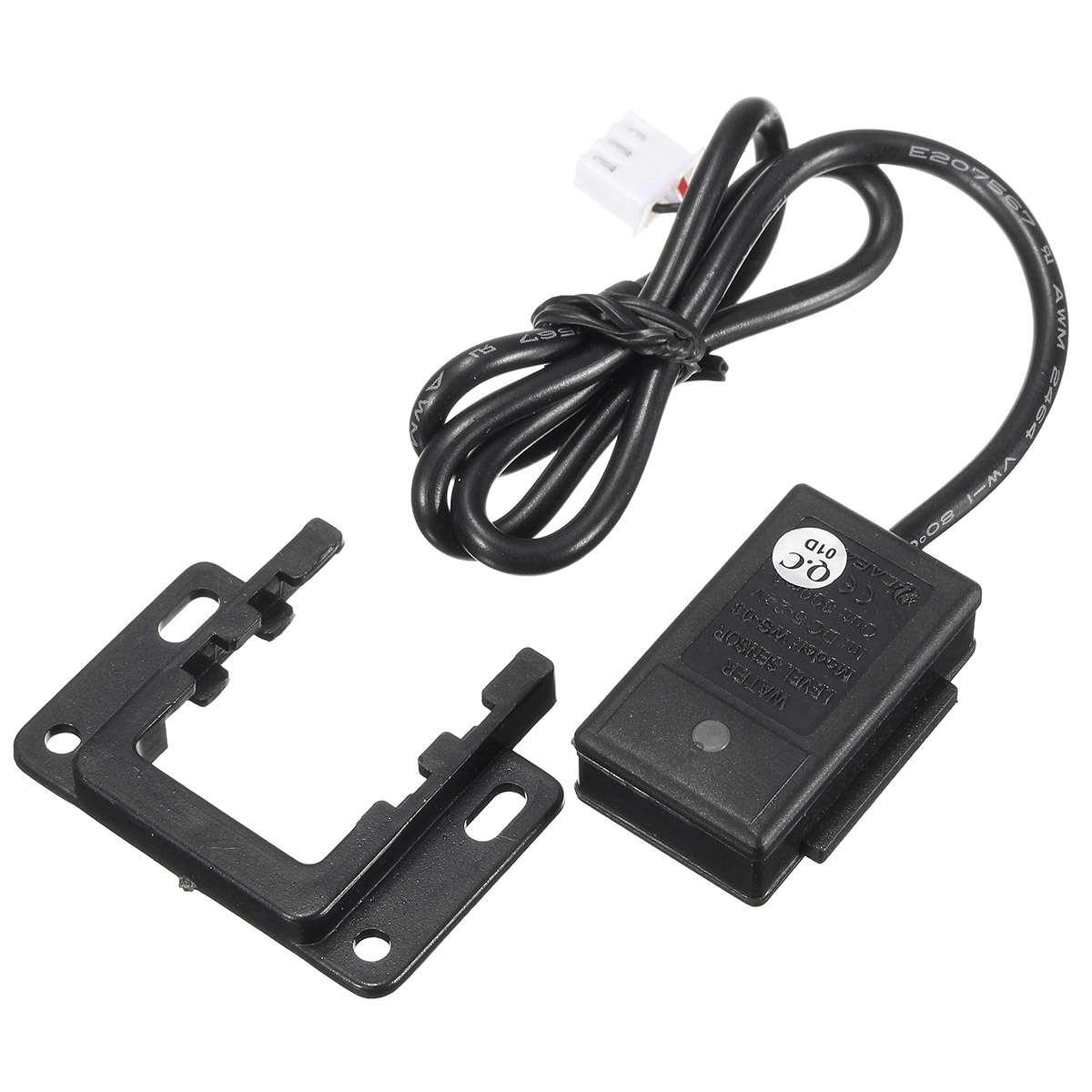

5V 12-24V Non-contact Tank Liquid Water Level Detect Sensor Switch Container
5 were available / new
Indicative market price:
R252.92
R140.51
44% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
There are various locker and counter collection points across South Africa. View locations
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
This Liquid Water Level Sensor can be used to detect the liquid levle in tank/container.
1. Non-contact, works without direct contact with the liquid inside the tank. 2. Tiny in size, easy to install.

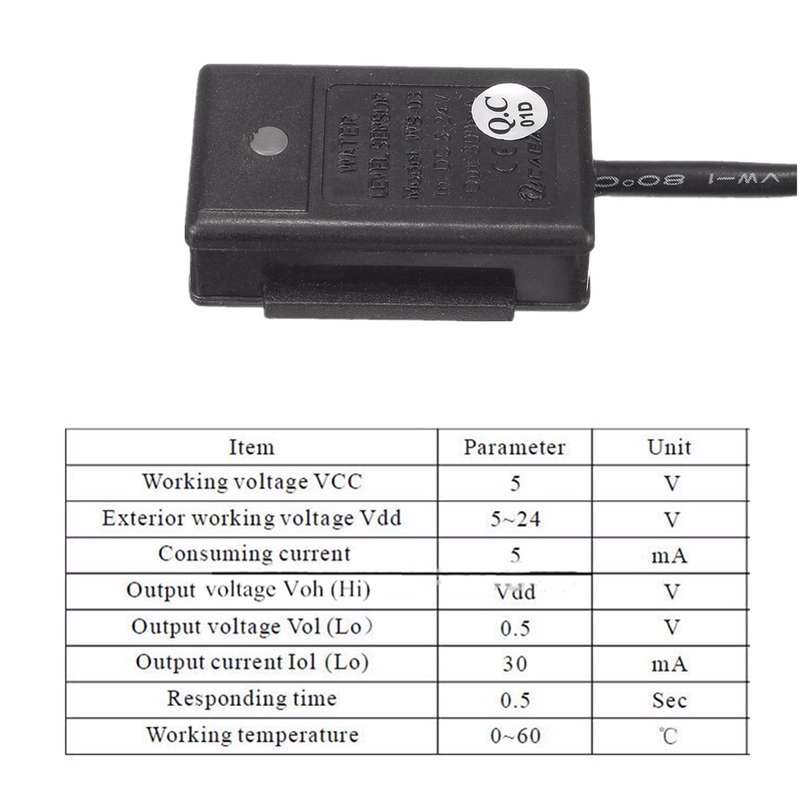

Paremeters:

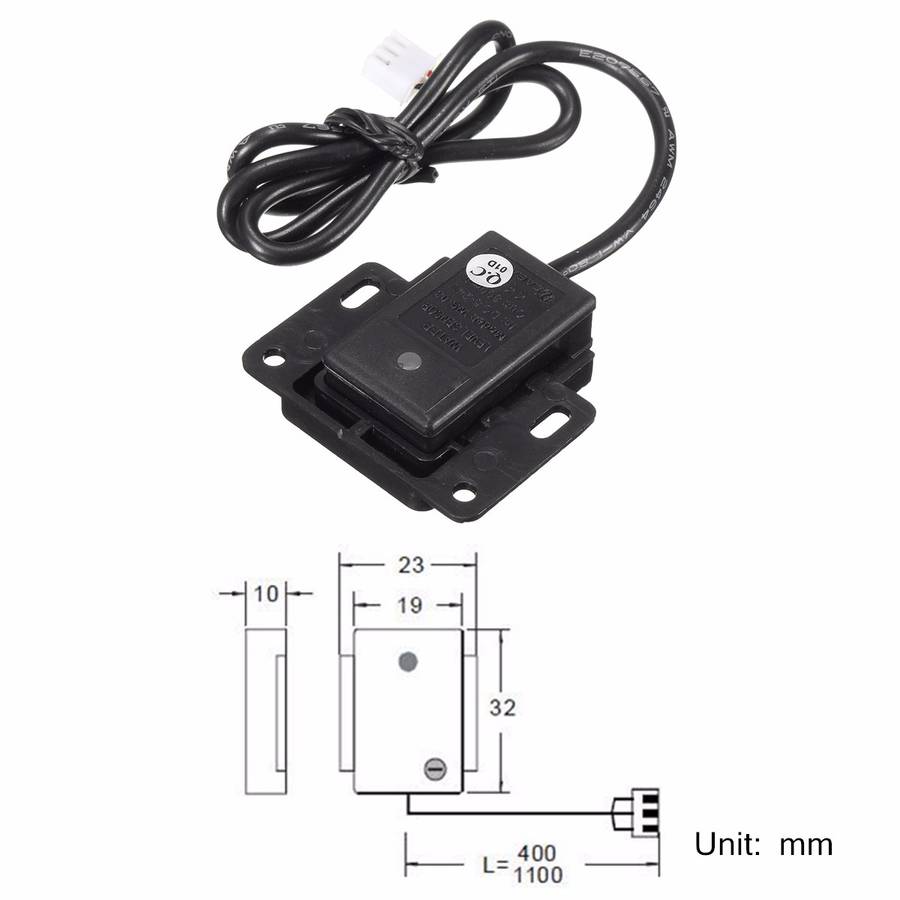

1.Size: 30*19*10mm
2.Working voltage: DC5V or 12-24V
3.Maximum output: 30mA
4.Responce time: 0.5 Sec
5.Working environment: 0 ¿¿¿ to 60 ¿¿¿.
6.Sense distance:10mm

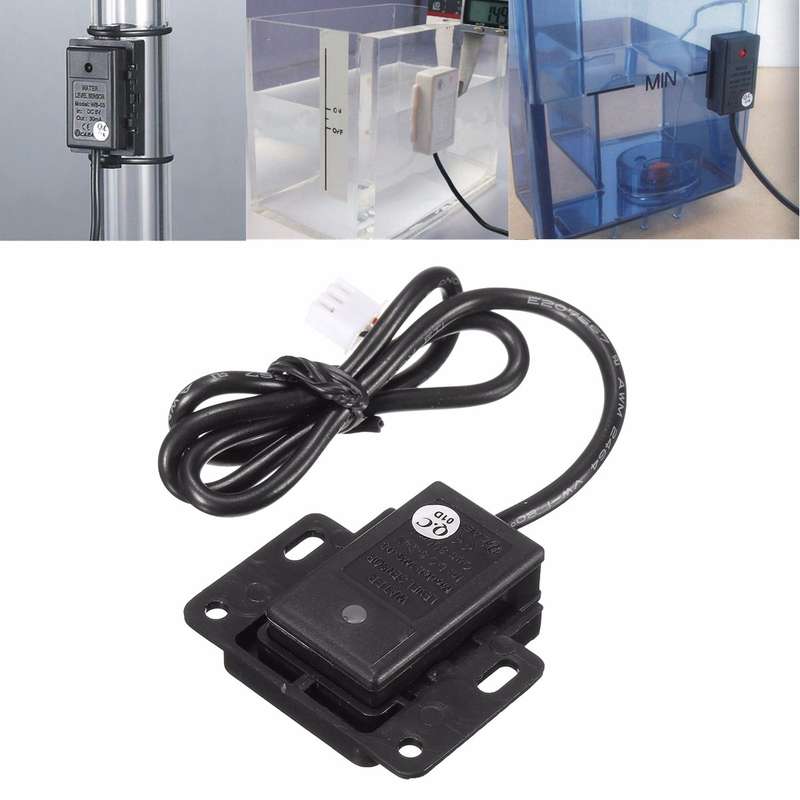

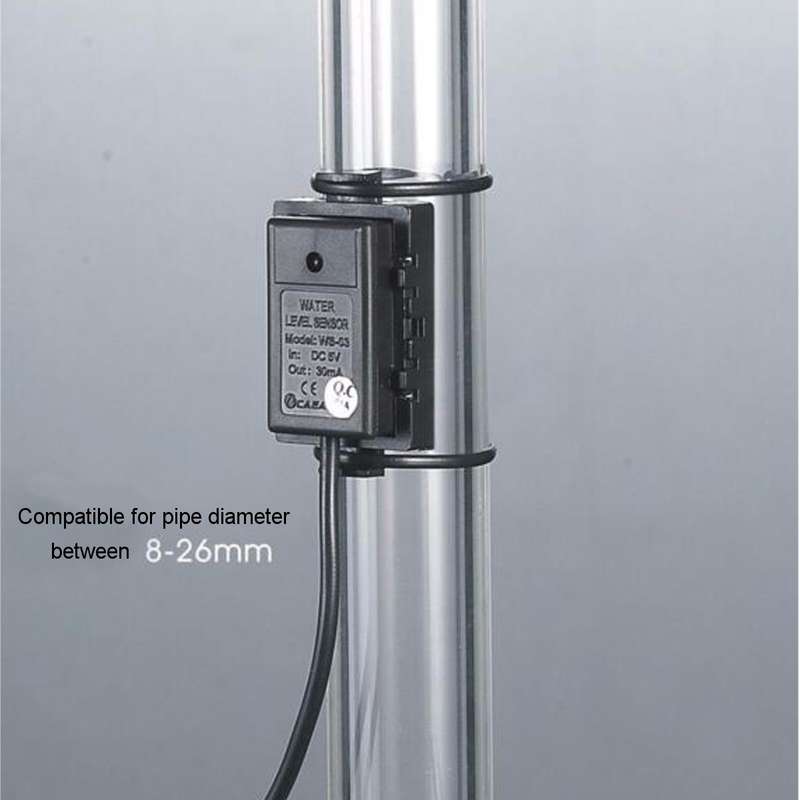

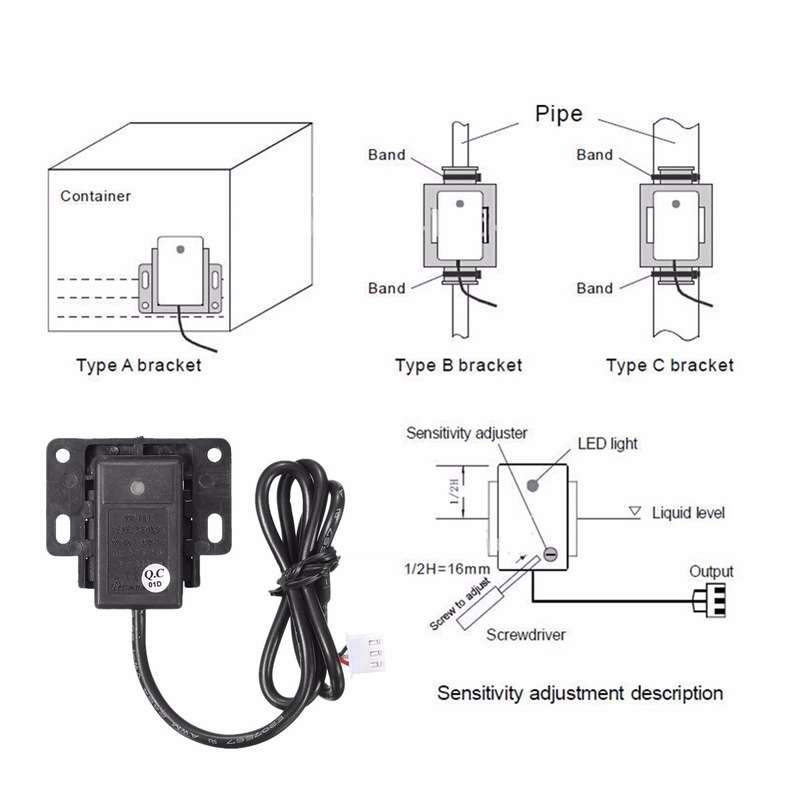

7. Voltage(V) Application WA-03A: 5 For tube/pipe WA-03B: 5 For flat tank/container WA-03C: 12-24 For tube/pipe WA-03D: 12-24 For flat tank/container
8. Application: Household appliances products, sanitary wares intelligent control products, drinking & cleaning water and water treatment equipments, medical treatment and foodstuff mechanism equipments, chemical mechanism equipments and so on.

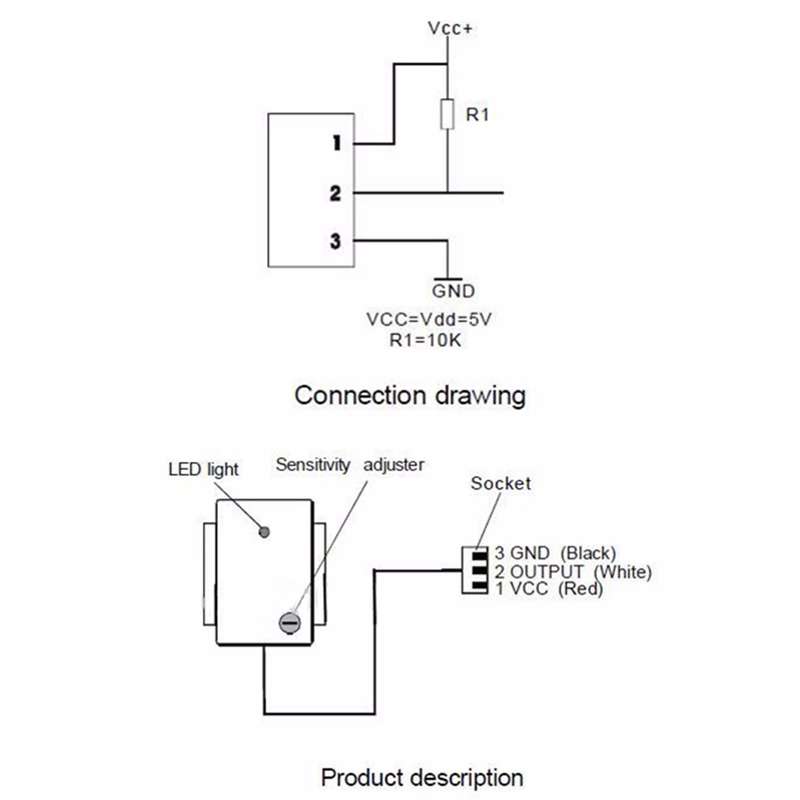

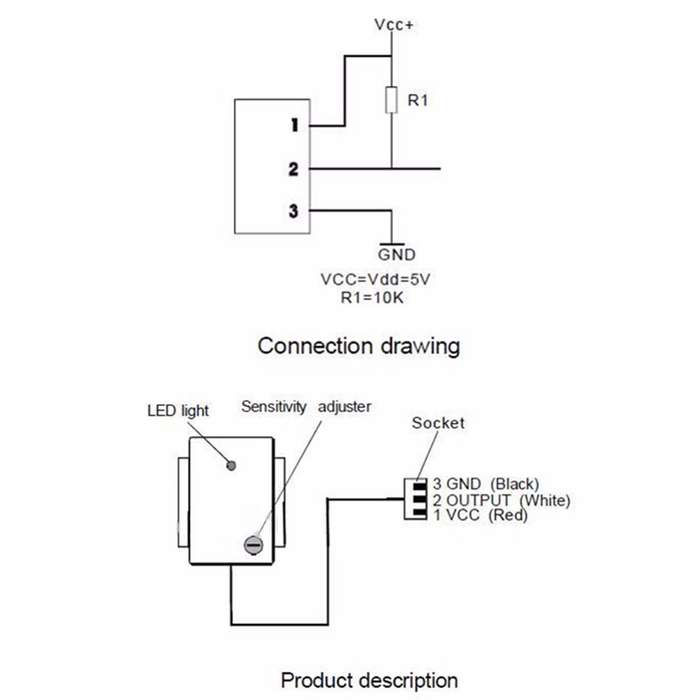

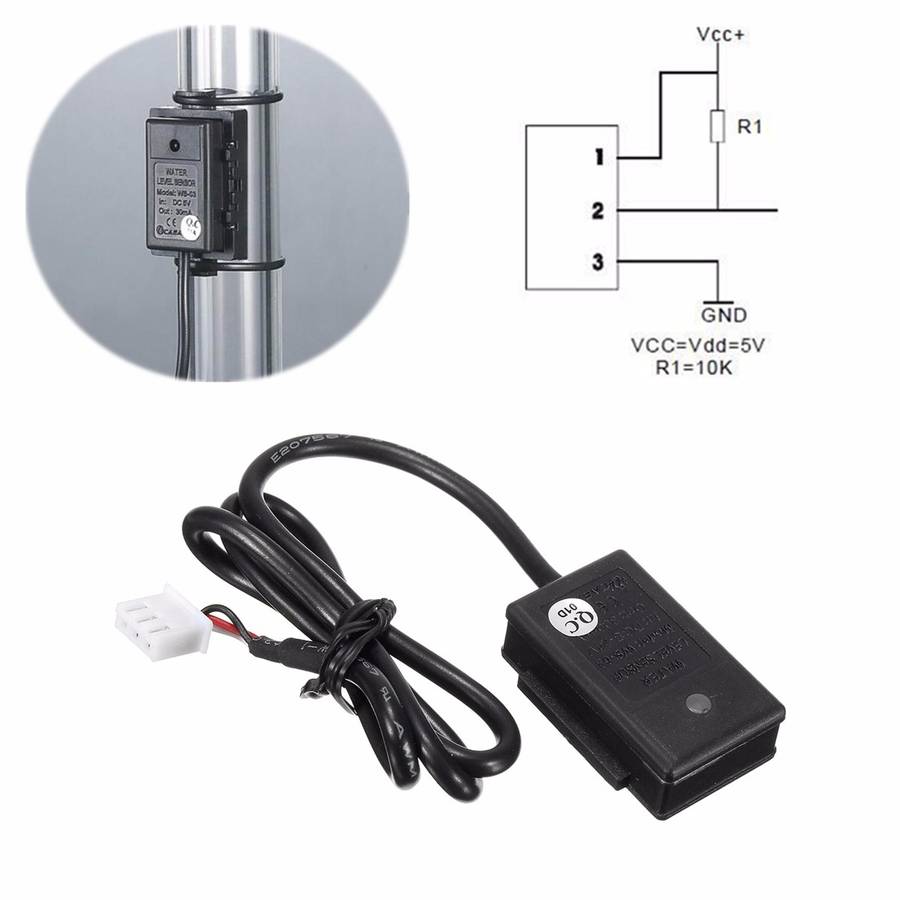

9. Connection and Diagram: Black: GND White: Output Red: VCC
Package included:

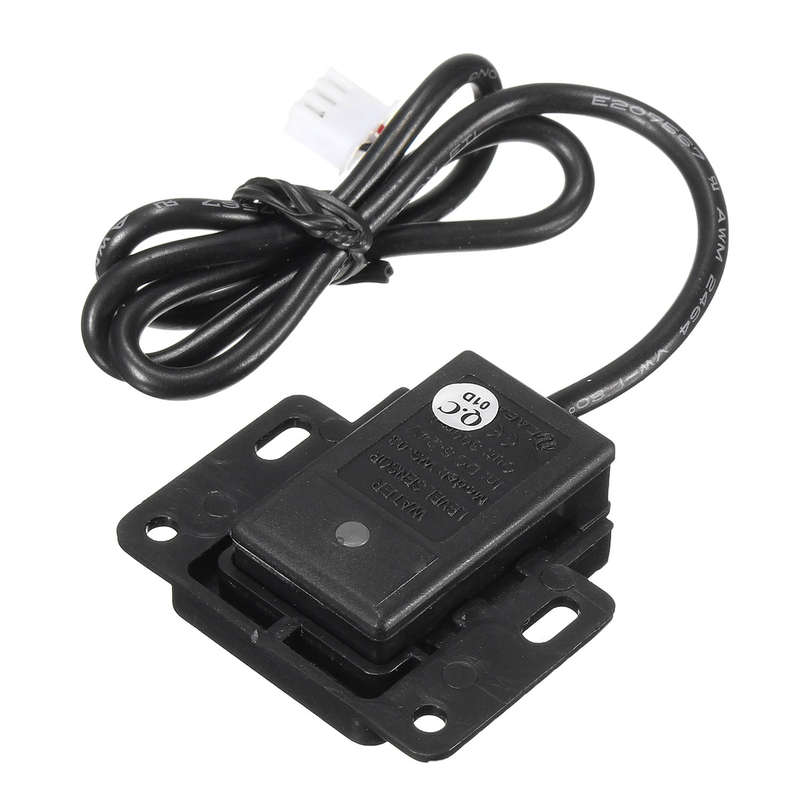

1 x Non-contact Tank Liquid Water Level Sensor Switch
