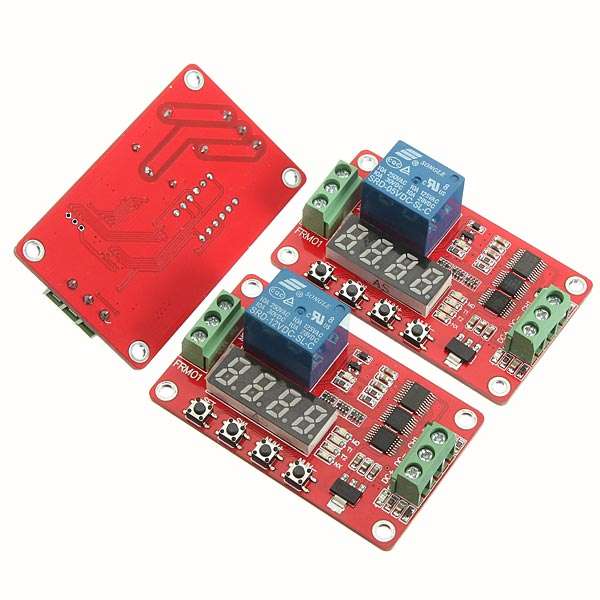

5V/12V/24V FRM01 Multifunctional Relay Module Loop Delay Timer Switch Self-Locking
Description:

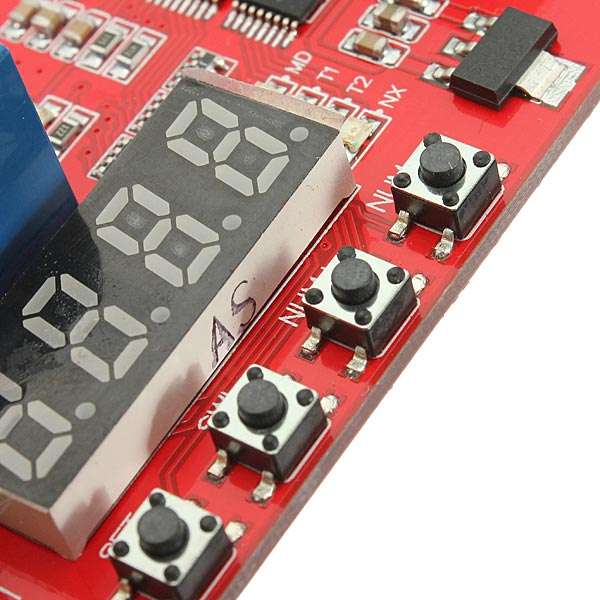

Users can display the buttons and select the following nine kinds of functions in one, you can set and save 9 kinds of function parameters, you can also view the current function parameters, time parameter sets the minimum one second adjustable accuracy of better than 0.1 seconds.
Feature:
Function 1: Timing Pick: After power relay delay time T1, T1 in 0 seconds adjustable between -270 hours, give CH1 connector is a high pulse signal(high duration is greater than or equal 20ms, hereinafter the same), repeat the above functions
Function 2: Timed disconnect: On power relay, time relay off delay time T1, T1 in 0 seconds adjustable between -270 hours, giving a high level pulse signal CH1 connector, repeat the above functions
Function 3: Loop Timing Mode 1: After power on, to not pull the relay, the delay time T1 after arrival relay; pull the relay off time T2 after arrival, and then repeat the above state, the delay time T1 and T2 in 0 seconds adjustable between -270 hours, giving a high level pulse signal CH1 connector, you can resume these functions
Function 4: Loop Timing Mode 2: After power, the relay immediately pull, delay time T1 after arrival relay off; off time T2 arrives relay, and then repeat the above state, the delay time T1 and T2 in 0 seconds - adjustable between 270 hours and give CH1 connector is a high pulse signal, these functions can be re-started
Function 5: Latching relay mode: CH1 connector to relay a high level pulse signal, the relay, to give a high level pulse signal relay disconnected
Function 6: Trigger relay mode: CH1 connector to a high signal relay, relay, high disappeared, relay disconnected
Function 7: Finite loop timing mode 1: Function 3, based on the number of cycles increased functionality, then T1 and T2 in 0 seconds -9999 seconds adjustable between 1-9999 times in between cycles adjustable
Function 8: Finite loop timing mode 2: In function 4, based on the number of cycles increased functionality, then T1 and T2 in 0 seconds -9999 seconds adjustable between 1-9999 times in between cycles adjustable
Function 9: Customized Mode: Reserved

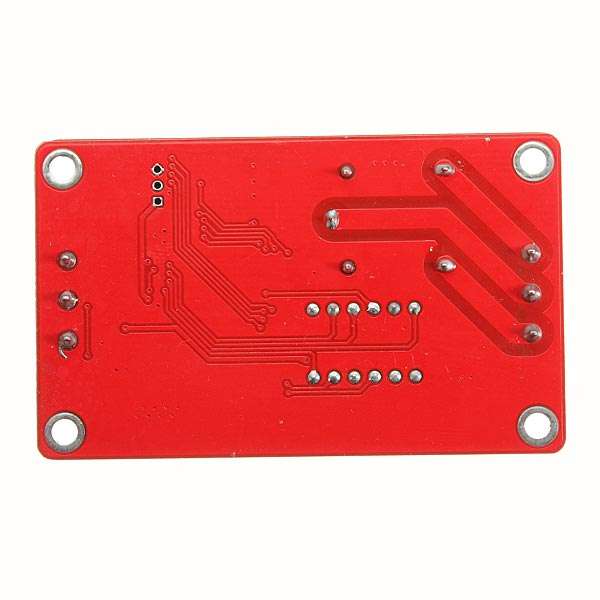

Two module interface:

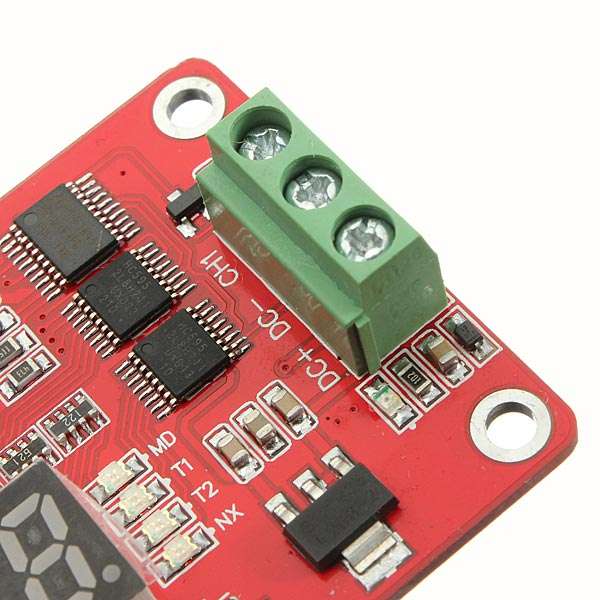

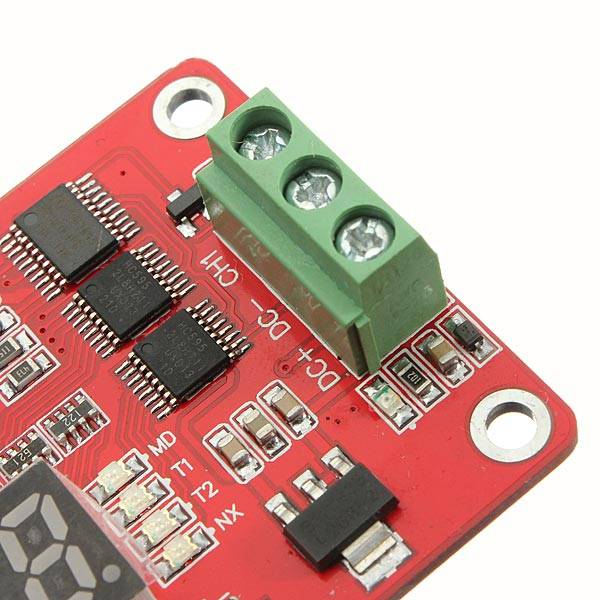

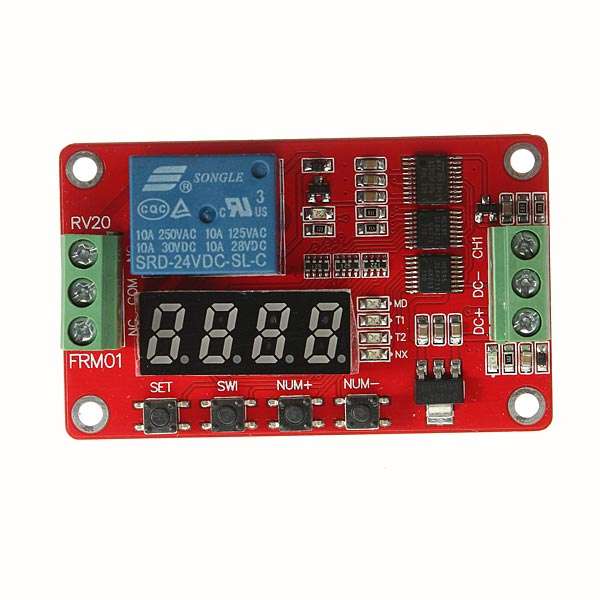

Module control side: there are 3-wire interface, all interfaces are terminal, user-friendly
DC+: DC power supply positive(with 5V, 12V and 24V modules to choose from)
DC-: DC power cathode
CH1: Hold Input Detection Interface

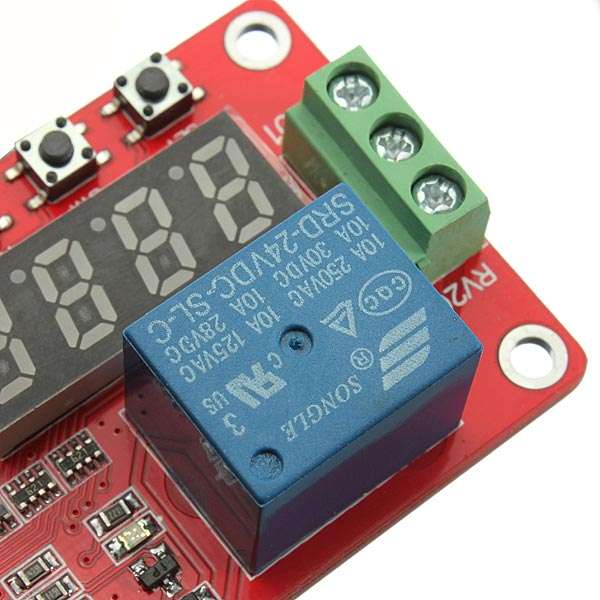

Relay outputs: A 3-wire interface, all interfaces are terminals
NO1: normally open relay interface, the relay becomes vacant before, pull shorting after the COM1
COM1: Relay Common Interface
NC1: normally closed relay interface relay shorted before and COM1, pull vacant post

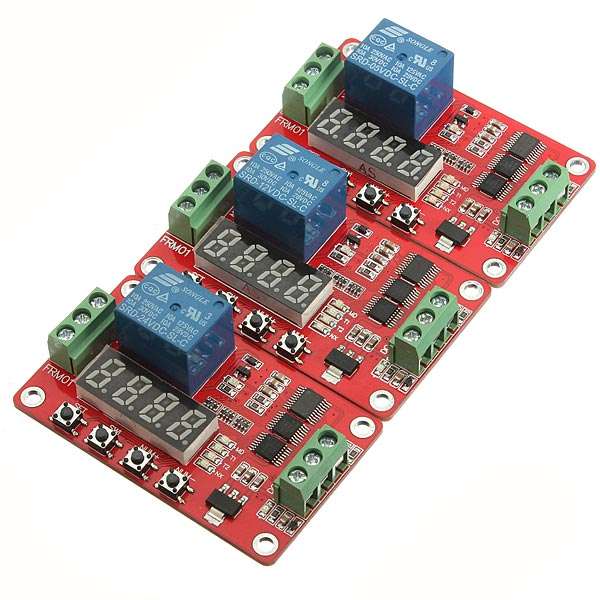

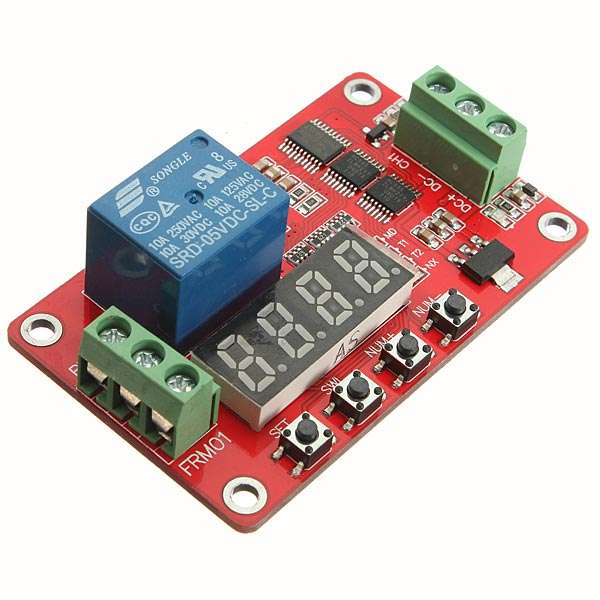

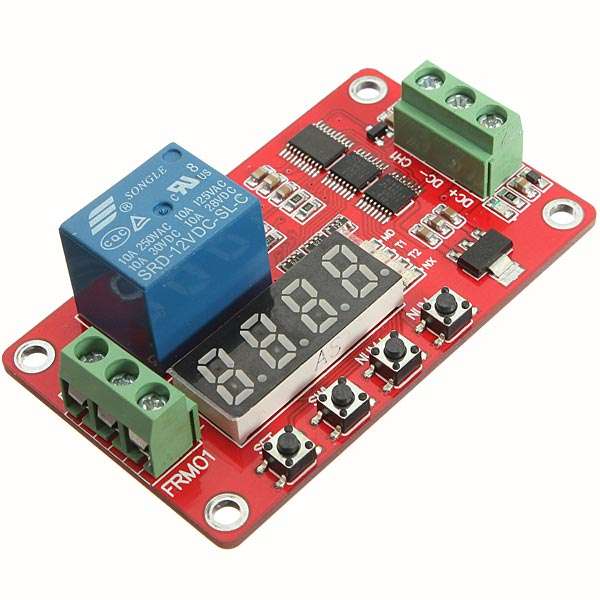

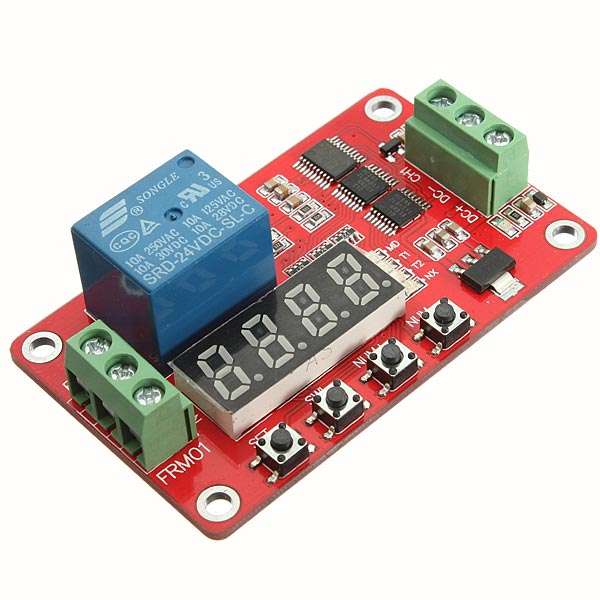

Module: 5V / 12V / 24V (please choose one you need)
Package included:
1 x Multifunctional relay module (5V / 12V / 24V please choose one you need)
