5V 12V 3-way Relay Module with Optocoupler Isolation High Voltage Relay Compatible with 3.3V and 5V
New
20 were available
R311.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 12 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
Replacement Guarantee:
7 Days: We stand by this guarantee
Get it now, pay later
Product details
Condition
New
Location
International
Bob Shop ID
641113481

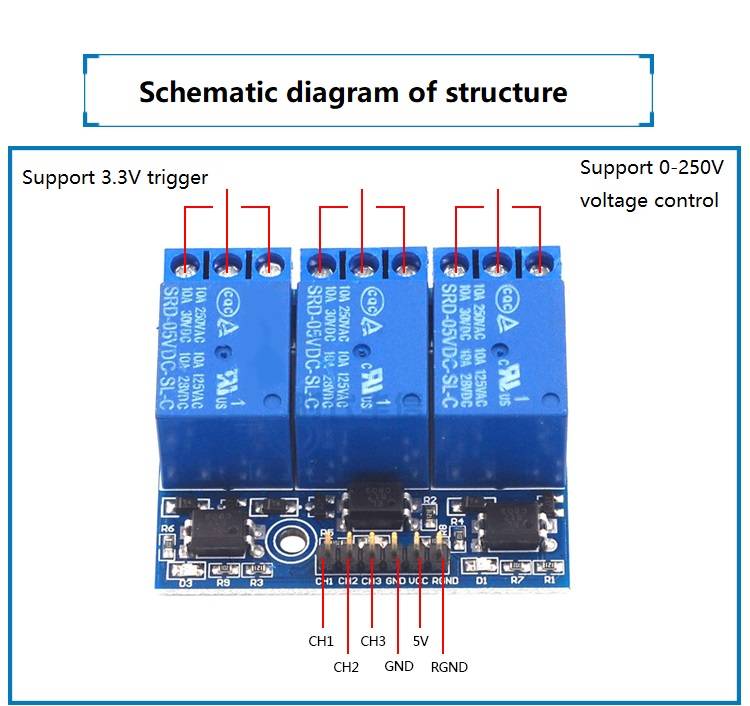

Description: The module uses genuine quality relay, normally open interfaces. Using SMD optocoupler isolation, driving ability, stable performance The module can be high or low by a jumper setting trigger. Fault-tolerant design, even if the control line is broken, the relay will not operate. The power indicator (green), the relay status indicator (red). The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient. Specification: Maximum load: AC 250V/10A, DC 30V/10A Trigger current: 5mA Working voltage: 5V Four mounting bolts holes, diameter 3.1mm DC+: positive power supply (VCC) DC-: negative power supply (GND) IN: can be high or low level control relay NO: normally open relay interface COM: Common Interface Relays NC: normally closed relay interface It is low level trigger when jumper connect to LOW pin It is high level trigger when jumper connect to HIGH pin Package included: 1 x Relay Module
