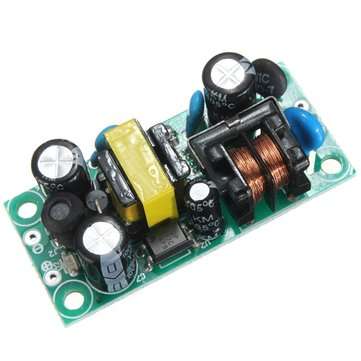

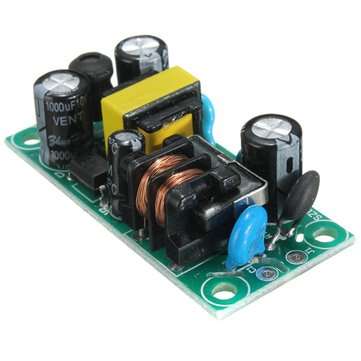

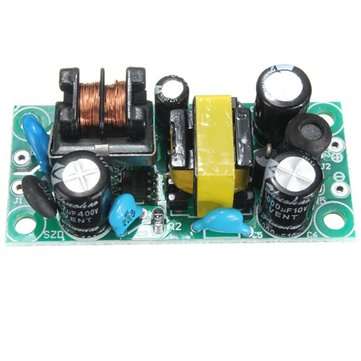

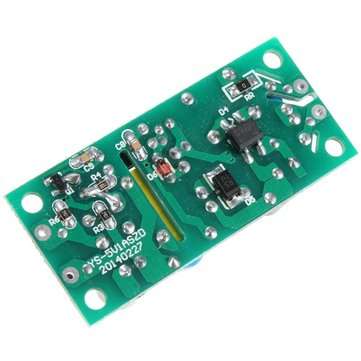

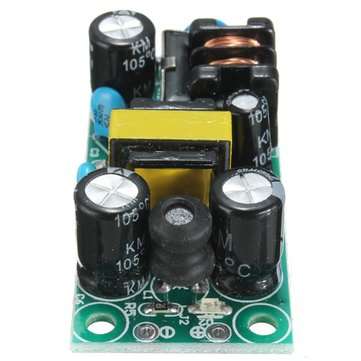

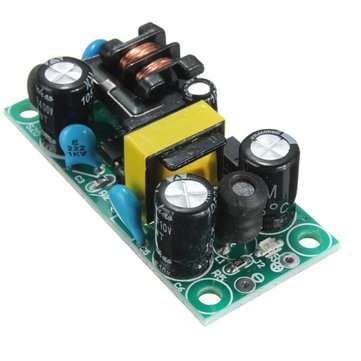

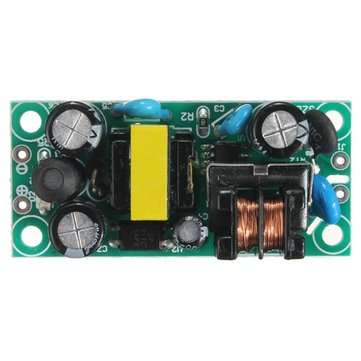

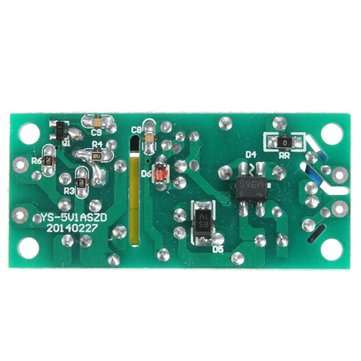

5V 1A AC-DC Power Supply Step Down Module Bare Board

Description:
? This Power Source For The Isolation Industrial-grade Built-in Power Supply Module, Temperature Protection, And Short Circuit Protection, AC85 - 265V Input Voltage, Wide 431 Precision Voltage Stability DC5V Output, With Mounting Holes, With Input And Output EMI Filter circuit
Feature:

Size: 5.1 x 2.4 x 2.0cm (L x W x H) Working Temperature: -20 - 60a?? Relative Humidity: 40 - 90%RH Input Voltage Range: 85- 265V Input Current: 0.054A(AC110V) 0.027A(AC220V) Input Inrush Current: 20A Output Voltage Range: 4.80-5.2V 0-1000mA Output Power: 0 - 5.5 W Output Efficiency: 80% Input Voltage of AC 85 - 265v 50/60 HZ Output Voltage DC5V (±0.2V) Output Current 1000MA Power: 5W ? Note:?
? The End of the Step Down Module Can Be Conductive, Do Not Touch The Bottom of Template when you Test or to Use, Need Mattress Insulator Pad, Clean Cardboard Conductive things, Avoid Power Board contact to conductive objects such as Wire, so as to Avoid Electric Shock And Burn Out The Power Supply Board

Package included:

1 x?5V 1A AC-DC Power Supply Step Down Module Bare board




,
