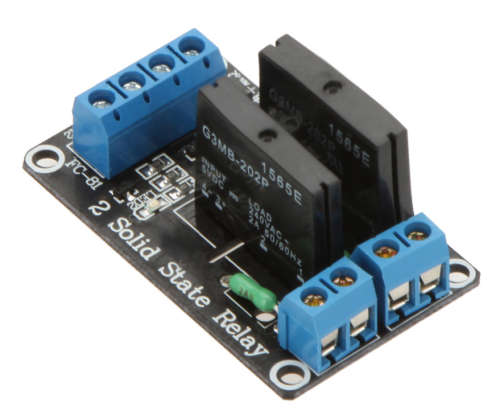

5V 2 Channel Low Level Trigger Solid State Relay SSR for Arduino ***LOCAL STOCK***

5V 2 Channel Low Level Trigger Solid State Relay SSR for Arduino ARM DSP PIC with Resistive Fuse

It is a 2-channel solid state relay board, which can be controlled directly by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc.

5V low level trigger solid state relay, output with resistive fuse (240V 2A).
It is a 2-channel solid state relay board, which can be controlled by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc.
Standard interface can be connected with microcontrollers.
With blue KF301 terminal, more convenient for control line.

Working Voltage: 5V DC (160mA)
Channel: 2 channel
Size: Approx.55 x 34 x 25mm
Weight: Approx.21g

Input control signal voltage:
(0-2.5V state low relay ON)
(3.3-5V state high relay OFF)
Voltage Current: 1-Channel 12.5mA / 2-Channel 22.5mA
Trigger Voltage:0-2.5V
Trigger Current:2mA
Quiescent Current:0mA

Module interface:
DC+: Connect to positive power source (by relay voltage power supply)
DC-: Connect to negative power source
CH1: 1 relay module signal to trigger the end (effective at low level)
CH2: 2-channel relay module signal to trigger the end (effective at low level)
Note:

Power must be DC voltage, and voltage must be consistent with the relay voltage.
