5V Arduino Pro Mini ATmega328P 16MHz (Compatible)
Sold

5V Arduino Pro Mini ATmega328P 16MHz (Compatible)

15 were available / new
R60.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
PRO-MINI-328-5
Bob Shop ID
199358662

5V ARDUINO PRO MINI ATMEGA328P 16MHz (COMPATIBLE)



Product information

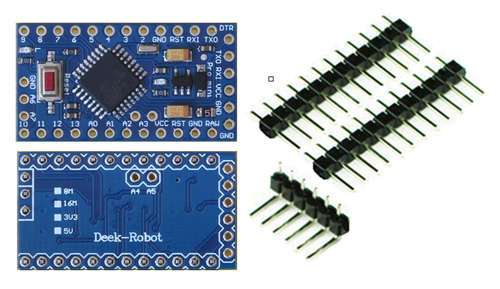

The Arduino Pro Mini is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini. There is a voltage regulator on board so it accepts voltages up to 12VDC. If you're supplying unregulated power to the board, be sure to connect it to the "RAW" pin and not the VCC pin. The included six pin header can be mounted to the board to provide USB power and communications via an external FTDI FT232RL USB to Serial adapter or equivalent.

32KB Flash Memory of which 2KB is used by bootloader
2KB SRAM
1KB EEPROM
Clock Speed 16MHz
4 channels of 10-bit ADC
6 PWM pins
14 Digital IOs
Hardware serial connections RX and TX
Support for external 5V - 12V DC power supply connected to RAW pin
Support 9V battery connected to RAW pin
Operating Voltage 5V through on-board regulator
Input Voltage 12V (max)
DC Current per I/O pin: 40 mA (max)

Specifications
Net weight: 5.5g

Package includes
1 x Arduino Pro Mini ATmega328P 5V 16MHz (Compatible)
3 x Pin Headers (not soldered as per picture)
