Technical Parameters Link: Click here to open
Features:
Product supports single channel capacity and internal resistance measurement
Support separate charging, separate discharging, up to 9 charging and discharging cycles in automatic mode
Stopping and discharging voltage is adjustable in 11 steps
Using DC two-wire method to test the internal resistance in English and Chinese can be switched
The maximum charge and discharge flow is about 1A
Parameters:
Power supply: DC5V or 18650 battery (self prepared)
Applicable batteries: batteries that meet the stopping discharge voltage of 2.5~3.5 V and 4.2 V charging are applicable
Power supply interface: Type-C , self provided power supply line
System language: Chinese (default), English
Test quantity: 1 circuit charge and discharge measurement (only the right battery)
Internal resistance measurement: Yes, DC two-wire method is used to measure the internal resistance
Charging function: support, automatic cut-off charging when fully charged
Discharge function: support, automatically stop when conditions are met
Automatic charging and discharging: Yes, the battery is fully charged at the end of automatic mode
Loop charging and discharging: supported, adjustable for 1~9 cycles
Status prompt: Supported
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V
3.3V, 3.4V and 3.5V are adjustable in 11 gears
Discharge current: two circuits of resistance, the maximum current is about 1A, which cannot be adjusted and does not support independent alteration
Charging voltage: controlled by special battery charging chip, the maximum charging voltage is about 1A, and the full charging voltage is 4.2V
Save in case of power failure: save only the setting parameters, not the metering data
Product weight: 80g (net weight) 120g (including package)

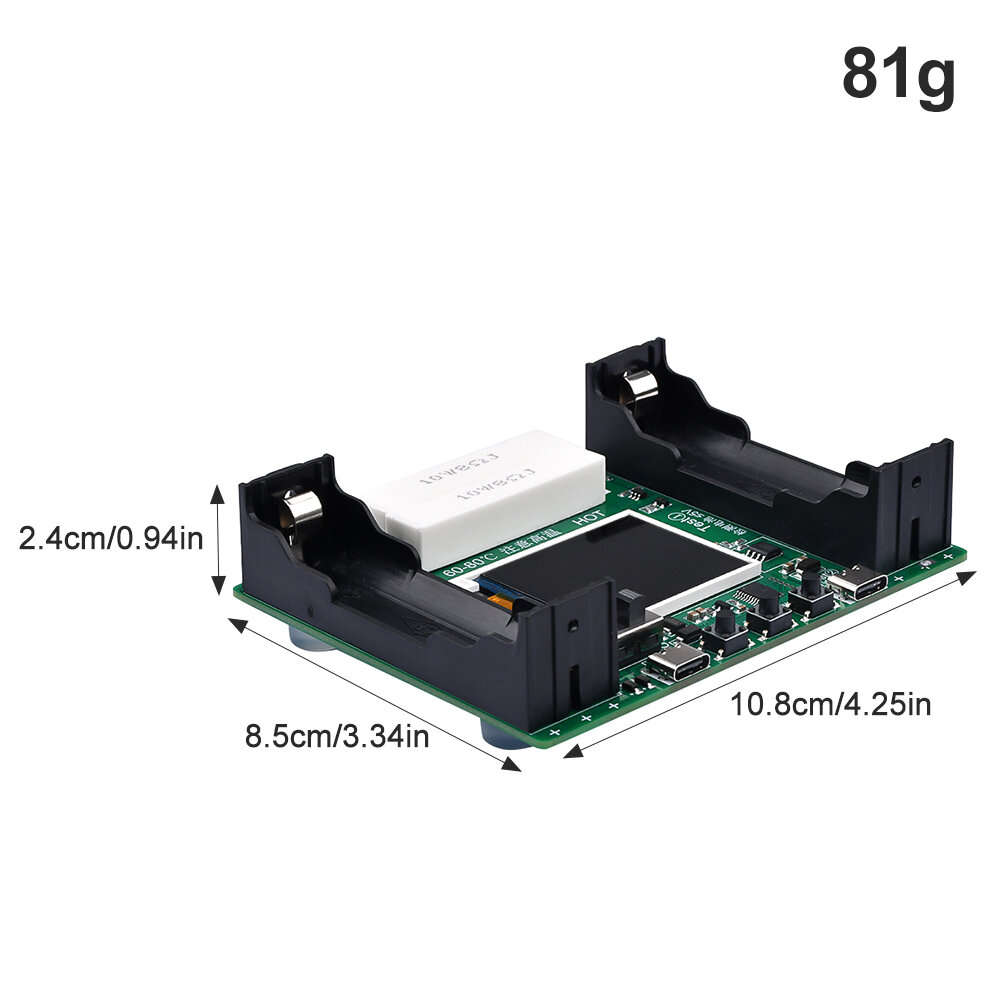

Product size: 110 × 88 × 30mm
Package size: 153 × one hundred × 42mm (corrugated box)
Note:
During use, charging and discharging process will generate local high temperature, please ensure that the use of the environment is open and uncovered, if you can increase the fan cooling is better.
In order to ensure that the battery clamps firmly, 18650 battery holder using compact battery holder for flat battery measurement!
Does not support lithium iron phosphate battery charging
Package Included:

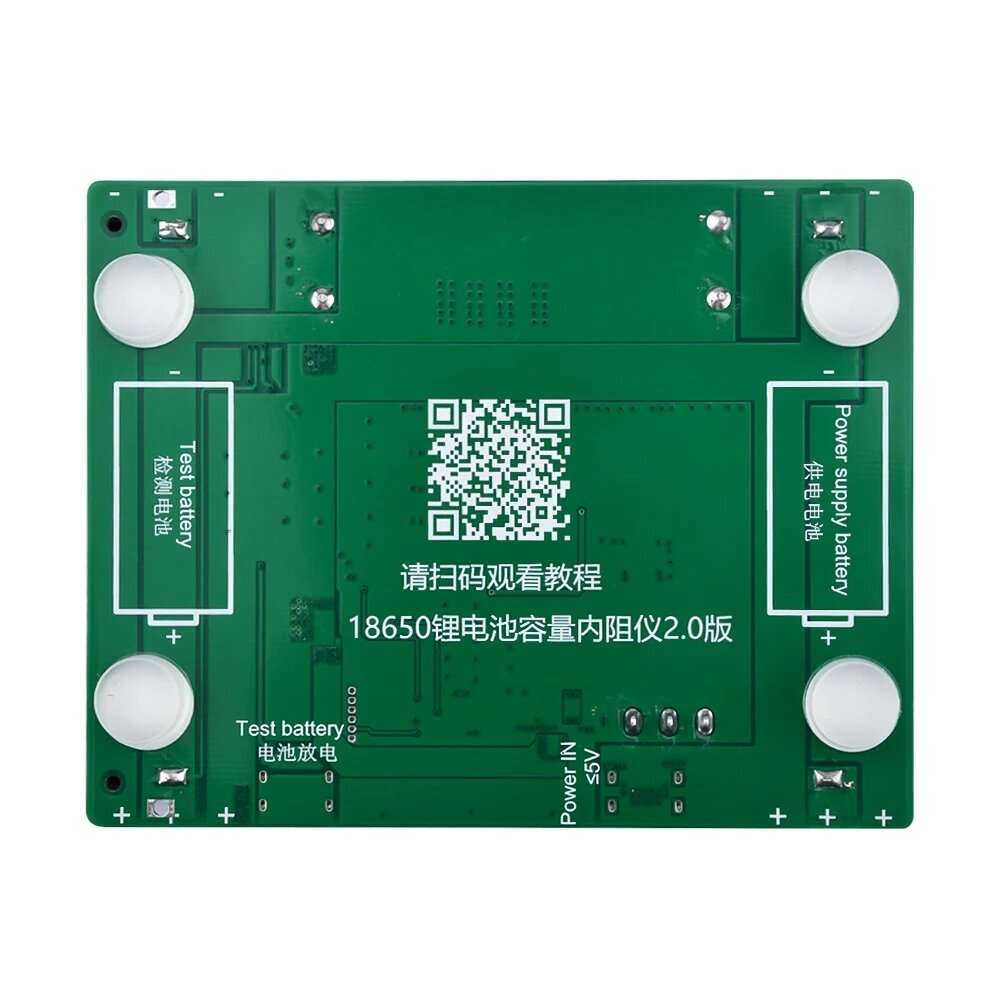

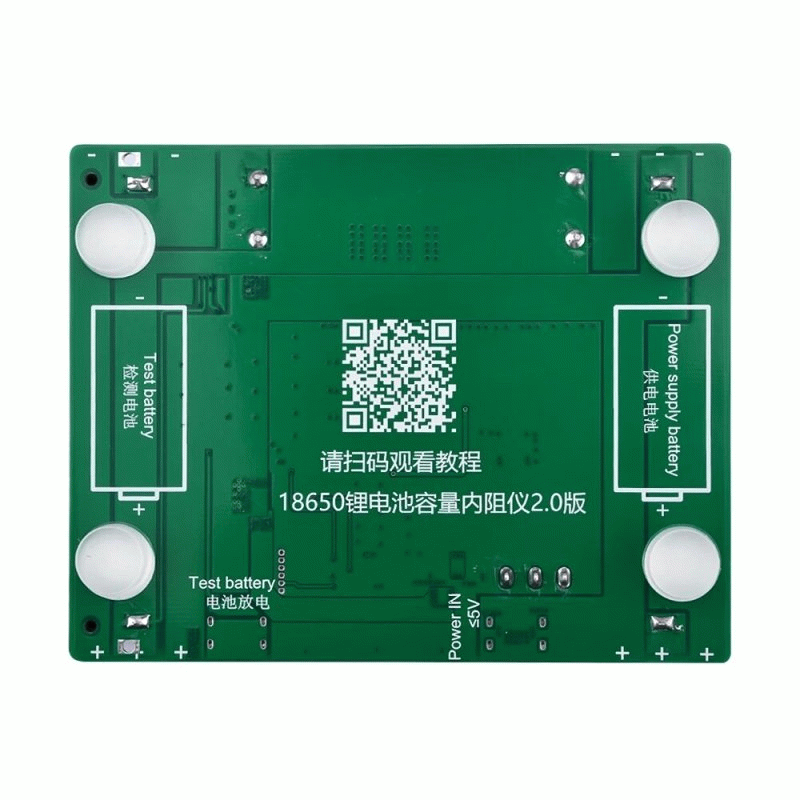

1 x 18650 Battery Capacity Internal Resistance Tester
