5V Time Relay Module Trigger OFF / ON Switch Cycle Timing Relay Board
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DIY0552
Bob Shop ID
601996466
About The Product

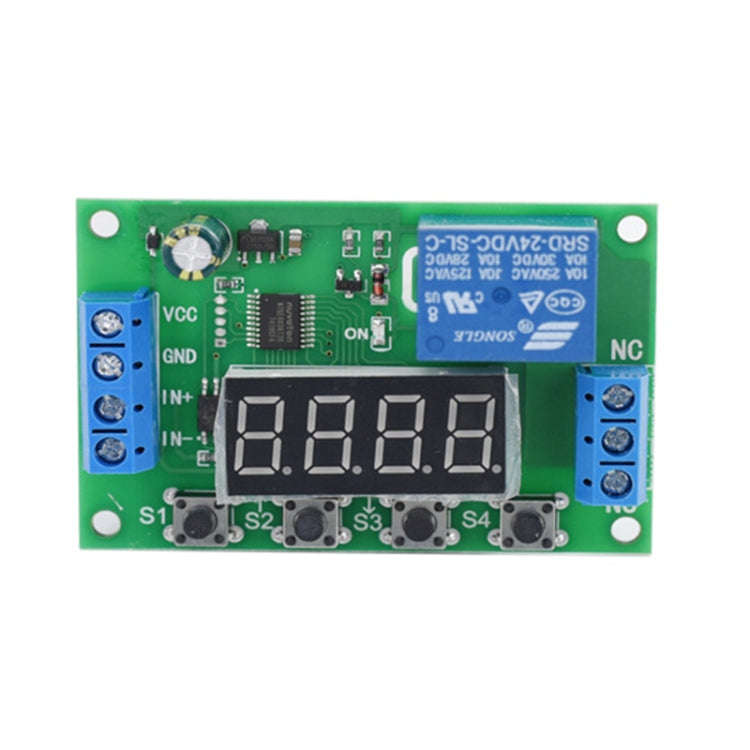

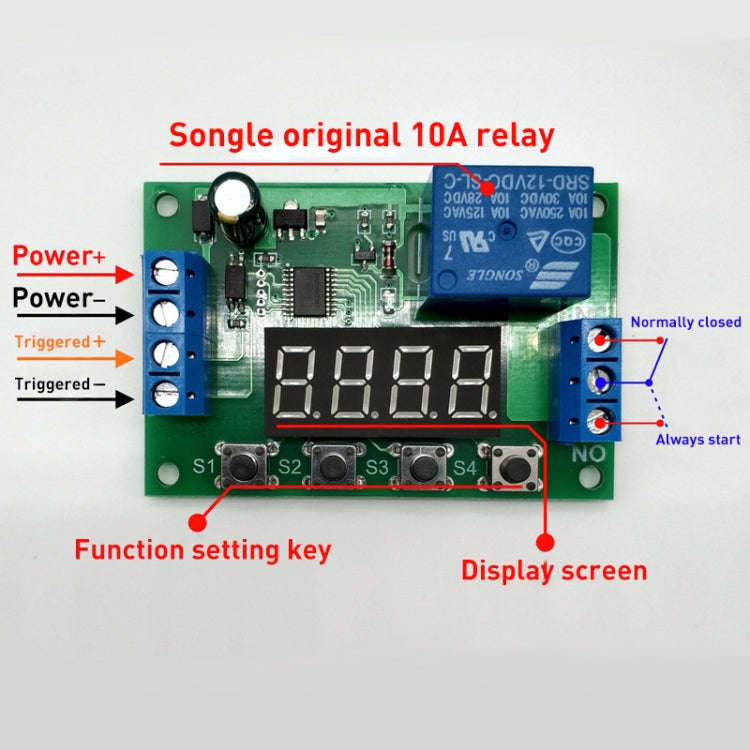

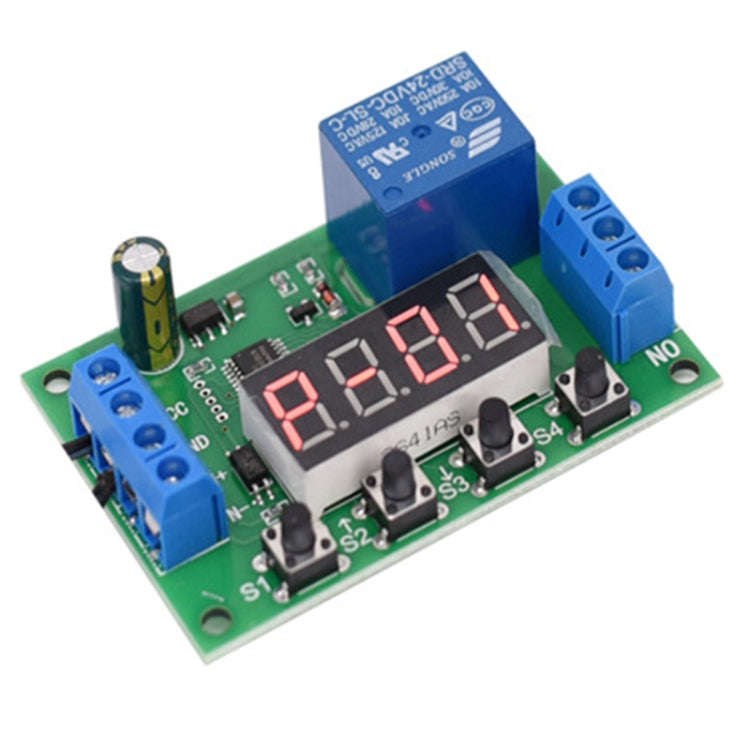

1. Multifunctional time relay module, a variety of working voltages are optional, DC5V
2. The output terminal is isolated from the circuit by a relay, which can control low-voltage electrical appliances and 220V lines, with a control capacity of up to 10A.
3. There are as many as 27 working modes to meet various testing and automatic control applications, and the delay time is adjustable from 0.01 seconds to 999 minutes.
4. The trigger port can be triggered by a voltage signal, or it can be triggered by a button.
Specifications
1. Supply voltage: DC 5V
2. Trigger terminal voltage: DC 5~30V (can also be triggered by button)
3. Relay control current: 10A

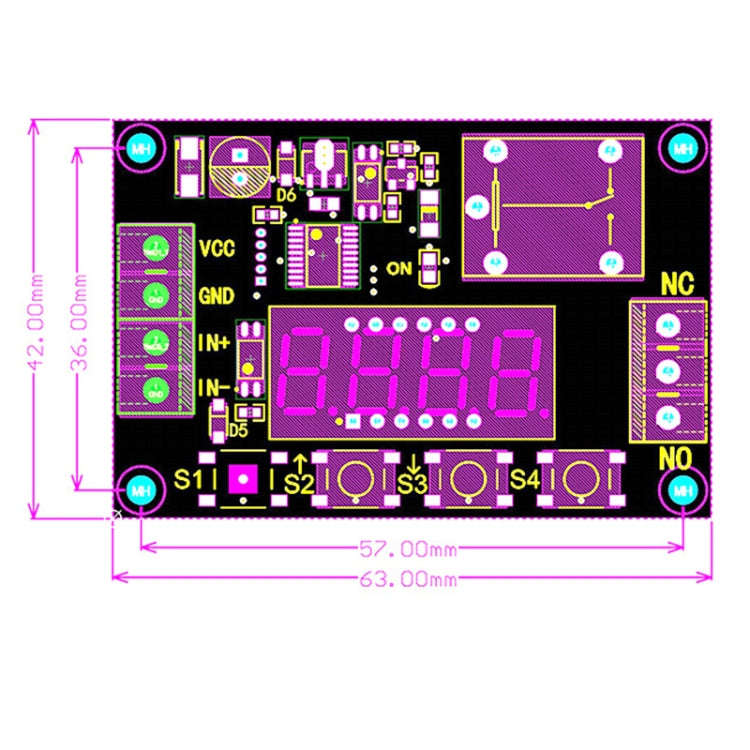

4. Module size: 63 x 42 x 20mm (length, width and height)
Specifications Set
1. Press and hold the S1 key and do not let go, after 0.5 seconds, the display will display P-xx, press S2 and S3 to change the working mode.
2. After selecting the working mode, short press the S1 key to enter the A time setting, and the screen displays Axxx. At this time, press the S2 and S3 keys to modify the A time parameters. Short press the S2 and S3 keys to add or subtract 1, and long press to quickly add or subtract. 10. Press the S4 key to set the position of the decimal point.
3. After setting the A time, press the S1 key to set the B time, and the screen displays bxxx. At this time, press the S2 and S3 keys to modify the B time parameters. Short press the S2 and S3 keys to add or subtract 1, and long press to quickly add or subtract. 10. Press the S4 key to set the position of the decimal point.
4. After setting the B time, press the S1 key for the last time to exit the setting state and save all parameters.
Point Position
1. Ax.xx decimal point is in the hundreds place, the time range is 0.01~9.99 seconds
2. Axx.x decimal point is in ten place, time range is 0.1~99.9 seconds
3. Axxx. The decimal point is in the one place, the time range is 1~999 seconds
4. Axxx has no decimal point, the time range is 1~999 minutes
5. Turn off the display: In the non-setting state, press the S4 key to turn off the display, and press it again to turn it on again.
1. Multifunctional time relay module, a variety of working voltages are optional, DC5V
2. The output terminal is isolated from the circuit by a relay, which can control low-voltage electrical appliances and 220V lines, with a control capacity of up to 10A.
3. There are as many as 27 working modes to meet various testing and automatic control applications, and the delay time is adjustable from 0.01 seconds to 999 minutes.
4. The trigger port can be triggered by a voltage signal, or it can be triggered by a button.
Specifications
1. Supply voltage: DC 5V
2. Trigger terminal voltage: DC 5~30V (can also be triggered by button)
3. Relay control current: 10A
4. Module size: 63 x 42 x 20mm (length, width and height)
Specifications Set
1. Press and hold the S1 key and do not let go, after 0.5 seconds, the display will display P-xx, press S2 and S3 to change the working mode.
2. After selecting the working mode, short press the S1 key to enter the A time setting, and the screen displays Axxx. At this time, press the S2 and S3 keys to modify the A time parameters. Short press the S2 and S3 keys to add or subtract 1, and long press to quickly add or subtract. 10. Press the S4 key to set the position of the decimal point.
3. After setting the A time, press the S1 key to set the B time, and the screen displays bxxx. At this time, press the S2 and S3 keys to modify the B time parameters. Short press the S2 and S3 keys to add or subtract 1, and long press to quickly add or subtract. 10. Press the S4 key to set the position of the decimal point.
4. After setting the B time, press the S1 key for the last time to exit the setting state and save all parameters.
Point Position
1. Ax.xx decimal point is in the hundreds place, the time range is 0.01~9.99 seconds
2. Axx.x decimal point is in ten place, time range is 0.1~99.9 seconds
3. Axxx. The decimal point is in the one place, the time range is 1~999 seconds
4. Axxx has no decimal point, the time range is 1~999 minutes
5. Turn off the display: In the non-setting state, press the S4 key to turn off the display, and press it again to turn it on again.
