5V UPS HAT (D) for Raspberry Pi for 21700 batteries

5V UPS HAT (D) for Raspberry Pi for 21700 batteries

3 available / new
Indicative market price: R712.32
Only 3 left – grab it before it’s gone!
R647.56
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3194
Bob Shop ID
630894852
Uninterruptible Power Supply For Raspberry Pi

Supports Charging And Power Output At The Same Time, With Dynamic Path Management, Stable 5V Output

Comes with online development resources and manual


Features At A Glance

The UPS HAT (D) is an uninterruptible power supply (UPS) expansion board specially designed for the Raspberry Pi series. Onboard switching Li battery charging chip with path management, boost converter chip, and voltage/current monitoring chip which can monitor the operating state of the batteries via the I2C interface.

  • Adopts pogo pins connector design, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.
  • Onboard Li battery charging chip, with dynamic path management, more stable power supply
  • Onboard boost converter chip for stable 5V power output
  • I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
  • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, more safe and stable
  • Onboard MCU management, supports detecting power connection and booting the Raspberry Pi
  • Supports displaying battery level on the system, easy to check the battery remaining capacity
  • Onboard LED indicators for monitoring the battery operating status
  • Comes with online development resources and manual
Specifications

OUTPUT VOLTAGE5V
CONTROL BUSI2C
BATTERY SUPPORT21700 Li battery × 2 (in parallel, NOT included)
CHARGER SUPPORT5V (Type-C port)
DIMENSIONS56 × 85mm
MOUNTING HOLE SIZE3.0mm

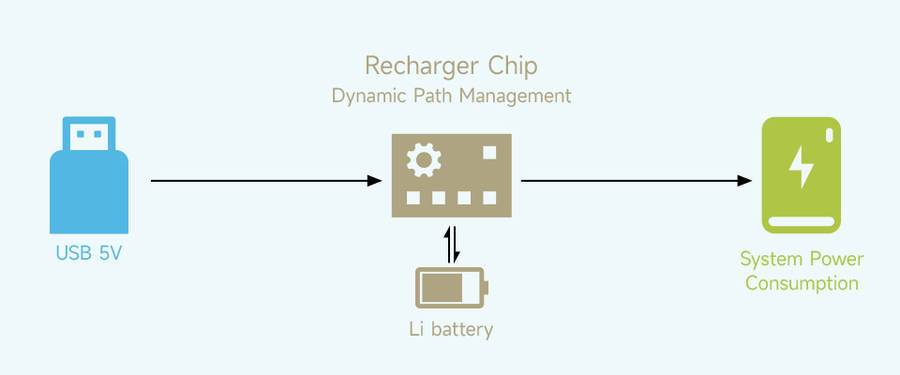

Dynamic Path Management, More Stable Power Supply
  • When connected to the external power supply, the system will be powered and the battery will be charged at the same time, and the battery will be disconnected after being fully charged to avoid battery life damaging caused by frequent charging and discharging
  • When the external power supply is insufficient, the battery will provide power output together with the external power supply at the same time to ensure system normal operation
  • When the external power supply is connected, the system will keep running normally even when the battery fails or is taken out. And automatically switch over to batteries output if the external power supply is unavailable, keeps the system running without any trouble

Supports 21700 Large Capacity Li Battery,
Longer Battery Life

Onboard Warning Indicators, Easy To Check If The Battery Is Connected Correctly

Pogo Pins Connector

Powering The Raspberry Pi Via Pogo Pins, Without Using Any GPIO Resource,
Compatible With Raspberry Pi 3 / 3B+ / 4B, Etc.

Real Time Monitoring

Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C

When the voltage dips too low, it is possible to save files properly and then shut down the system by software, to avoid any data loss

Supports Battery Level Display And
Detecting Power Connection

Easy To Check The Battery Status In Real-Time, And Automatically Shutdown When The Battery Level Is Low. Onboard MCU Chip For Detecting Power Connection And Automatically Rebooting The Raspberry Pi



Outline Dimensions





What's in the box?


1 x UPS HAT (D)
1 x Acrylic protection panel
1 x Screws pack

You might need to grab some 21700 batteries

Resources

Wiki: http://www.waveshare.com/wiki/UPS_HAT_(D)

Note: Stock is currently available in South Africa for national shipping!
