5W DC 9-12V COB Chip LED Light Source on Board 50x7mm for Wall Lamps Table La... (COLOR.: COLDWHITE)

SELECTED OPTION:
COLOR.: COLDWHITE

for more options in this item.

Specification:

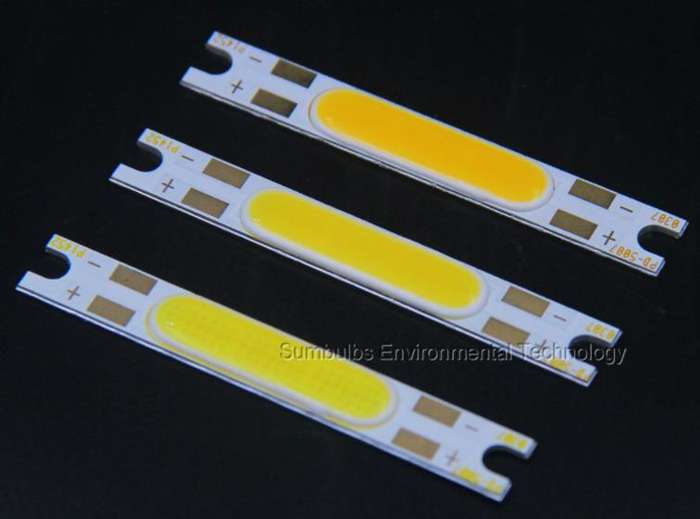

1. COB strip for DIY

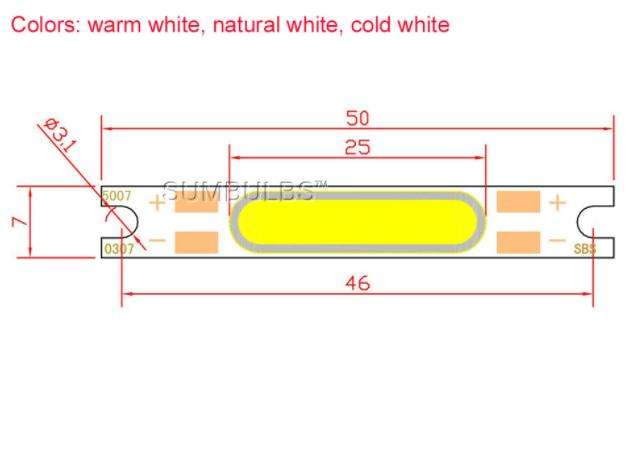

2. Size: 50*7mm
3. Lingting area: 25*6mm
4. Power: 5W
5. Voltage:DC 9-11V
6. Max current:500mA(5W),300mA(3W)
7. Color temperature: 2700K-6500K

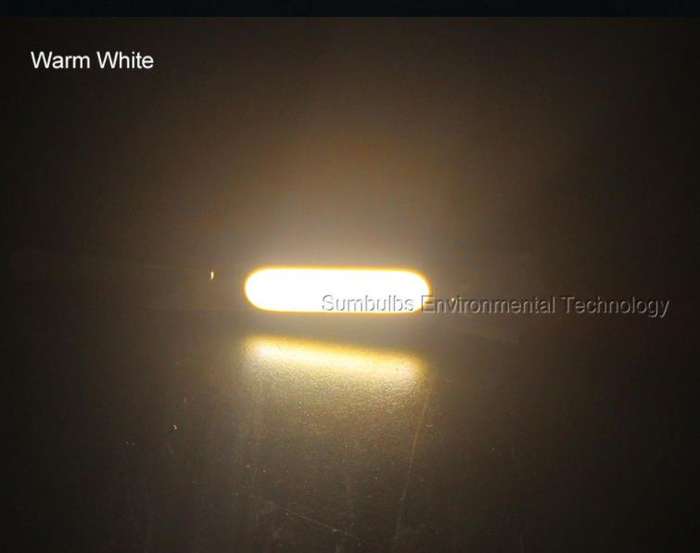

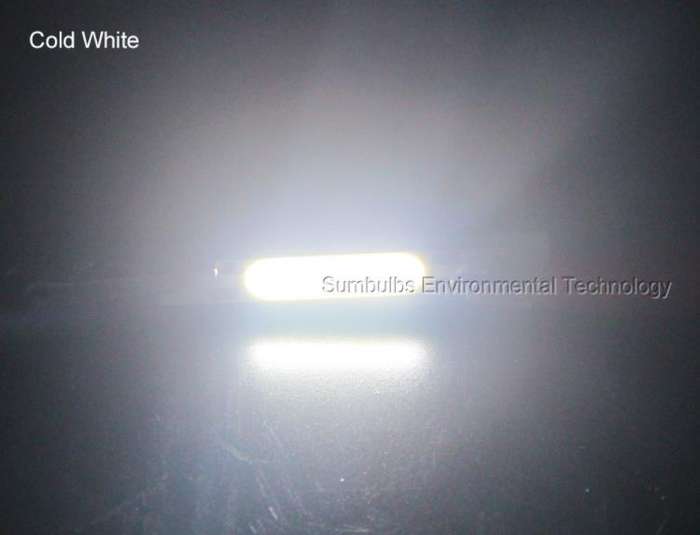

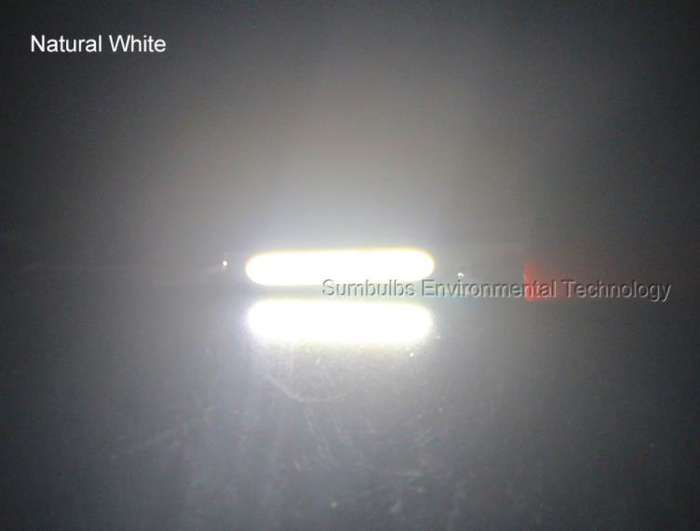

8. Lingt color: Warm white(2900-3100K/) Nature white(4000-4500K)/ Cool white(6000-6500K)
9. Low attenuation, 1000h attenuation<1%

Feature:
Super bright COB LED chips
Ultra long lasting design
Low power consumption, saving energy
Suit for back lighting, car light and others

Package Included:
1 x 5WCOB LED lamp

What is COB
COB (Chips on Board) is a new technology of LED packaging of LED light engine. Multi LED chips are packaged together as one light module. When it lights up, it looks like a lighting panel.

How COB LED light source works
In COB lighting, single LED chips are placed directly on a circuit board (or substrate) which has thermal properties to disperse heat. Heat dissipation is a very important aspect of LED lighting since it can have a major impact on the life expectancy of the luminary. Therefore, COB lighting can have a higher LED chip density and achieve higher light level while maintaining or improving life expectancy.

, , , , ,
