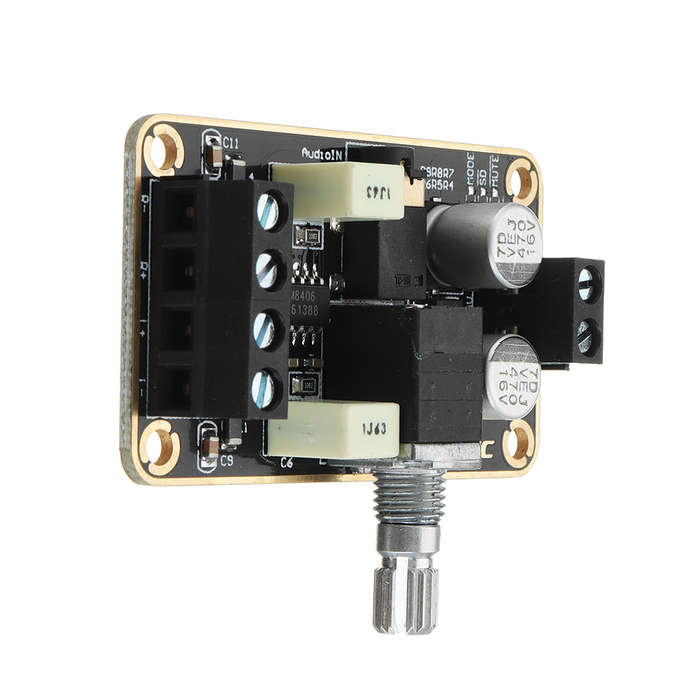

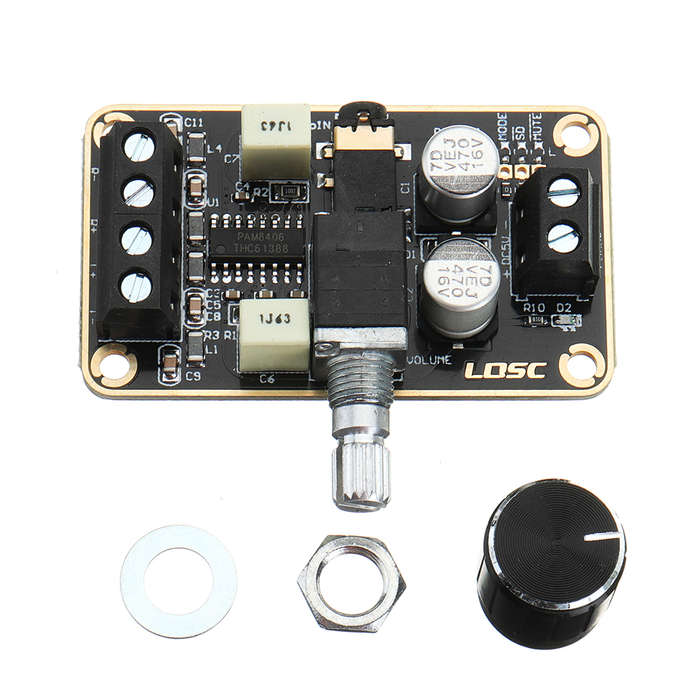

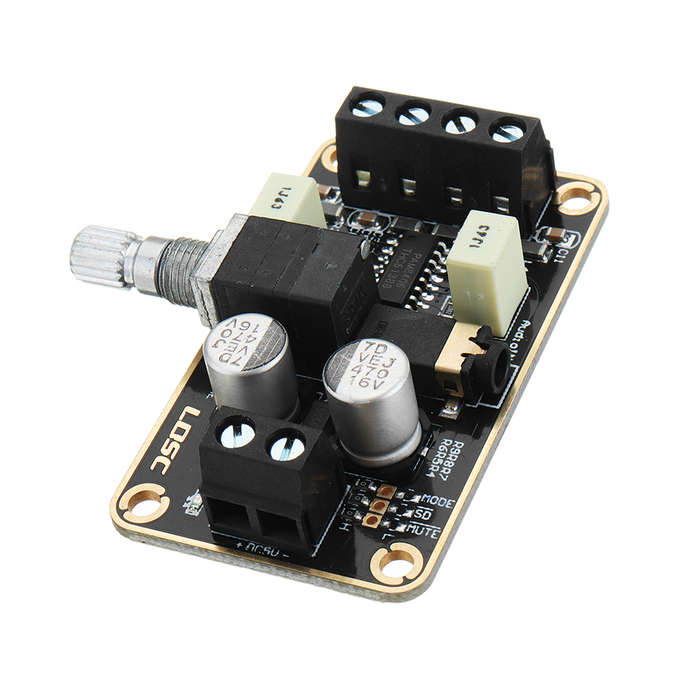

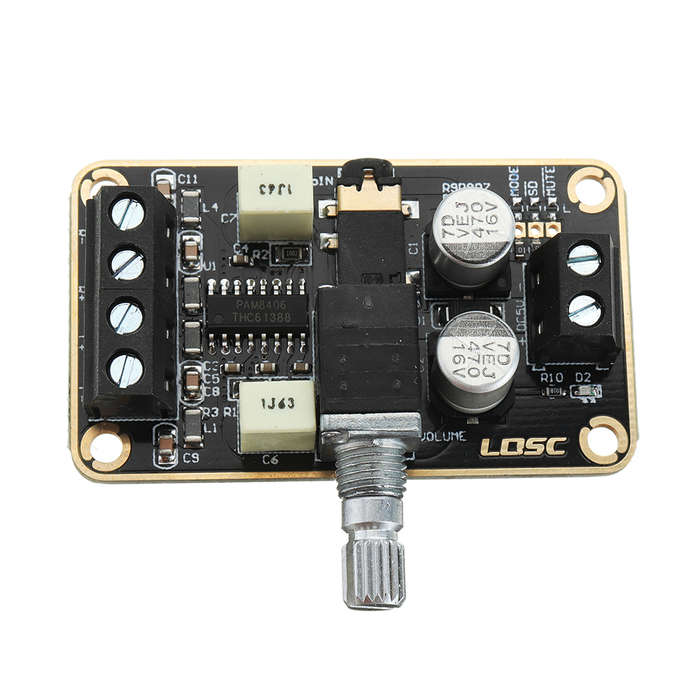

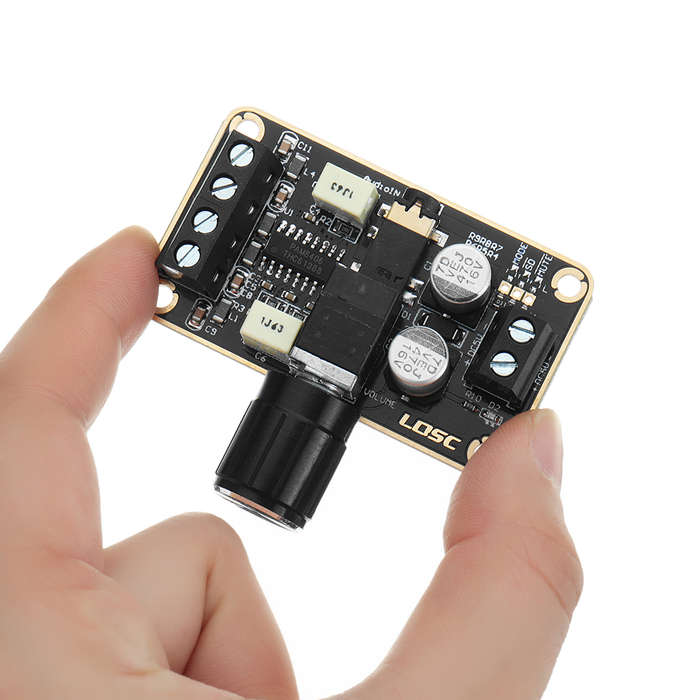

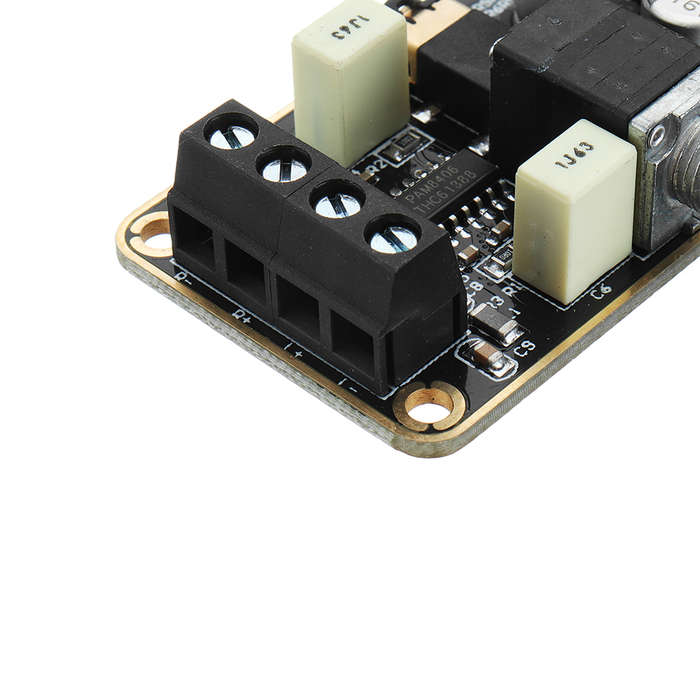

5Wx2 Stereo Dual Channel Digital Amplifier Board PAM8406 Audio Amplifier Module 5V Class D Amplifier

New

20 available

R462.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4014

92.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654088681

Features:

Supply voltage: DC 5V (Do not overvoltage, overvoltage will burn IC)
Input method: single-ended
Output power: 5W 2 5V /3W 4 5V /1.8W 8 5V
Whether APP is supported: No
Whether stage: HiFi
Channel: 2
Impedance: 2-8 Ohm

Performance:

Efficiency: >90%
Total Harmonic Distortion plus Noise: <10%
Low quiescent current
Noise suppression
Protection: reverse power supply input protection, short-circuit, overheat, pass EMI

Additional features:

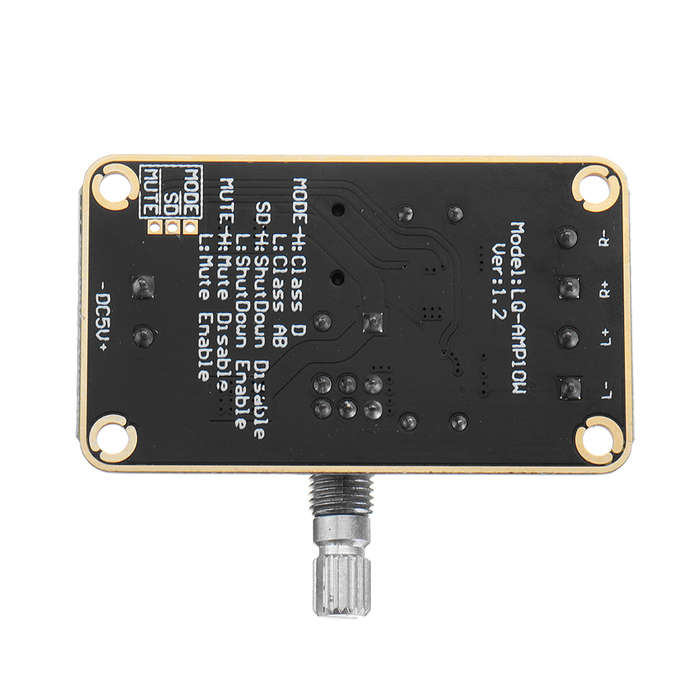

External power amplifier type selection function (MODE: high level Class D, low level Class AB, factory default high level)
External Shutdown (SD: Chip Shutdown at Low Level, Factory Default High Level)
Can be muted externally (MUTE: low-level mute, factory default high level)

Package included:

1 x 5Wx2 Stereo Dual Channel Digital Amplifier Board
