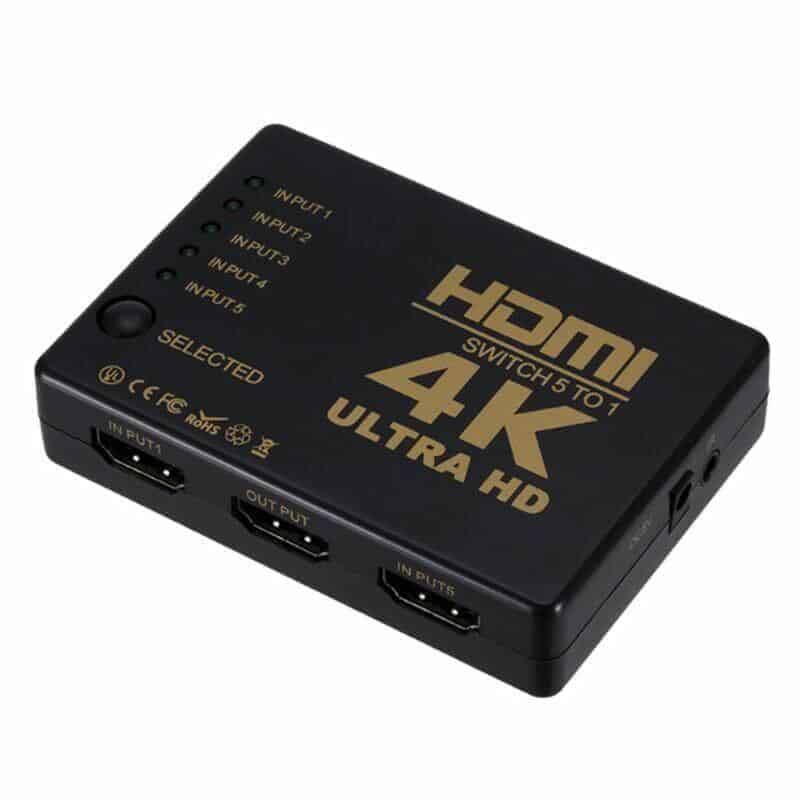

5x1 HDMI SWITCH, 4K Ultra HD, Remote, No External Power, 3D

Compact 5 Way HDMI Switcher with Remote Control | HDMI 5 Input /1 Output

Supports 3D and all resolutions up to 4K, Ultra HD (3840 x 2160) also known as 2160p.If you don't yet own a 4K TV, your next one probably will be. Be more future proof with this model which supports switching of all resolutions up to and including 4K-Ultra HD. The number of HDMI 4K capable devices are ever increasing do don't spoil your experience with a Full HD only device.

Xbox, PS4, Android TV Boxes, PC's & Blu-Ray players etc. all have the ability to output a 4K UHD signal.

Purpose / Use / Application:

• If you have more HDMI source devices than your TV, monitor or projector has input ports then this device will effectively add 4 more ports all capable of switching 4K.
• You can connect any number of HDMI input devices from 1 to 5. If you have 3 then you will be left with 2 spare inputs for future use.
• Remote Control- The unit has both manual and remote input selectors. The benefit of the remote control is that the switch itself and all the HDMI cables connected to it can be hidden from view. Only the IR RX eye need to have LOS (line of sight) with the remote control itself.
• Note: The IR remote is powered by a lithium button battery (CR2025) which is NOT included.

Important Note: Max HDMI cable lengths

• HDMI Output Cable Length:   15m max.
• HDMI Input Cable Length:       5m max (on all 5 inputs).

External Power Note:

Depending on the HDMI version of your connect devices this unit may NOT require external power (power 5VDC from HDMI connections). Upon complete connection of all devices press the 'Selection' button if the unit does not power ON and work then a power cable from USB source is included.

Specifications:

• Input video signal: 0.5-1.0 volts pp
• Input DDC signal : 5 volt pp (TTL)
• Input 1-5 supported: 480p, 576p, 720p, 1080i, 1080p, 2160p resolutions
• Video bandwidth: 300Mhz/ 10.2Ghz
• Field frequency: 60Hz- Bandwidth: 2.5Gpbs / 250MHz
• Power Consumption: 2W

What's in the Box?

• 1x HDMI switch 5 port
• 1x Remote Control (CR2025 battery NOT included)
• 1x IR RX eye and cable
• 1x USB Power Cable
