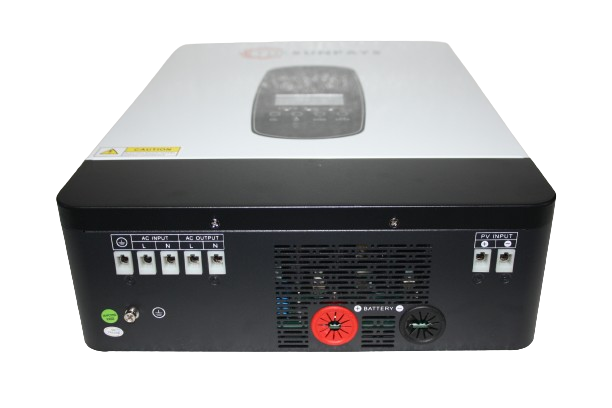

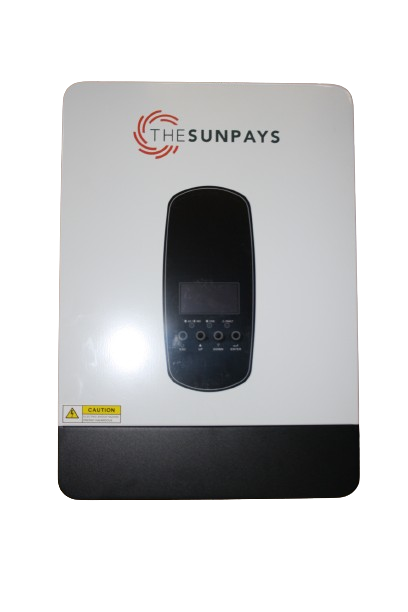

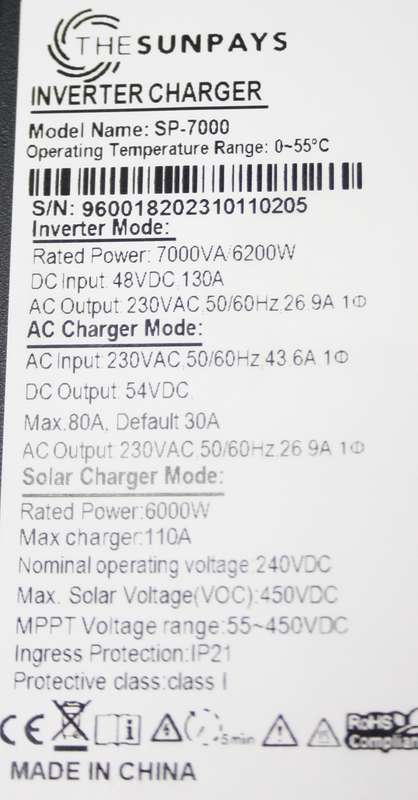

6.2 KW 7 KVA High Voltage, 48 V, Pure Sine wave Inverter, Stand alone ONLY

6.2 KW High Voltage, 48 V, Wifi compatible, Pure Sine wave Inverter, Stand alone ONLY.

IP Rating:

• IP21
• Not recommended for installation location with high humidity.
• If the inverter needs to be installed close to the ocean please make use of a dehumidifier.

Features:

• Programmable supply priority for PV, Battery or Grid.
• Wide PV input range 55 - 450 VDC.
• Stand alone unit, CANNOT be connected in parallel.

• Cold start function.

Max Watt Output:

• Continuous: 7 KVA / 6.2 kW
• Surge: (5 seconds) : 12.4 kW

Output and Charging Source Settings:

• Solar-Utility-Battery & Solar-Battery-Utility.

• Solar only: 110A (maximum).
• Grid only: up to 80A.

Solar input specifications:

• 55 - 450 Vdc solar input is the optimal working voltage range for these inverters.
• If operation without batteries is required, this input condition must be met.

Monitoring & Setting :

• LCD screen.
• Wi-Fi dongle (optional) monitoring system via phone app.


Expansion: Single Inverter

• PV Panels minimum: 450 Voc
• PV Panels maximum: 6 000W
• PV Panels connection : series only.
• Batteries minimum: 4 x 100Ah 12V / 48 V LiFePo4
• Peak Efficiency: 94%
• No Load Power Consumption: <50watt

Expansion: More Inverters

• Can ONLY be used as single inverter.

 Physical dimensions

• 423 x 290 x 105 mm
• 7.5 KG

What's in the box

• Inverter
• User manual

IMPORTANT: THE CORRECT SETTINGS ON THE INVERTER WILL AID IN ENSURING OPTIMAL BATTERY LIFE.

Warranty:

12 Months Warranty

Please take note of the full warranty terms and conditions.
