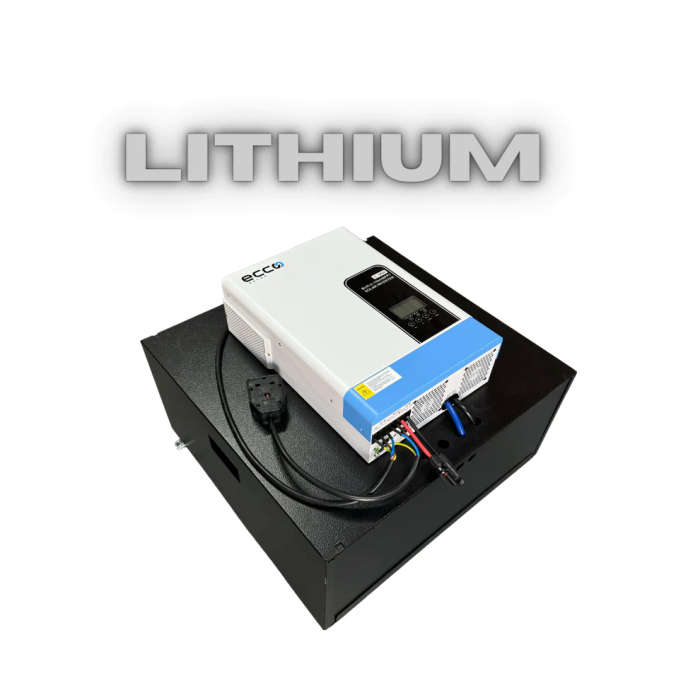

6.2KVA / 6200W ECCO Portable Plug And Play pOwer System + 1x 5.12kWh Lithium Battery / MPPT 120A
Description:
High-Performance Portable Power Solution Load Shedding & Off-Grid Ready
This all-in-one hybrid inverter system is designed for reliable backup power during load shedding or off-grid applications. It features a 6.2KVA (6200W) ECCO Hybrid Inverter and a 5.12kWh lithium batteries (5.12kwh total storage), ensuring a continuous power supply for essential household and office appliances.
The system is solar-ready, allowing easy integration with solar panels for extended energy independence. With its smart load management, remote monitoring capability, and lithium battery optimization, this system provides efficient energy storage and backup power for homes, businesses, and industrial applications.
Assembly Notice: Trolley assembly requires 2-3 hours before in store collection.
Key Features & Benefits:
Extended Power Backup Powers a 150W load (TV, WiFi, lights, etc.) for 85-95 hours on a full charge.
Pure Sine Wave Inverter Provides stable and safe power output for sensitive electronics.
Built-in 120A MPPT Solar Charge Controller Ensures 30% more charging efficiency compared to PWM controllers.
Dual Output for Smart Load Management Allows priority power distribution to essential devices.
Battery Activation via PV or Grid Power Compatible with LiFePO4 battery technology via RS485.
WiFi Remote Monitoring Enables real-time tracking of performance and power usage.
Parallel Expandability Supports multiple output priorities and can be scaled up.
Dust Protection & Cold Start Function Operates in harsh environments with detachable dust covers.
Works Without a Battery Can function directly from solar power if configured accordingly.
Battery Backup Performance:
- Powers essential loads (150W) for up to 40-45 hours on a full charge.
- Up to 20 times longer lifespan than lead-acid batteries.
- Lithium-Iron Phosphate (LiFePO4) chemistry ensures higher energy density and greater reliability.
- Built-in Battery Management System (BMS) Provides advanced protection against short circuits, overcharging, and overheating.
System Specifications:
Inverter Specifications (ECCO 6.2KVA Hybrid Inverter):
- Rated Power: 6200W (6.2KVA)
- Output Waveform: Pure Sine Wave
- Battery Compatibility: 48V Lithium/Lead Acid
- PV Input Voltage: 500V DC (Max)
- MPPT Charge Controller: 120A
- Operating Temperature Range: -10°C to 50°C
- Surge Protection: Yes
- Communication Ports: RS485, RS232, CAN
- Remote Monitoring: WiFi compatible (optional add-on)
Battery Specifications (ECCO 5.12kWh Lithium Battery 5.12kWh Total Capacity):
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Depth of Discharge (DOD): 100%
- Max Charging Voltage: 57.6V
- Max Continuous Output Power: 5500W
- Cycle Life: >5000 Cycles (15+ Years)
- Parallel Scalability: Supports up to 16 units
- Safety Features: Short circuit protection, overcharge protection, reverse connection prevention
- Ingress Protection Rating: IP54
Physical Specifications:
- Inverter Dimensions: 438mm x 312mm x 122mm
- Inverter Weight: 11kg
- Battery Dimensions: 480mm x 170mm x 500mm (each)
- Battery Weight: 49kg (each)
- Total System Weight: Approx. 60kg
- Trolley Size: 140cm x 60cm x 60cm
What's Included in the System?
1x 6.2KVA ECCO Hybrid Inverter
1x ECCO 5.12kWh Lithium-Ion Batteries (5.12kWh Total Storage)
1x Heavy-Duty Portable Steel Box with Lockable Wheels
1x Surge Plug (1m Power Cable, 2.5mm Cabtyre)
1x Double-Sided Female Plug Socket
1x Fuse & Disconnector (Battery to Inverter)
Battery Cables & Mounts
1x User Manual
Installation & Warranty:
- Installation Requirement: Must be installed by a certified electrical wireman or master electrician with a valid Department of Labour registration.
- Certificate of Compliance (COC): A COC is required post-installation to ensure compliance with SANS 10142 safety standards.
- Warranty Coverage:
- 5-Year Warranty on the inverter and batteries.
- Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional.
Get Reliable Backup Power Order Today!
This solar-ready, high-capacity backup system ensures continuous power for homes, businesses, and off-grid applications. With long-lasting lithium storage, smart energy management, and solar compatibility, it offers a cost-effective and eco-friendly power solution.
Order now and stay powered, no matter what!
