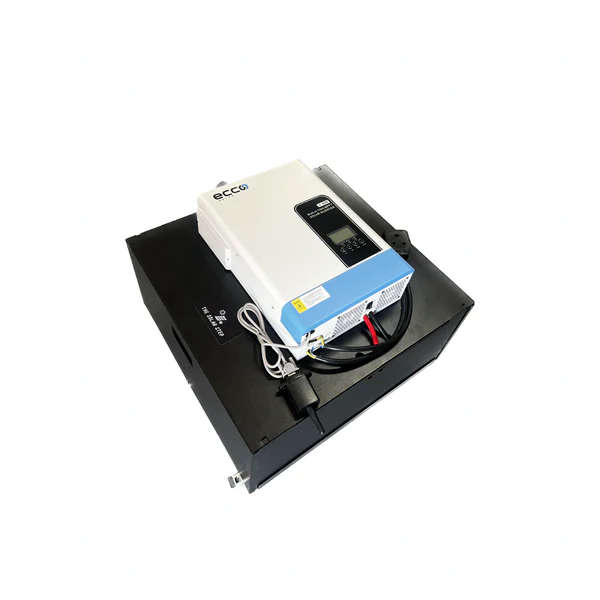

6.2KVA / 6200W ECCO Portable Plug And Play Power System + 4x 120AH Deep Cycle Gel Batteries / MPPT 120A
Description:
Reliable Backup Power for Load Shedding & Off-Grid Applications
This plug-and-play hybrid inverter system is designed for seamless backup power during load shedding and off-grid scenarios. It features a 6.2KVA (6200W) ECCO MPPT 120A Hybrid Inverter paired with four 120AH deep cycle gel batteries, ensuring stable power for essential household and office devices.
The system is solar-ready, allowing easy integration with solar panels for extended energy storage and cost-efficient, renewable energy usage.
Note: Not recommended to discharge deep cycle gel batteries to 100% Depth of Discharge (DOD) frequently, as it may reduce battery lifespan.
Key Features & Benefits:
Automatic Power Transfer Instantly switches to battery power during outages.
Pure Sine Wave Output Provides stable and clean power for sensitive electronics.
MPPT Solar Charge Controller (120A) Increases efficiency by 30% compared to PWM controllers.
Supports Smart Load Management Dual output allows priority load distribution.
Battery Activation by PV/Grid Optimized for LiFePO4 battery compatibility via RS485.
WiFi Remote Monitoring (Optional) Enables real-time tracking of system performance.
Works Without a Battery Can be powered directly via solar panels if configured.
Cold Start Function Allows the inverter to start up even when no external power is available.
Battery Backup Performance:
- Powers a 150W load (TV, WiFi, lights, etc.) for 18-20 hours on a full charge (100% Depth of Discharge).
- Deep Cycle Gel Batteries Designed for reliable performance and longevity.
- Smart Charging & Overload Protection Extends battery lifespan and prevents overcharging.
- Optimized Energy Usage Smart battery management for efficient power consumption.
System Specifications:
Inverter Specifications (ECCO 6.2KVA MPPT Hybrid Inverter):
- Rated Power: 6200W (6.2KVA)
- Battery Voltage: 48V
- Output Waveform: Pure Sine Wave
- MPPT Charge Controller: 120A
- PV Input Voltage: 500V DC (Max)
- Load Priority Options: UTL, SOL, SBU, SUB
- Protection Features: Overload, Short Circuit, Auto Restart
- Communication Ports: RS485 (Battery Communication), Optional WiFi
- Operating Temperature: -10°C to 50°C
- Dust Protection: Detachable dust cover
Battery Specifications (4x 120AH Deep Cycle Gel Batteries):
- Battery Type: Deep Cycle Gel
- Capacity: 120AH per battery
- Voltage: 12V per battery
- Total System Voltage: 48V (4x 12V batteries)
- Recommended Depth of Discharge (DOD): 50% for extended lifespan
- Optimized Charging Algorithm: Smart battery charger design
- Cycle Life: Lower than lithium but optimized for backup applications
Physical Specifications:
- Inverter Dimensions: 438mm x 312mm x 122mm
- Inverter Weight: 11kg
- Trolley Size: 60cm x 60cm x 45cm
- Total System Weight: Approx. 60-70kg
What's Included in the System?
1x 6.2KVA ECCO MPPT 120A Hybrid Inverter
4x 120AH Deep Cycle Gel Batteries (48V System)
1x Heavy-Duty Portable Steel Box with Lockable Wheels
1x Surge Plug (1m Power Cable, 2.5mm Cabtyre)
1x Double-Sided Female Plug Socket
1x Fuse & Disconnector (Battery to Inverter)
1x User Manual
Installation & Warranty:
- Installation Requirement: Must be installed by a qualified electrician to ensure optimal performance.
- Battery Charging Caution: Discharging deep cycle gel batteries to 100% DOD frequently is not recommended as it reduces lifespan.
- Warranty Coverage:
- 5-Year Warranty on the inverter.
- Battery warranty subject to manufacturer terms based on usage conditions.
Reliable Power Backup for Homes & Businesses Order Today!
This portable solar-ready power system ensures uninterrupted power supply, providing long-term savings and energy independence.
Order now and stay powered no matter what!
