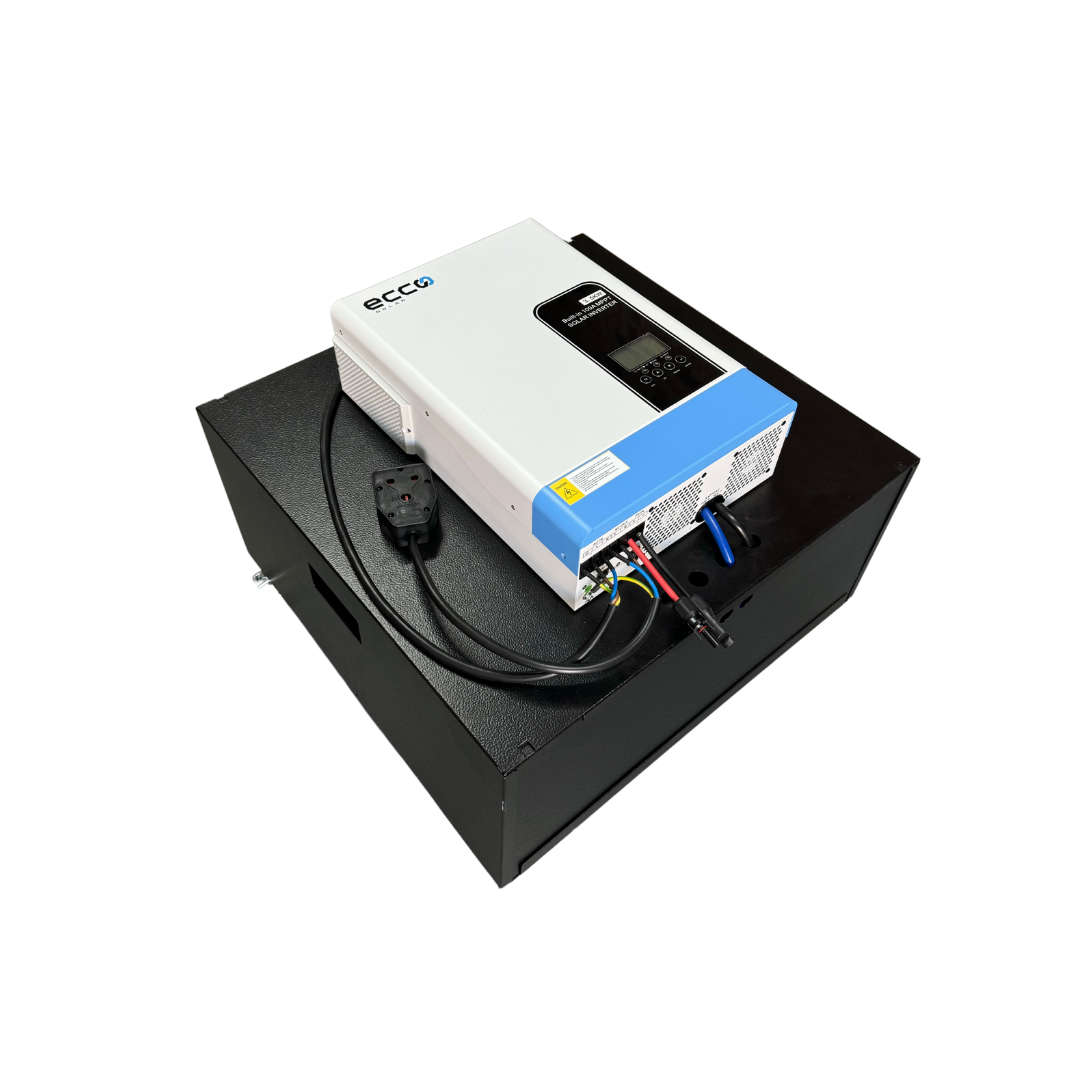

6.2KVA / 6200W Hybrid Portable Power System + 5.12kWh Lithium Battery (SOLAR READY)

6.2KVA / 6200W Hybrid Portable Power System + 5.12kWh Lithium Battery (SOLAR READY)

Description:

The all-in-one portable plug & play inverter battery system provides long-lasting power backup for homes, businesses, and off-grid applications. Designed for load shedding and renewable energy solutions, this heavy-duty power system is equipped with a 6.2kVA hybrid inverter and a 51.2V 106Ah lithium battery for high efficiency and extended power autonomy.

With solar-ready integration, users can add solar panels to maximize energy efficiency and reduce grid dependency. The lockable wheeled design ensures easy transport and hassle-free setup.

Key Features:

Reliable Backup Power & Efficiency

• Powers essential appliances (TV, Wi-Fi, lights, computers) for up to 45-50 hours (100% DOD) at 150W load
• Seamless transition to battery power during load shedding
• Auto-recharges when grid power returns
• Solar-ready: Add solar panels for off-grid functionality

Ecco Hybrid Inverter (6.2kVA / 6200W)

• Pure sine wave output for stable and efficient power
• Output Power Factor 1.0 for optimal energy conversion
• MPPT solar charge controller for maximum energy efficiency
• Overload & short circuit protection for system safety
• Cold start function for power restoration during outages
• Supports grid & solar charging priorities

Advanced MPPT Solar Charging Technology

• Maximum PV Array Power: 6,500W
• Max PV Open Circuit Voltage: 500VDC
• MPPT Operating Voltage Range: 60V 500VDC
• Max Solar Charge Current: 120A

Battery & Charging System

• Battery Communication: RS485
• Battery Voltage: 48V DC
• Floating Charge Voltage: 54V DC
• Overcharge Protection: 63V DC
• Charging Method: Constant Current / Constant Voltage (CC/CV)

ECCO 51.2V 106Ah Lithium Battery Wall-Mounted

• A-Grade LiFePO4 cells for high durability and reliability
• >4000 charge cycles at 80% depth of discharge (DOD)
• Built-in Battery Management System (BMS) for 7-layer protection
• Maintenance-free, lightweight, and eco-friendly
• Supports up to 16 parallel connections for increased capacity
• Wide operating temperature range (-20°C to 65°C discharge temperature)
• RS485, CAN communication for system monitoring

Technical Specifications:

Inverter Mode:

• Rated Power: 6200W
• Output Voltage: 230V, 50/60Hz
• Waveform: Pure Sine Wave
• Efficiency (Peak): 93%
• Transfer Time: 10ms (Computers) / 20ms (Appliances)

Solar Charging:

• Max PV Input Power: 6,500W
• MPPT Voltage Range: 60V 500VDC
• Max PV Open Circuit Voltage: 500VDC
• Max Solar Input Current: 27A
• Max Solar Charge Current: 120A

Battery Storage:

• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 51.2V
• Nominal Capacity: 106Ah
• Energy Density: 5427.2Wh
• Max Continuous Discharge Current: 100A
• Max Charge Voltage: 58.4V
• Cycle Life: >4000 cycles at 80% DOD

Physical & Connectivity:

• Ingress Protection: IP20
• Inverter Dimensions: 438 × 312 × 122mm
• Battery Dimensions: 566mm x 402mm x 135mm
• System Dimensions: 60cm x 60cm x 45cm
• System Weight: Approx. 65kg
• Communication Interface: RS485 (RJ45) / RS232 (DB9)

System Components:

• 1x Ecco 6.2kVA Hybrid Inverter (6200W) Pure Sine Wave
• 1x ECCO 51.2V 106Ah Lithium Battery
• 1x Heavy-Duty Portable Steel Box (Lockable Wheels & Handles)
• 1x Surge Plug (1m, 2.5mm cabtyre)
• 1x Double-Sided Female Plug Socket
• 1x Fuse + Disconnector (Battery to Inverter)

Battery Care & Maintenance

• Keep the system plugged in to maintain battery charge
• Avoid deep discharges to extend battery lifespan
• Use solar charging to reduce grid dependence and maximize efficiency

Warranty & Installation Requirements

• 5-Year Warranty on Lithium Battery & Inverter
• Installation must be performed by a qualified electrician
• A valid Certificate of Compliance (COC) must be issued after installation
• System must be installed in compliance with SANS 10142 regulations
